Mono Out Page; Tape/Ifb Out Page; Headphone-2 Page; Figure 2-14 Mono Out Page - Zaxcom Nomad User Manual

Zaxcom Nomad User's Manual_____________________________________________________Chapter 2

Mono Out page

Page purpose:
How to get here:
(BUS key  Mono Out button)

Tape/IFB Out page

Page purpose:
also sends audio to the IFB feed in the ZaxNet transmitter.
How to get here:
(BUS key  Tape Out button)

Headphone-2 page

Page purpose:
connector.
How to get here:
(BUS key  Headphone 2 button)
This page provides control of the source(s) sent to the second headphone output connecter, to include the
separation of channels between left, right or both headphone cups. It can also be used as a separate unbalanced
This page controls which audio busses are routed to the Mono out connector.
This page controls which audio busses are routed to the Tape out connector. In addition, this bus
This page controls which audio busses are routed to the Headphone-2 (i.e., Boom Operator)

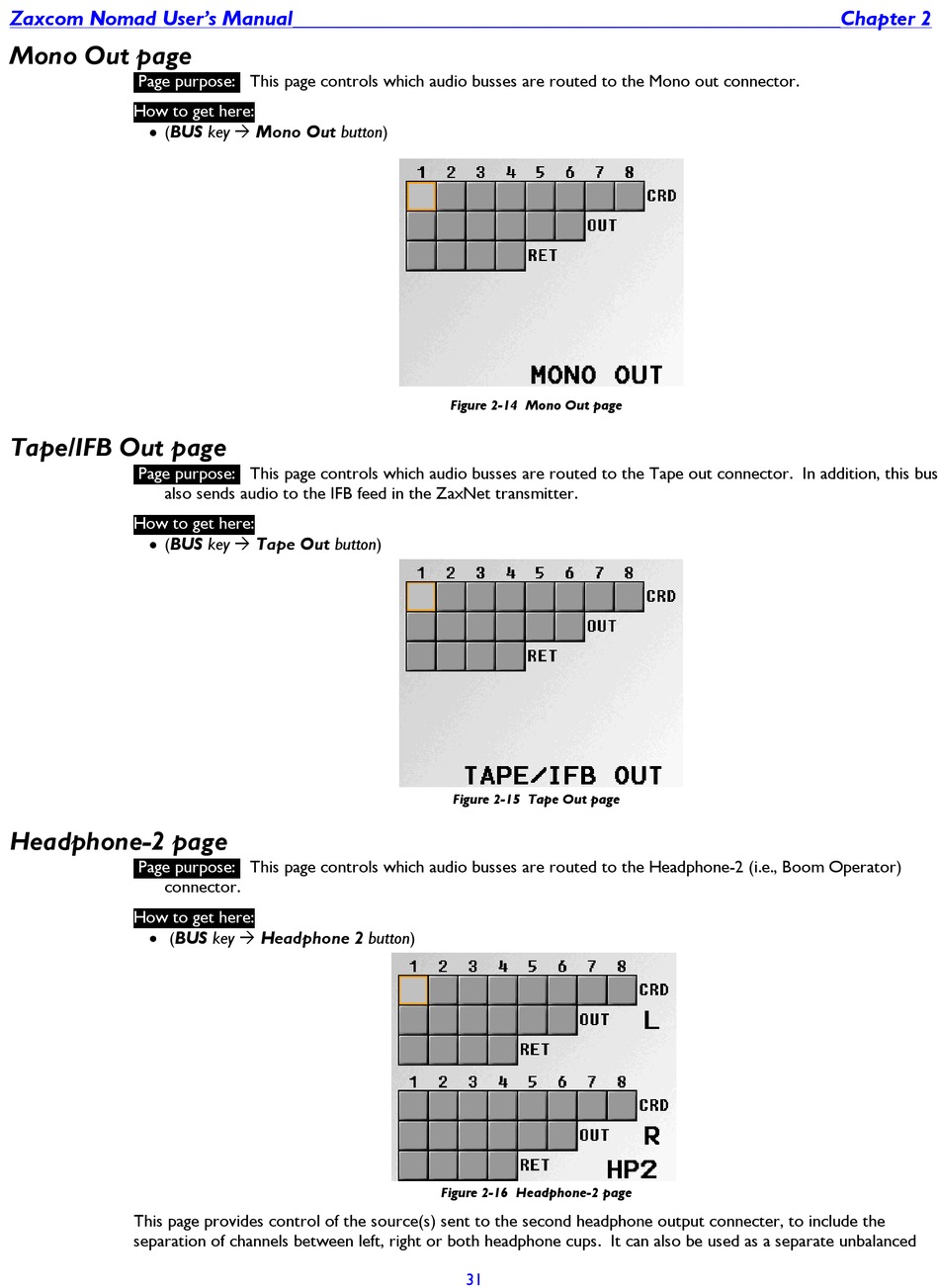

Figure 2-14 Mono Out page

Figure 2-15 Tape Out page

Figure 2-16 Headphone-2 page
