Auto-trim Channel Meter

(Figure 2-2
Auto-trim eliminates the need for a separate hardware trim knob for each analog input. Auto-trim mode can be
enabled in
While it is enabled and a fader is "touched", two things come into play:
the blue LED next to the fader illuminates to indicate the active channel for Auto-trim.
the MENU knob functions as the input trim for the channel. Turning the MENU knob adjusts the trim level for
that input and indicates it with a trim indicator (white diamond outline) displayed in the meter.
NOTE: Although you might think the trim indicator's position relates to a specific value, it does not. It is used
for relative adjustment only.
While Auto-trim is not enabled, use the TRIM parameter in the

Home Page Configurations

(Figure 2-3
There are eight different Home page configurations. You can quickly cycle through all of them by pressing the
STAR key. It is possible to store two of them for quick access.

Store/Recall a Home page Configurations

To store a configuration under the COM key, press and hold the MENU knob, and press the COM key. Every
time you press the COM key, the next configuration in sequence is displayed. When you are happy with the
configuration being displayed, release the MENU knob. If you have selected another configuration and want to
return to the COM key setting, press the MENU knob and COM key together.
The same process can be used to store one configuration under the SLT key.

Alternate Home page Configurations

Each press of the STAR key changes the default Home page configuration in the following sequence:
{p.29}. While in the ENG Home page configuration, press the BUS key twice to enter the Bus
{p.23} displays INPUT 1)
Mode page {p.46}.
{p.25})
ENG Home page (Default View)
Card Track Home page
(Alt View #6)
Output Bus Home page
(Alt View #4)
(Alt View #7)

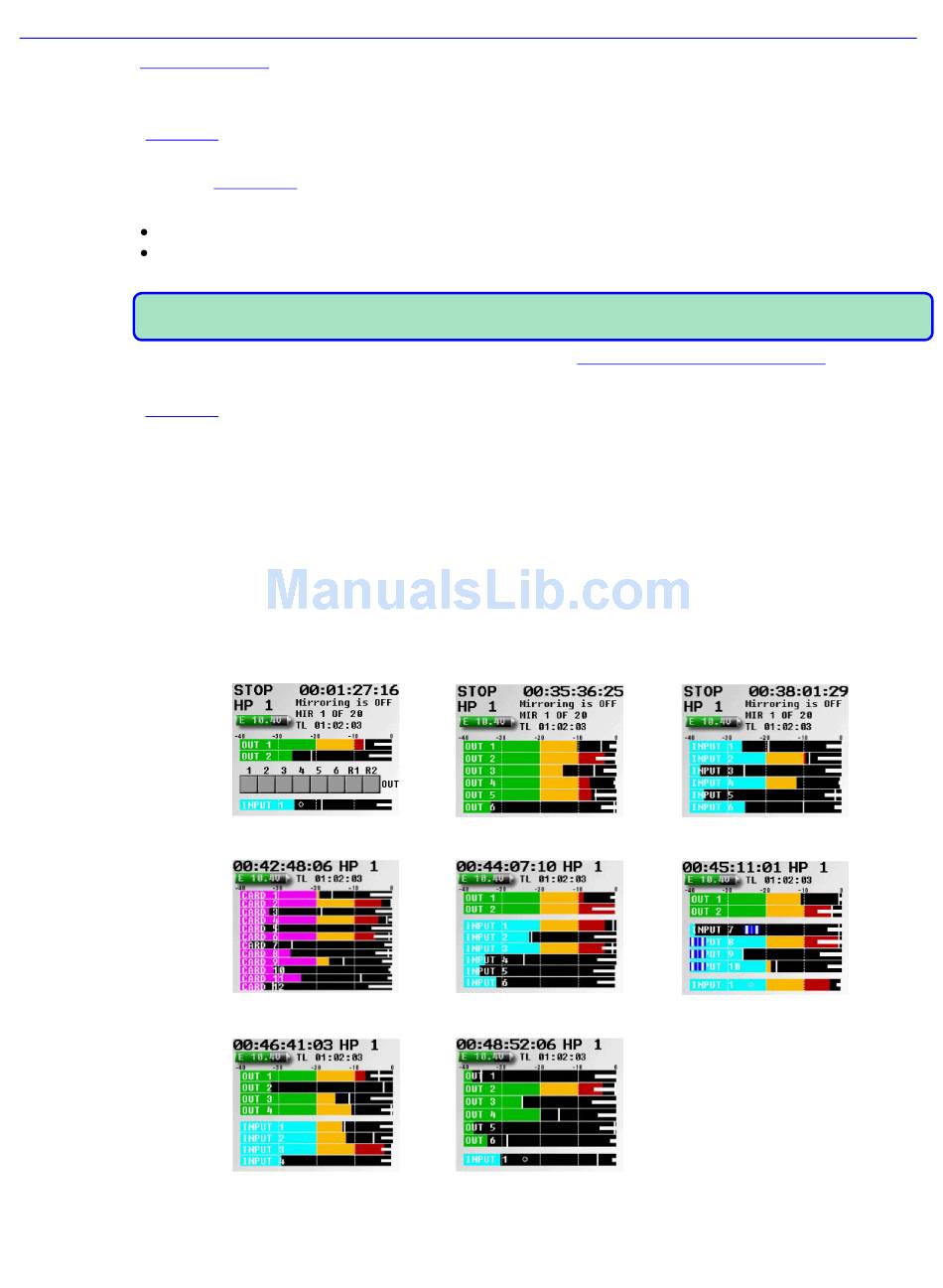

Figure 2-3 Available Home page Configurations

25
Analog Input Channel Setup page
6-Channel Mix Home page
Virtual Fader Mix Home page
{p.35}.
