Input Configure page

Page purpose:
How to get here:
( MENU knob once  Mode button  Input Configure button)
The factory default is set up so that Nomad can handle one pair of AES inputs. If more than one pair of AES inputs
is required, then the Input configuration must be changed in order to make the AES additional resources available.
This page is used to select between AES inputs and other Nomad resources. Put simply, for Nomad's processors
to handle the additional AES channels, other sources may need to be deactivated. Eight selections are provided to
give you various options of AES inputs, tape return 3/4 and analog input 5/6. You can choose which option works
best for you. A factory reset has no effect on this page.

ENG Setup page

Page purpose:
How to get here:
(MENU knob once  ENG Setup button)
This page is designed to configure the device for your specific application. This page sets the input and output
levels as well as other ENG parameters.

Transport Keys parameter

The two possibilities are:
SHIFTED: pressing the TC key, A-MIX key or ZNET key immediately displays the page associated with those
keys. To go into Record mode, Playback mode or Stop mode, it is necessary to press the MENU knob / SHIFT
key while pressing the REC key, PLAY key or STOP key to change the Transport mode.
NOTE: it is still possible to directly access the transport functions by pressing the appropriate key for 1 second.
UNSHIFTED: pressing the REC key, PLAY key or STOP key immediately puts the unit into Record mode,
Playback mode or Stop mode, as appropriate. To display the pages associated with the
{p.26}, Auto-mix page and
while pressing the TC key, A-MIX key and ZNET key.
NOTE: Auto-mix is a work in progress and is not currently available.
This page configures which inputs are available.

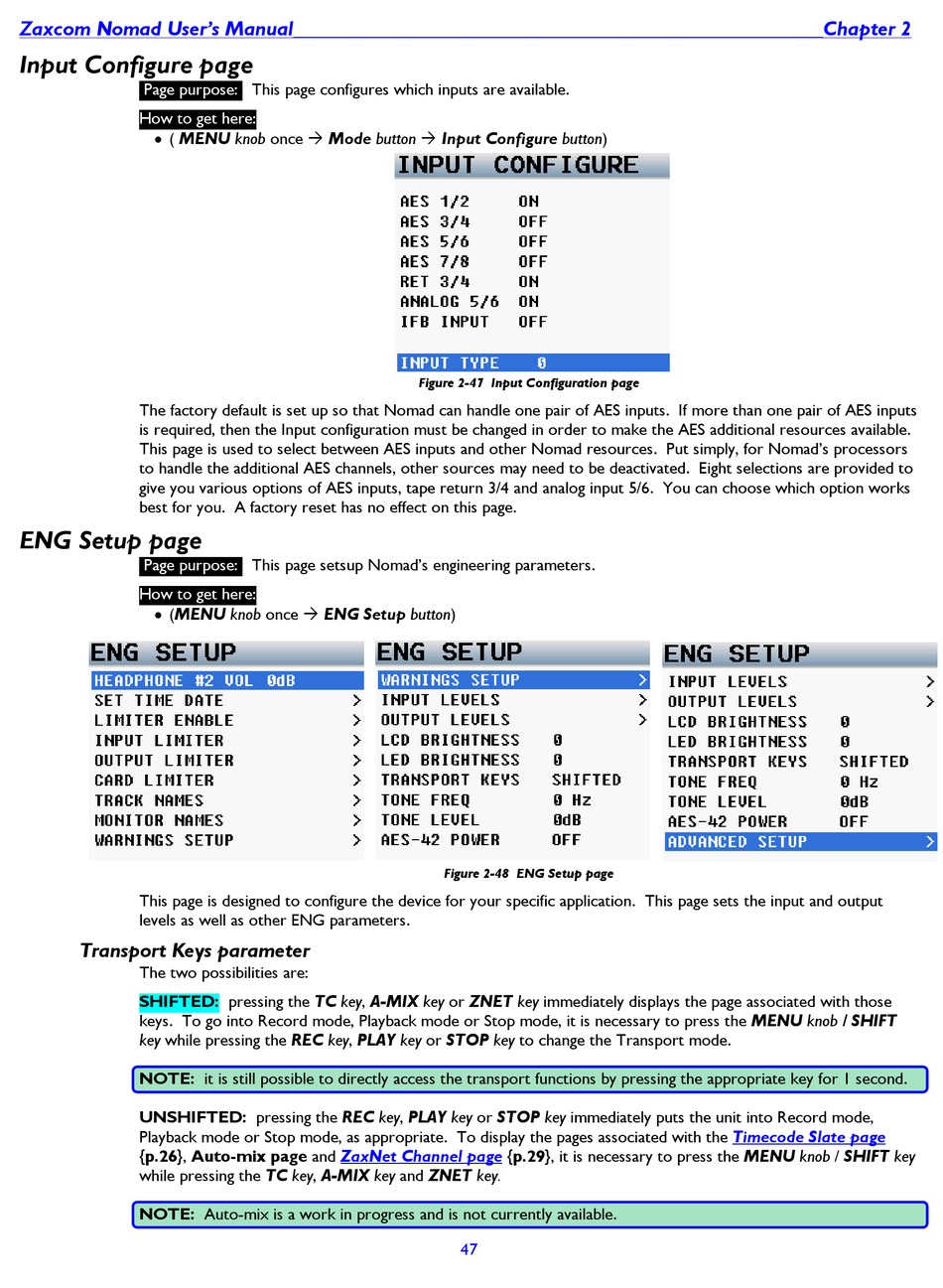

Figure 2-47 Input Configuration page

This page setsup Nomad's engineering parameters.
ZaxNet Channel page
Figure 2-48 ENG Setup page
{p.29}, it is necessary to press the MENU knob / SHIFT key
