Zaxcom Nomad User's Manual_____________________________________________________Chapter 2

Playback Control page

Page purpose:
How to get here:
(MENU knob once  Playback Control button)
(PLAY key)

Record Enables page

Page purpose:
How to get here:
(MENU knob once  Record Enables button)
This page enables which tracks will be recorded on each media. In the example above, 12 tracks are being
recorded to the primary media.
NOTE: while the sample-rate is set to 88.2 kHz or 96 kHz, only 8 primary tracks can be selected and recorded.
NOTE: while in Record mode, the record enable buttons cannot be changed.
NOTE: it is not necessary to remove record enable crosspoints from the Mirror card. If the Primary card is not
recording a track, it will NOT be written to the Mirror card.
This page controls which Take will be played back and where in the Take playback will begin.

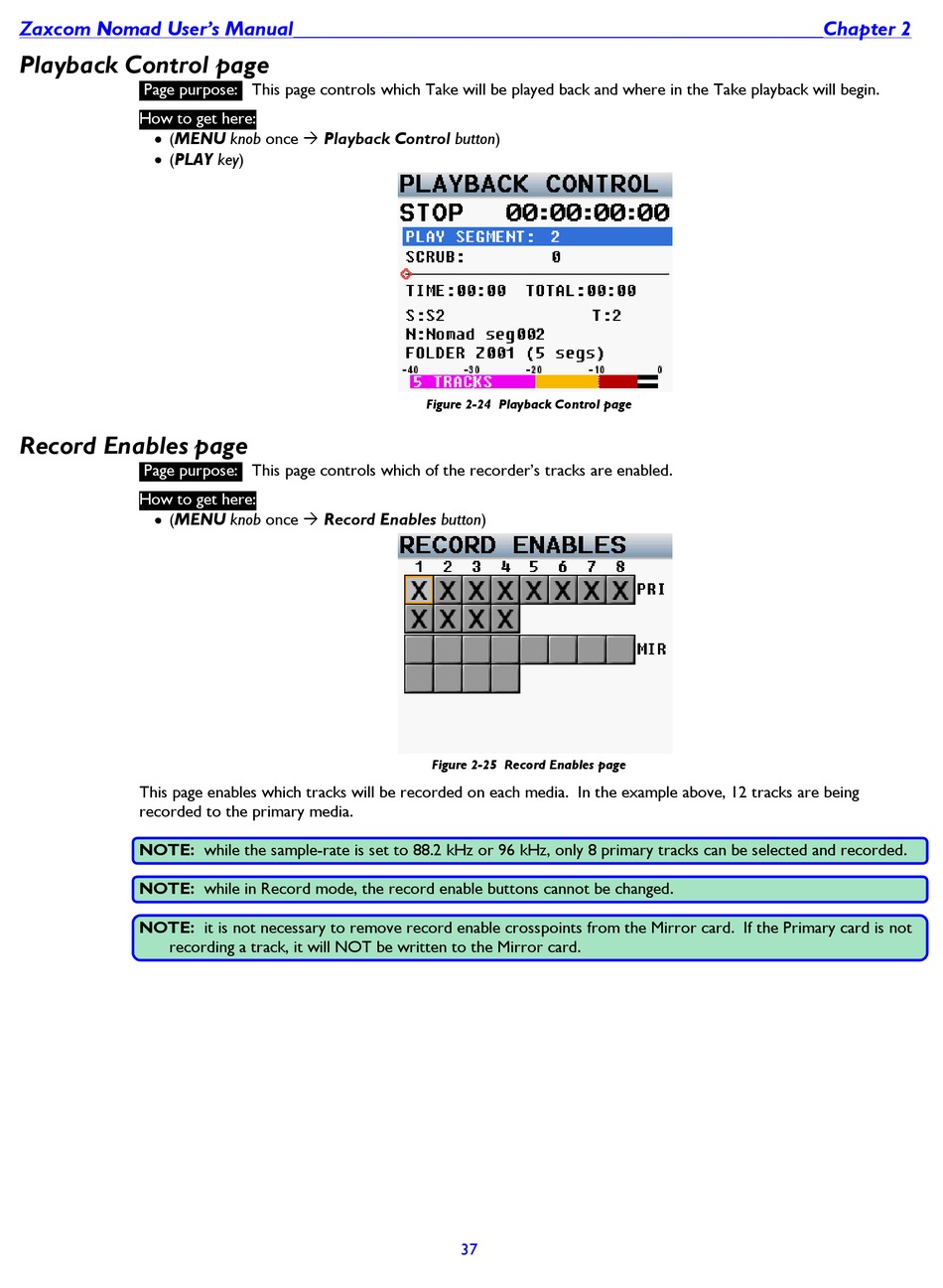

Figure 2-24 Playback Control page

This page controls which of the recorder's tracks are enabled.

Figure 2-25 Record Enables page

37
