Mode page

Page purpose:
How to get here:
(MENU knob once  Mode button)
This page maintains some of Nomad's operating parameters. Pan routing enables and selects which pair of outputs
will be assigned to the two channel ENG pan routing feature. This mode would most likely be used when sending
two channels of audio to be recorded directly to camera. When selected, each pan pair will act as a left/right
output pair. Example: if PAN 3/4 is enabled, output bus 3 will be the left out and output bus 4 will be the right
out.

Sample-rate page

Page purpose:
How to get here:
(MENU knob once  Mode button  Sample Rate button)
Available sample-rates: 44100, 47952, 48000, 48048, 88200, 96000
This page contains settings that change the global behavior of the Nomad.
This page sets the sampling-rate used to record audio.

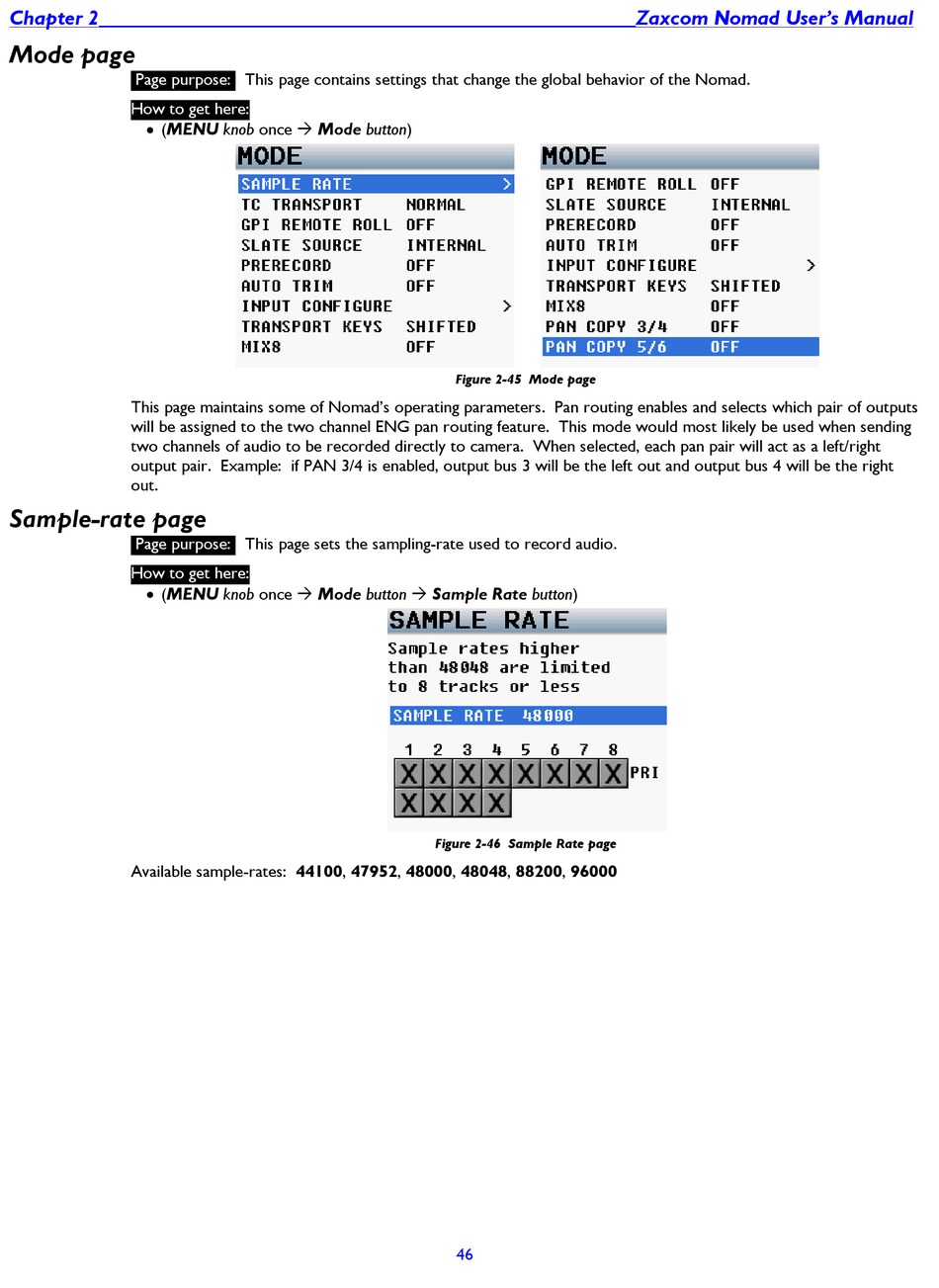

Figure 2-45 Mode page

Figure 2-46 Sample Rate page
