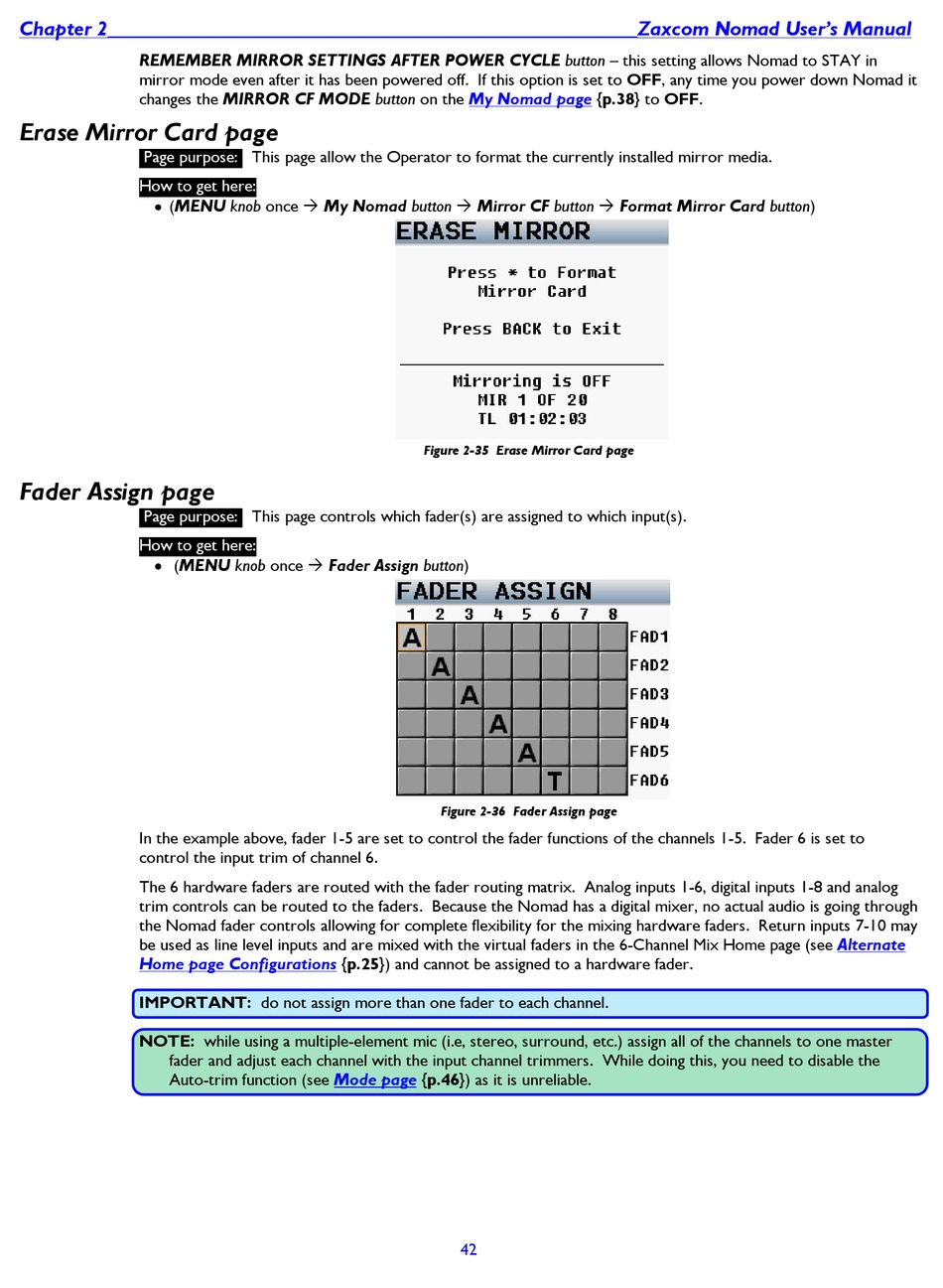

Erase Mirror Card Page; Fader Assign Page; Figure 2-35 Erase Mirror Card Page; Figure 2-36 Fader Assign Page - Zaxcom Nomad User Manual

Chapter 2_____________________________________________________Zaxcom Nomad User's Manual
REMEMBER MIRROR SETTINGS AFTER POWER CYCLE button – this setting allows Nomad to STAY in
mirror mode even after it has been powered off. If this option is set to OFF, any time you power down Nomad it
changes the MIRROR CF MODE button on the

Erase Mirror Card page

Page purpose:
How to get here:
(MENU knob once  My Nomad button  Mirror CF button  Format Mirror Card button)

Fader Assign page

Page purpose:
How to get here:
(MENU knob once  Fader Assign button)
In the example above, fader 1-5 are set to control the fader functions of the channels 1-5. Fader 6 is set to
control the input trim of channel 6.
The 6 hardware faders are routed with the fader routing matrix. Analog inputs 1-6, digital inputs 1-8 and analog
trim controls can be routed to the faders. Because the Nomad has a digital mixer, no actual audio is going through
the Nomad fader controls allowing for complete flexibility for the mixing hardware faders. Return inputs 7-10 may
be used as line level inputs and are mixed with the virtual faders in the 6-Channel Mix Home page (see
Home page Configurations
IMPORTANT: do not assign more than one fader to each channel.
NOTE: while using a multiple-element mic (i.e, stereo, surround, etc.) assign all of the channels to one master
fader and adjust each channel with the input channel trimmers. While doing this, you need to disable the
Auto-trim function (see
This page allow the Operator to format the currently installed mirror media.

Figure 2-35 Erase Mirror Card page

This page controls which fader(s) are assigned to which input(s).
{p.25}) and cannot be assigned to a hardware fader.
Mode page {p.46}) as it is unreliable.
My Nomad page {p.38} to OFF.

Figure 2-36 Fader Assign page
