Chapter 2_____________________________________________________Zaxcom Nomad User's Manual
Set Date & Time page
Page purpose:
How to get here:
(MENU knob once  ENG Setup button  Set Time Date button)
Nomad contains a battery backed real-time clock and calendar. This page is used to jam the timecode and user-
bits. The clock keeps the timecode running when the power is turned off.

Limiter Enable page

Page purpose:
How to get here:
(MENU knob once  ENG Setup button  Limiter Enable button)
In this page you can choose which card track and which output bus you want to engage the limiters on. Select the
X crosspoint in the matrix to enable the limiter. The limiter is implemented as a soft knee compressor. The Card
limiter settings are adjusted in the
adjusted in the
This page set the date and time for the unit's clock/calander.
This page manages which tracks and outputs are using the common limiter settings.
Card Limiter Parameters page
Output Limiter Parameters page

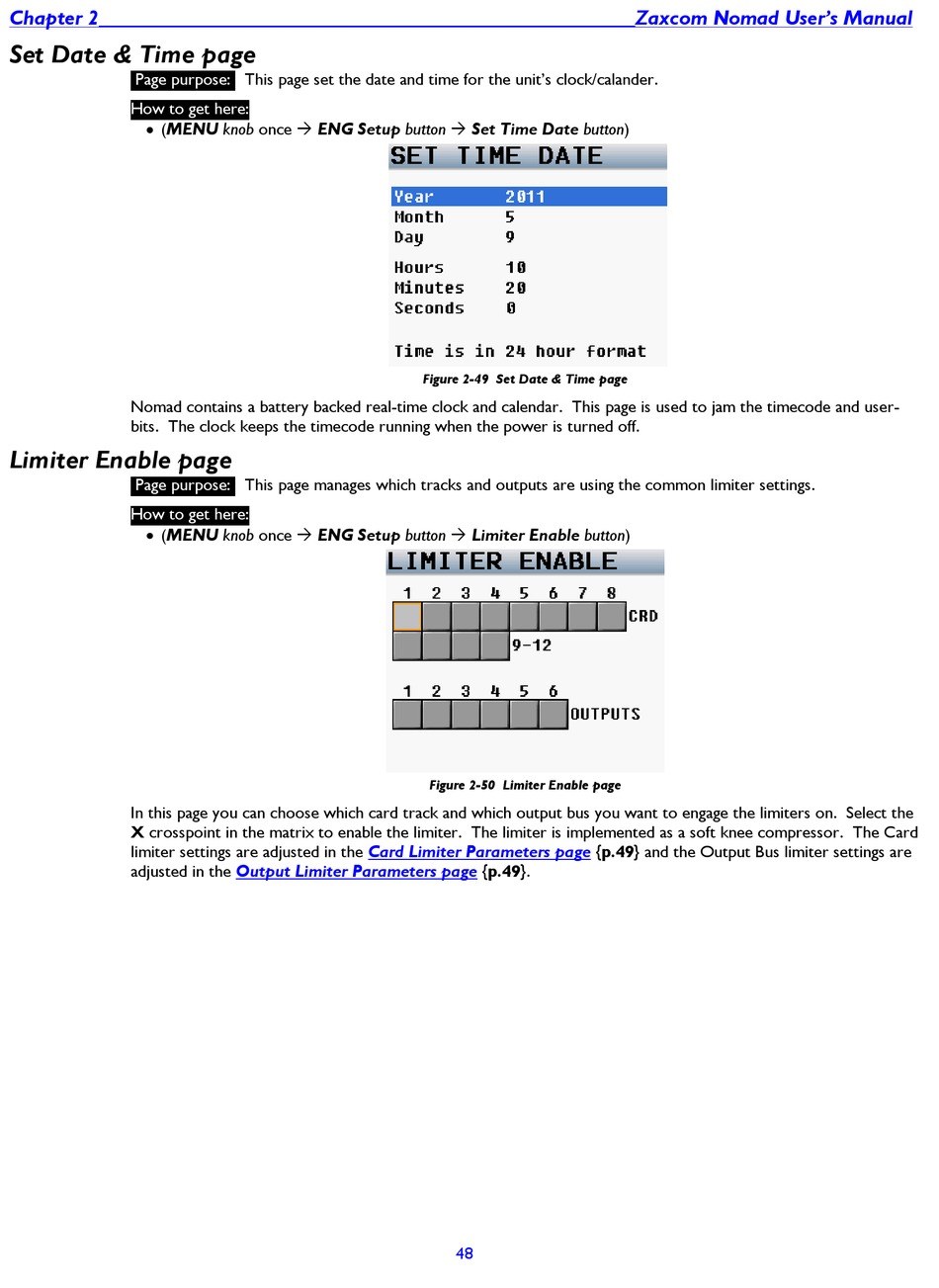

Figure 2-49 Set Date & Time page

Figure 2-50 Limiter Enable page

{p.49} and the Output Bus limiter settings are
{p.49}.
48
