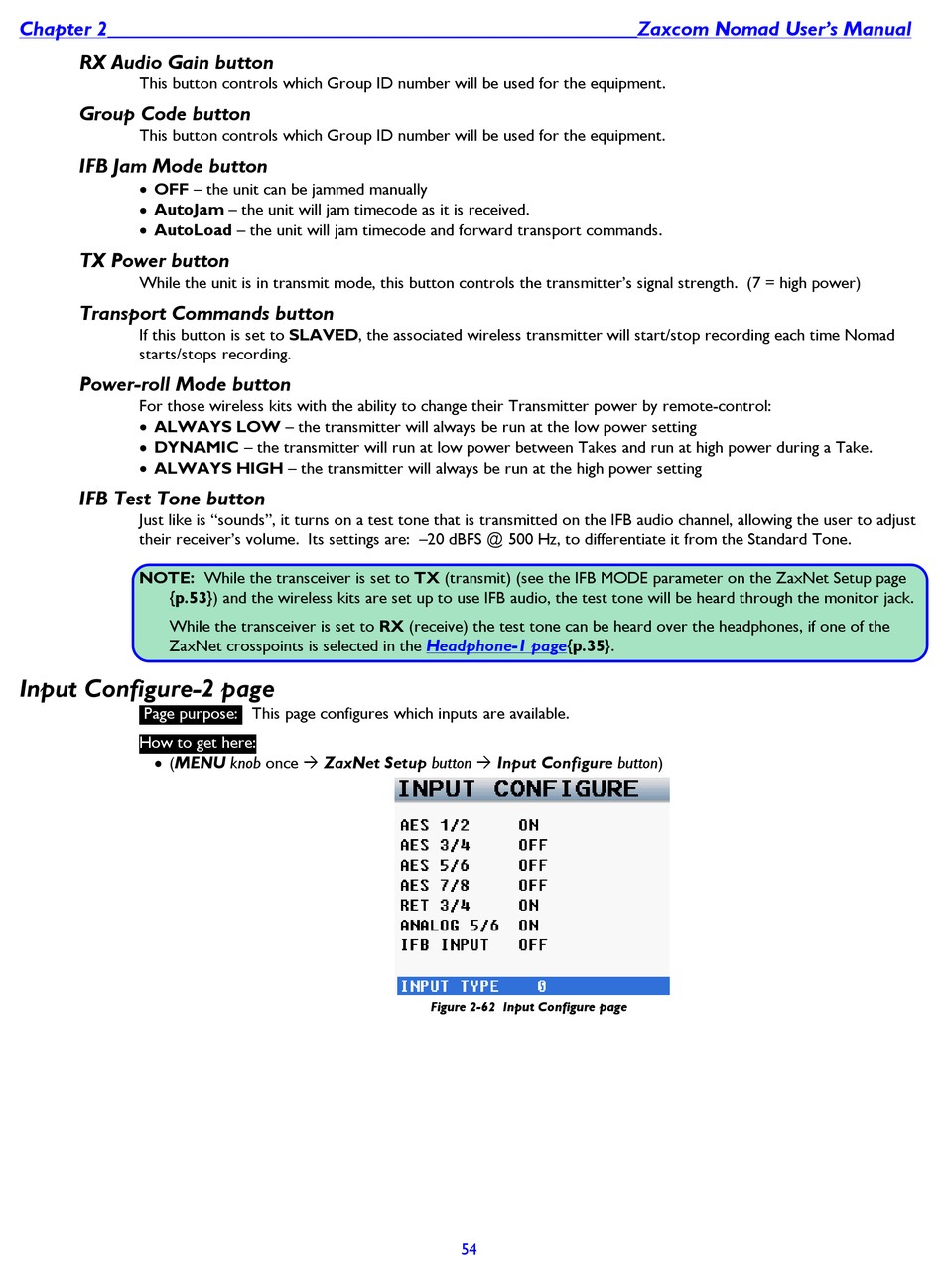

Chapter 2_____________________________________________________Zaxcom Nomad User's Manual

RX Audio Gain button

This button controls which Group ID number will be used for the equipment.

Group Code button

This button controls which Group ID number will be used for the equipment.

IFB Jam Mode button

OFF – the unit can be jammed manually
AutoJam – the unit will jam timecode as it is received.
AutoLoad – the unit will jam timecode and forward transport commands.

TX Power button

While the unit is in transmit mode, this button controls the transmitter's signal strength. (7 = high power)

Transport Commands button

If this button is set to SLAVED, the associated wireless transmitter will start/stop recording each time Nomad
starts/stops recording.

Power-roll Mode button

For those wireless kits with the ability to change their Transmitter power by remote-control:
ALWAYS LOW – the transmitter will always be run at the low power setting
DYNAMIC – the transmitter will run at low power between Takes and run at high power during a Take.
ALWAYS HIGH – the transmitter will always be run at the high power setting

IFB Test Tone button

Just like is "sounds", it turns on a test tone that is transmitted on the IFB audio channel, allowing the user to adjust
their receiver's volume. Its settings are: –20 dBFS @ 500 Hz, to differentiate it from the Standard Tone.
NOTE: While the transceiver is set to TX (transmit) (see the IFB MODE parameter on the ZaxNet Setup page
{p.53}) and the wireless kits are set up to use IFB audio, the test tone will be heard through the monitor jack.
While the transceiver is set to RX (receive) the test tone can be heard over the headphones, if one of the
ZaxNet crosspoints is selected in the

Input Configure-2 page

Page purpose:
How to get here:
(MENU knob once  ZaxNet Setup button  Input Configure button)
Headphone-1
This page configures which inputs are available.
page{p.35}.

Figure 2-62 Input Configure page

54
