Zaxcom Nomad User's Manual_____________________________________________________Chapter 2

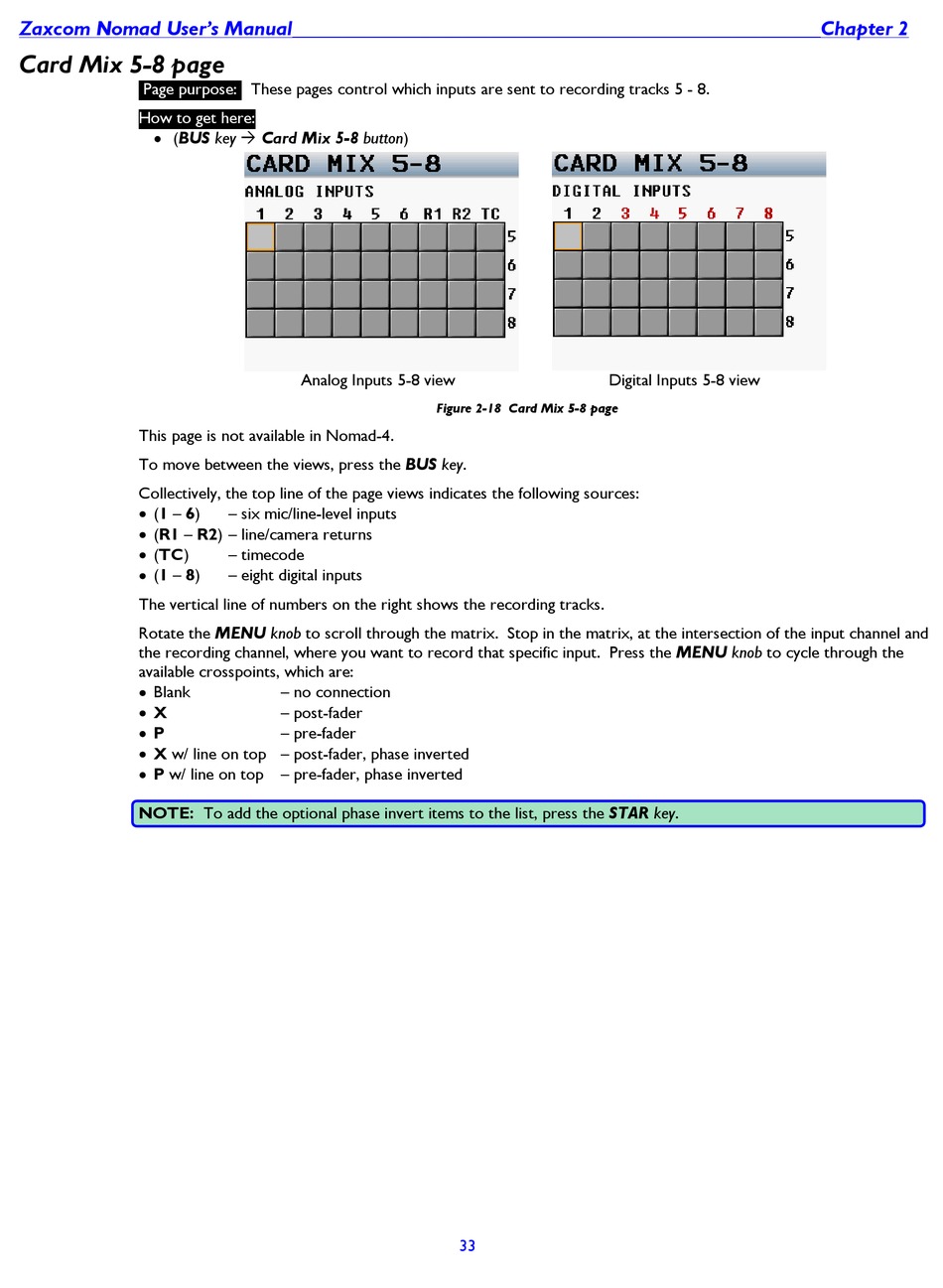

Card Mix 5-8 page

Page purpose:
How to get here:
(BUS key  Card Mix 5-8 button)
This page is not available in Nomad-4.
To move between the views, press the BUS key.
Collectively, the top line of the page views indicates the following sources:
(1 – 6)
(R1 – R2) – line/camera returns
(TC)
(1 – 8)
The vertical line of numbers on the right shows the recording tracks.
Rotate the MENU knob to scroll through the matrix. Stop in the matrix, at the intersection of the input channel and
the recording channel, where you want to record that specific input. Press the MENU knob to cycle through the
available crosspoints, which are:
Blank
X
P
X w/ line on top – post-fader, phase inverted
P w/ line on top – pre-fader, phase inverted
NOTE: To add the optional phase invert items to the list, press the STAR key.
These pages control which inputs are sent to recording tracks 5 - 8.
Analog Inputs 5-8 view
– six mic/line-level inputs
– timecode
– eight digital inputs
– no connection
– post-fader
– pre-fader
Digital Inputs 5-8 view

Figure 2-18 Card Mix 5-8 page

33
