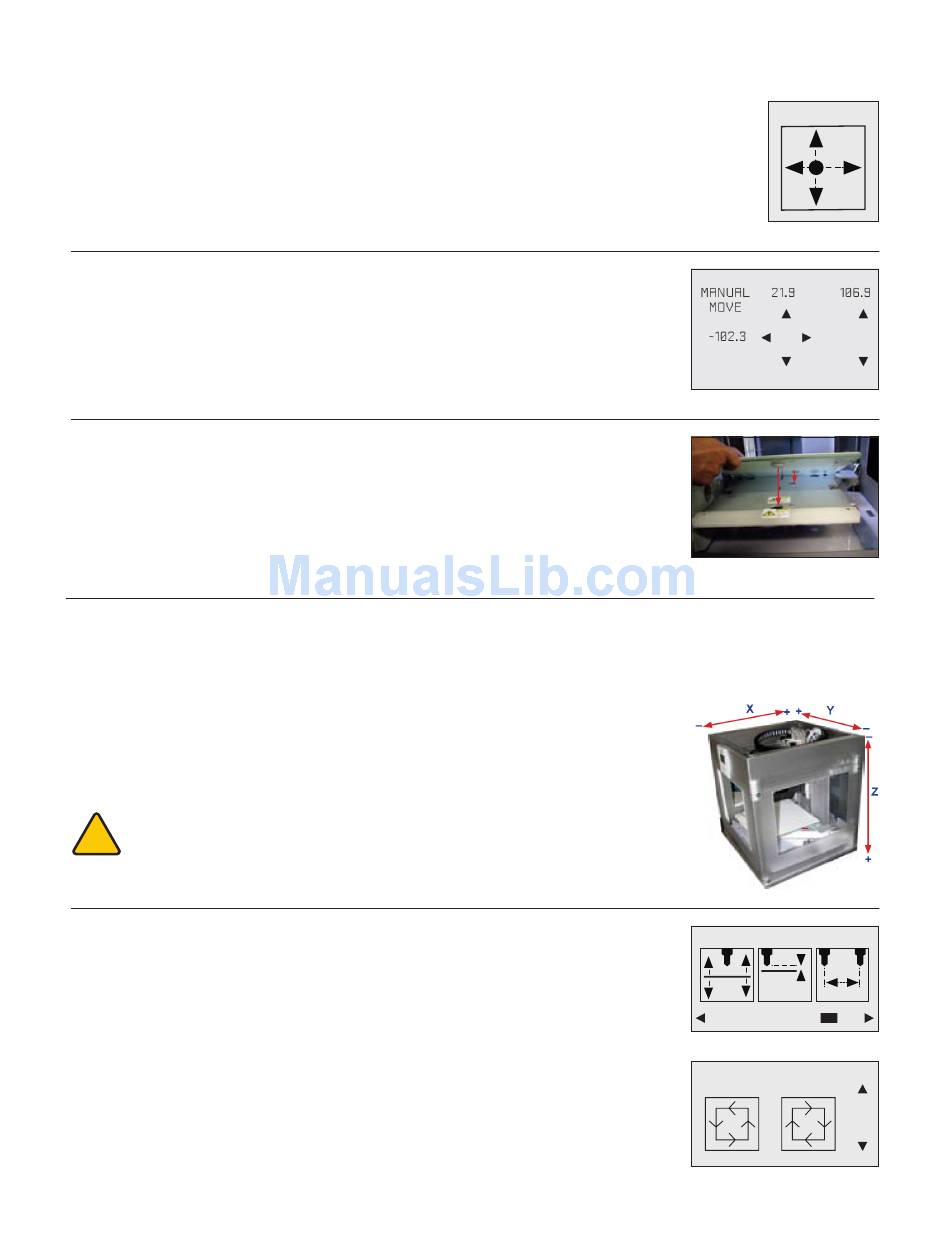

INSTALLING THE PRINT PAD

1 . Scroll to the "MOVE" function screen located on the CubeX control panel . (Fig . 23)
2 . Using the Up and Down arrows on the right side of the screen, move the Aluminum
Print Plate to its lowest position .(Fig . 24)
3 . To install the Print Pad, align the aluminum foot with front slot on the Print Plate base .
(Fig . 25)
4 . Place the Print Pad into position, when properly installed the magnet will lock it in
place . Ensure that print pad is fully seated . (Fig . 25)
CHECKING THE X,Y,Z AXIS
During shipping your CubeX, the X, Y and Z axes may have come out of alignment. Before starting your first creation, please
verify that the X, Y and Z axes are aligned .
X, Y, Z Axis Movements:
• X Axis: Print Jet moves front to back and back to front .
• Y Axis: Print Jet moves left to right and right to left .
CAUTION: Always move the print plate (Z Axis) down first to avoid collision
with the print jet tips. When moving the print jet (X and Y axis), make sure
!
you do not stray too far from the home switches (left rear of the printer)
as this can cause collision with the printer frame. Excessive collisions will
damage the printer.
1 . Scroll to the LEVEL menu and select . (Fig . 26) Tap on the clockwise and
counterclockwise position and observe the print jet's print jet tip moves around the
print pad from the side of pad . (Fig . 27)
2 . After checking that all axes are functioning properly, use the control button to go
back to the main menu . If adjustments are required to the print plate or the print jet
tips, refer to "CubeX Maintenance: Leveling Print Plate ."
13
MOVE
Fig . 23
Fig . 24
Fig . 25
LEVEL OFFSET
Z GAP
Z
Fig . 26
LEVEL BED
Fig . 27
