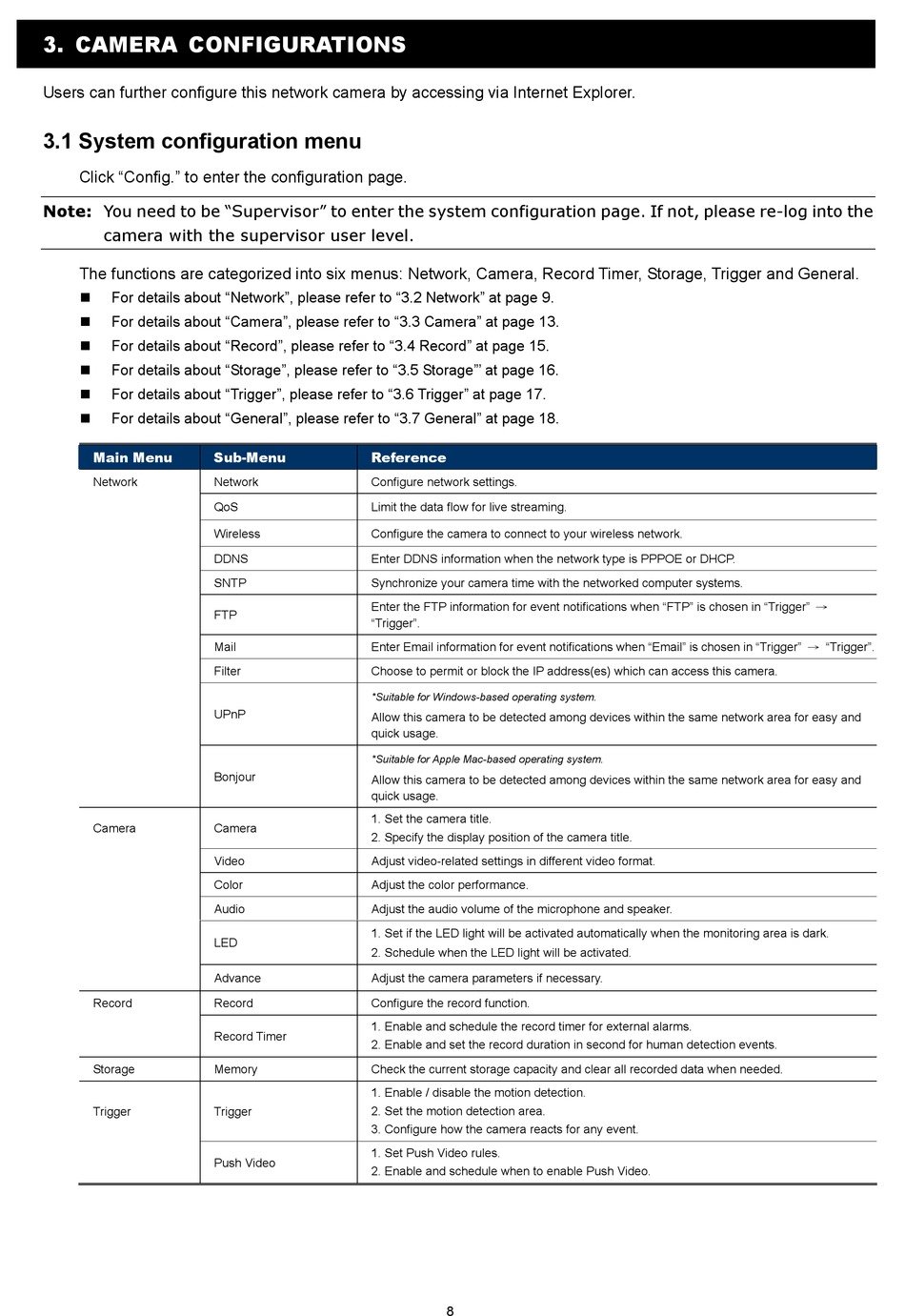

3. CAMERA CONFIGURATIONS

Users can further configure this network camera by accessing via Internet Explorer.

3.1 System configuration menu

Click "Config." to enter the configuration page.
Note: You need to be "Supervisor" to enter the system configuration page. If not, please re-log into the
camera with the supervisor user level.
The functions are categorized into six menus: Network, Camera, Record Timer, Storage, Trigger and General.
 For details about "Network", please refer to "3.2 Network" at page 9.
 For details about "Camera", please refer to "3.3 Camera" at page 13.
 For details about "Record", please refer to "3.4 Record" at page 15.
 For details about "Storage", please refer to "3.5 Storage"' at page 16.
 For details about "Trigger", please refer to "3.6 Trigger" at page 17.
 For details about "General", please refer to "3.7 General" at page 18.
Main Menu
Network
Camera
Record
Storage
Trigger
Sub-Menu Reference
Network Configure network settings.
QoS Limit the data flow for live streaming.
Wireless Configure the camera to connect to your wireless network.
DDNS Enter DDNS information when the network type is PPPOE or DHCP.
SNTP Synchronize your camera time with the networked computer systems.
Enter the FTP information for event notifications when "FTP" is chosen in "Trigger" →
FTP
"Trigger".
Mail Enter Email information for event notifications when "Email" is chosen in "Trigger" → "Trigger".
Filter Choose to permit or block the IP address(es) which can access this camera.
*Suitable for Windows-based operating system.
UPnP
Allow this camera to be detected among devices within the same network area for easy and
quick usage.
*Suitable for Apple Mac-based operating system.
Bonjour
Allow this camera to be detected among devices within the same network area for easy and
quick usage.
1. Set the camera title.
Camera
2. Specify the display position of the camera title.
Video Adjust video-related settings in different video format.
Color Adjust the color performance.
Audio Adjust the audio volume of the microphone and speaker.
1. Set if the LED light will be activated automatically when the monitoring area is dark.
LED
2. Schedule when the LED light will be activated.
Advance Adjust the camera parameters if necessary.
Record Configure the record function.
1. Enable and schedule the record timer for external alarms.
Record Timer
2. Enable and set the record duration in second for human detection events.
Memory Check the current storage capacity and clear all recorded data when needed.
1. Enable / disable the motion detection.
2. Set the motion detection area.
Trigger
3. Configure how the camera reacts for any event.
1. Set Push Video rules.
Push Video
2. Enable and schedule when to enable Push Video.
8
