Summary of Contents for Avtech Push Video AVN701

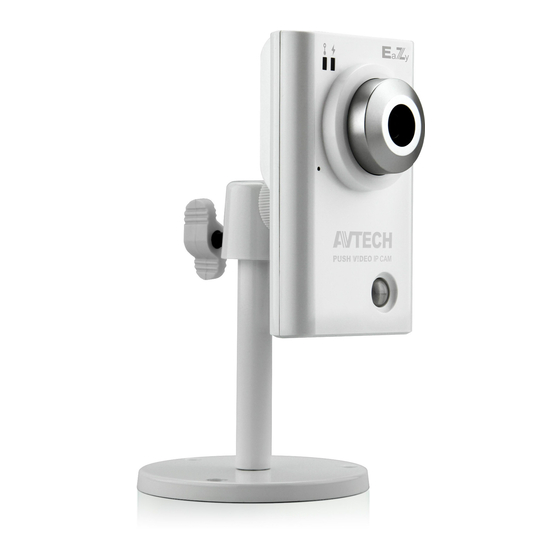

- Page 1 AVN801 / 701 NETWORK CAMERA SERIES OPERATION GUIDE Please read instructions thoroughly before operation and retain it for future reference. n801_701_operation_V1.2...
- Page 2 States and/or other countries. Disclaimer AVTECH reserves the right to revise or remove any content in this manual at any time. We do not warrant or assume any legal liability or responsibility for the accuracy, completeness, or usefulness of this manual. The content of this manual is subject to change without notice.
- Page 3 MPEG4 Licensing THIS PRODUCT IS LICENSED UNDER THE MPEG4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG4 VIDEO.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1. OVERVIEW............................1 1.1 Product Features............................1 1.2 Package Content............................1 1.3 Product Overview ............................1 1.4 Rear Panel ..............................1 1.5 External I/O Port............................2 1.6 Status Indicator............................2 2. CAMERA ACCESS WITH INTERNET EXPLORER................3 2.1 Camera Login............................ -
Page 5: Overview
1. OVERVIEW 1.1 Product Features Easy network setup with your iPhone / iPad / Android mobile devices External alarm I/O device connection Microphone built-in for audio recording Remote Surveillance -- Fully compatibility on iPhone & iPad, and Internet Explorer® on Windows® operating system (For AVN801) 1.3 Megapixel H.R. -
Page 6: External I/O Port
1.5 External I/O Port This camera supports external I/O device connection, and a 4-pin I/O terminal is supplied with this camera for easy connection. Below shows which input on the I/O terminal you should use for wiring when you want to connect an external device to this camera. -
Page 7: Camera Access With Internet Explorer
2. CAMERA ACCESS WITH INTERNET EXPLORER This network camera can be accessed via Microsoft® Internet Explorer® and iPhone / iPad / Android mobile devices with our self-developed program “EagleEyes” installed depending on different using situations. Note: For details about accessing network cameras via iPhone / iPad / Android mobile devices, please refer to http://www.eagleeyescctv.com. - Page 8 Function Icon User Level Description Supervisor / Power User Switch to the live view page. Live / Normal User / Guest Switch to the DPTZ configuration page. Supervisor / Power User DPTZ* / Normal User For details, please refer to “2.3 Digital PTZ (DPTZ) Operations” at page 5. Enter the event record list for video playback.
-
Page 9: Digital Ptz (Dptz) Operations (Avn801 Only)
2.3 Digital PTZ (DPTZ) Operations (AVN801 Only) This camera has PTZ capability, i.e. digital PTZ (hereafter called “DPTZ”), for wide area monitoring. STEP1: Click “DPTZ” to show the DPTZ control panel. STEP2: Select the functions when needed: FUNCTION ICON DESCRIPTION Resolution Select the video resolution for the DPTZ function. - Page 10 Click to jump to the next / previous time interval in an hour, for example, 11:00 ~ 12:00 or 14:00 Previous / Next Hour ~ 15:00, and start playing the earliest event video clip recorded during this whole hour. Fast Forward Increase the speed for fast forward.
-
Page 11: Camera Configurations
3. CAMERA CONFIGURATIONS Users can further configure this network camera by accessing via Internet Explorer. 3.1 System configuration menu Click “Config.” to enter the configuration page. Note: You need to be “Supervisor” to enter the system configuration page. If you’re not a “Supervisor”, please re-log into the camera with the correct user name and password. -
Page 12: Network
Main Menu Sub-Menu Reference 1. Select the language of the web browser. 2. Check the MAC address of the camera. General General 3. Lock camera access after the specified time. 4. Enable or disable LED status indication. Time Set daylight saving time and the current time. Server Log Check the system event logs. -
Page 13: Sntp
3.2.4 SNTP SNTP (Simple Network Time Protocol) is used to synchronize your camera time with the networked computer systems. Function Description Once users choose the time zone, the network camera will adjust the local area time of the system automatically. NTP Server Simply use the default SNTP server (For example, tock.stdtime.gov.tw) or change to another server with which users are familiar. -
Page 14: Filter
Function Description Verify Password Some mail servers are required to verify the password. Please enter the “user name” and “password”. E-Mail Address List Add the e-mail address(s) of the assigned recipient(s). Test When all information is entered, click “Test Mail” to try if the receipt. 3.2.7 Filter Choose to permit or block the IP address(es) which can access this camera, and click “Save”... -
Page 15: Camera
Check “Enable” to allow the network camera to be detected among devices within the same network area, and set the identification name of the camera in “Friendly name”. When this function is activated, the other PC within the same domain as this camera will be able to search this camera in: “Network Neighbor”... -
Page 16: Video
3.3.2 Video Adjust video-related settings in different video format. “Quality” is related to image clearness. “FPS” is related to the fluency of the video. The more the FPS, the more fluent the video. “Max Bit Rate” is the maximum limitation of data transmission in the selected image format and resolution. Note: QQVGA &... -
Page 17: Advance
3.3.5 Advance Adjust the camera parameters if necessary. AVN801 AVN701 Item Description Shutter Speed* Set the shutter speed based on your need. The options are: Up to 1/10 sec, Up to 1/30, Up to 1/15, Up to1/6, Up to 1 and Up to 2. Back Light It is the function to adjust the image to compensate for an area that is overpowered by brightness because of excessive light. -
Page 18: Record Timer
3.4.2 Record Timer To schedule alarm recording or human detection recording, click “External Alarm” or “Internal Alarm” (human detection) to enable the recording, and select the day and time for recording. Note: The timer must be enabled for the record function to work properly. 3.5 Storage 3.5.1 Memory In “Memory”, you can check the remaining capacity for recording, or clear all recorded data saved if needed. - Page 19 Detect Item Description External Alarm Enable or disable detection from external alarm-in device, and click the title “External Alarm” (in blue) to set “N.O.” or “N.C.” depending on the configuration of your alarm-in device. Motion Enable or disable motion detection. Motion detection is not supported when the stream format is Motion JPEG.
-
Page 20: Push Video
3.6.2 Push Video “Push Video” is an active notification system, different from traditional FTP and Email notification methods. Note: For Push Video to work properly, make sure the record function is on in “Record” “Record”, and the record timer for the external alarm is on in “Record” “Record Timer”. -
Page 21: Time
3.7.2 Time Set daylight saving time and the current time, and click “Save” to confirm. Function Description Time Configuration Set the current date. Date Set the current time. Time Daylight Saving Time Configuration Specify whether to use daylight saving time (Enable / Disable). Daylight Saving Time If this function is enabled, set the time period (Start Time / End Time), and adjust the daylight saving time in hours (Adjust Time). -
Page 22: Online
3.7.4 Online You can check the current online user(s) with respective online information. To refresh the list, click “Reload”. To allow anonymous login, select “Enable” in “Anonymous Viewer Login”. To disable image code verification at login, select “No” in “Login with CAPTCHA Image”. 3.7.5 Account You can create a new account with different user access privilege, or delete or modify an existing account setting. -
Page 23: Maintenance
3.7.6 Maintenance Firmware Upgrade This function is used when users need to upgrade the camera for function scalability. Note: Before using this function, make sure you have the correct upgrade files provided by your installer or distributor. Note: The event videos saved in the camera will be removed after firmware upgrade. Make sure you’ve copied important events to your PC before firmware upgrade. -
Page 24: Appendix 1 Product Specifications
APPENDIX 1 PRODUCT SPECIFICATIONS AVN801 AVN701 ▓ Network Network Compression H.264 / MPEG4 / MJPEG Multiple Video Streaming 3 (H.264, MJPEG, MPEG4) (Encode Modes, IPS, Resolution) LAN Port LAN Speed 10/100 Based-T Ethernet DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, Supported Protocols HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS Frame Rate... -
Page 25: Appendix 2 Bit Rate Table For Reference
APPENDIX 2 BIT RATE TABLE FOR REFERENCE The data below is for reference only. The bit rates listed here may vary depending on the resolution, image quality & frame rate you choose, the complexity of your monitoring area, and how often the moving objects show in your monitoring area. AVN801 Testing Environment Place: Office Entrance... - Page 26 Resolution Quality Frame Rate (Dynamic) kbps (Static) kbps SXGA Best 1/15 High Normal Basic Best High Normal Basic QVGA Best High Normal Basic...
- Page 27 AVN701 Testing Environment Place: Office Entrance Network translation: H.264 Static: No one coming in and out Dynamic: One or two people coming in and out Resolution Quality Frame Rate (Dynamic) kbps (Static) kbps Best FULL 2786 1546 High 1375 Normal 1234 Basic Best...
-
Page 28: Appendix 3 Q&A
APPENDIX 3 Q&A For more details about EagleEyes Q&A, please visit our official website: www.eagleeyescctv.com/supp_QnA.aspx. Question Answer I can connect to this camera in my house or office where it’s installed You didn’t configure this camera to Internet, but only in LAN. with wireless network. -
Page 29: Appendix 4 Recording Time Table
APPENDIX 4 RECORDING TIME TABLE Below shows the estimated total recording time for each recording resolution. The recording time per resolution is the average value collected from the both alarm trigger conditions indicated in “Testing Environment”, and is for reference only. The time may vary depending on the resolution, image quality &...
