Page 1: Operation Guide

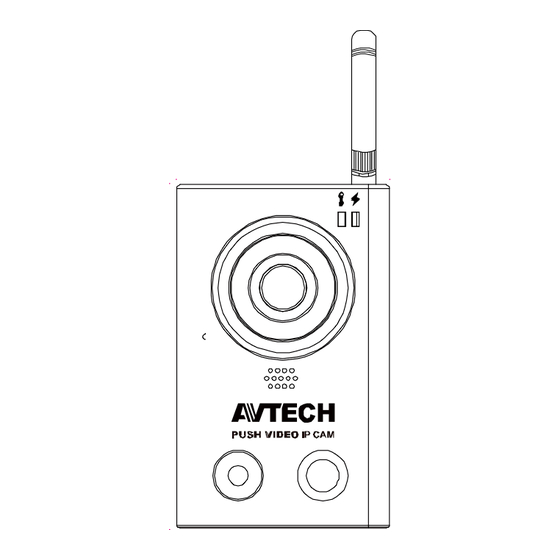

MEGAPIXEL WIRELESS NETWORK CAMERA SERIES OPERATION GUIDE Please read instructions thoroughly before operation and retain it for future reference. n813_812_operation_V1.3... - Page 2 IMPORTANT SAFEGUARD All lead-free products offered by the company comply with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly “lead-free” and without the hazardous substances cited in the directive. The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product end-of-life.
- Page 3 Disclaimer We reserve the right to revise or remove any content in this manual at any time. We do not warrant or assume any legal liability or responsibility for the accuracy, completeness, or usefulness of this manual. The content of this manual is subject to change without notice.
-
Page 4: Table Of Contents
3.4 Record..............................15 3.4.1 Record................................15 3.4.2 Record Timer..............................16 3.5 Storage..............................16 3.5.1 Memory ................................16 3.6 Trigger ..............................17 3.6.1 Trigger ................................17 3.6.2 Push Video ..............................18 3.7 General ..............................19 3.7.1 General................................19 3.7.2 Time................................19 3.7.3 Server Log..............................20 3.7.4 Online ................................20 3.7.5 Account................................21 3.7.6 Maintenance..............................21... -
Page 5: Overview
1.3 Megapixel with HDTV 720p quality, allowing users to notice minor details more easily Push Video support to send an event notification to your iPad, iPhone and Android mobile device immediately once the specified event type is triggered, and play video recording once you confirm the receipt ... -
Page 6: Rear Panel
1.4 Rear Panel RJ45 Port: Connect your network cable. Power: Connect the supplied regulated power supply. External I/O Port A 4-pin I/O terminal is supplied with the camera for external alarm device connection. For details, please refer to “1.5 External I/O Port” at page 2. Reset Button: With the power connected, press to reset all parameters, including the IP address to factory default settings. -
Page 7: Micro Sd Card
1.7 Micro SD Card For local video recording, a micro SD card slot can be found on the side of the camera. Note: Before inserting a micro SD card, make sure you’ve copied all important data saved in the card (if any) to other storage media, or the data will be removed after inserting it to the camera. -
Page 8: Camera Access With Internet Explorer
2. CAMERA ACCESS WITH INTERNET EXPLORER This network camera can be accessed via Microsoft® Internet Explorer® and iPhone® / iPad® / Android™ mobile devices with our self-developed program “EagleEyes” installed depending on different using situations. Note: For details about accessing network cameras via iPhone / iPad / Android mobile devices, please refer to http://www.eagleeyescctv.com. - Page 9 Function Icon User Level Description Supervisor / Power User Switch to the live view page. Live / Normal User / Guest Switch to the DPTZ configuration page. Supervisor / Power User DPTZ / Normal User For details, please refer to “2.3 Digital PTZ (DPTZ) Operations” at page 6. Enter the event record list for video playback.
-
Page 10: Digital Ptz (Dptz) Operations
2.3 Digital PTZ (DPTZ) Operations This camera has PTZ capability, i.e. digital PTZ (hereafter called “DPTZ”), for wide area monitoring. STEP1: Click “DPTZ” to show the DPTZ control panel. STEP2: Select the functions when needed: FUNCTION ICON DESCRIPTION Resolution Select the video resolution for the DPTZ function. Only “VGA” and “QVGA” are available. Click to take a snapshot of the current view on a new window. - Page 11 Click to jump to the next / previous time interval in an hour, for example, 11:00 ~ 12:00 or 14:00 Previous / Next Hour ~ 15:00, and start playing the earliest event video clip recorded during this whole hour. Fast Forward Increase the speed for fast forward.
-
Page 12: Camera Configurations
1. Enable / disable the motion detection. 2. Set the motion detection area. Trigger Trigger 3. Configure how the camera reacts for any event. 1. Set Push Video rules. Push Video 2. Enable and schedule when to enable Push Video. -
Page 13: Network
Main Menu Sub-Menu Reference 1. Select the language of the web browser. 2. Check the MAC address of the camera. General General 3. Lock camera access after the specified time. 4. Enable or disable LED status indication. Time Set daylight saving time and the current time. Server Log Check the system event logs. -
Page 14: Ddns
3.2.4 DDNS Select “On” when the selected network type in “Network” is “PPPOE” or “DHCP”. For details, please refer to “Advanced Network Setup” from www.surveillance-download.com/user/n812.swf. 3.2.5 SNTP SNTP (Simple Network Time Protocol) is used to synchronize your camera time with the networked computer systems. -
Page 15: Mail
3.2.7 MAIL Enter the detailed e-mail information and click “Save” to confirm. The information you set here will be applied when “Email” is selected in “Trigger” → “Trigger”. Function Description SMTP Server Enter the SMTP server address provided from your e-mail system supplier. Port Enter the port number provided from your e-mail system supplier. -
Page 16: Upnp / Bonjour
3.2.9 UPnP / Bonjour “UPnP” stands for “Universal Plug and Play”, which allows devices to connect seamlessly in the home and corporate environments and simplify installation of computer components, and is only suitable for Microsoft Windows-based operating system. “Bonjour” functions the same as “UPnP”, but it’s only suitable for Apple Mac-based operating system. ... -
Page 17: Camera
3.3 Camera 3.3.1 Camera In this menu, you can set the camera title, and specify where to display this title on the display. 3.3.2 Video Adjust video-related settings in different video format. “Quality” is related to image clearness. “FPS” is related to the fluency of the video. The more the FPS, the more fluent the video. ... -
Page 18: Color
3.3.3 Color Adjust the color performance from Brightness, Contract, Hue and Saturation. Click and drag the slider to preview the color change on the right side of ths page and adjust the image color. To restore the default values, click “Back to Default”. 3.3.4 Audio Drag the slider to adjust the volume of the microphone and speaker. -
Page 19: Advanced
3.3.6 Advanced Adjust the camera parameters if necessary. Item Description Shutter Speed Set the shutter speed based on your need. The options are: Up to 1/10 sec, Up to 1/30, Up to 1/15, Up to1/6, Up to 1 and Up to 2. Exposure Control This function is used to synchronize the shutter time to the fluorescent light to suppress image flickering. -
Page 20: Record Timer
3.4.2 Record Timer To schedule alarm recording or human detection recording, click “External Alarm” or “Internal Alarm” (human detection) to enable the recording, and select the day and time for recording. Note: The timer must be enabled for the record function to work properly. 3.5 Storage 3.5.1 Memory In “Memory”, you can check the remaining capacity for recording, or clear all recorded data saved if needed. -
Page 21: Trigger
3.6 Trigger 3.6.1 Trigger You can configure how this camera reacts when there’s an external alarm, a motion or PIR event. Detect Item Description External Alarm Enable or disable detection from external alarm-in device, and click the title “External Alarm” (in blue) to set “N.O.” or “N.C.”... -
Page 22: Push Video
Select to enable or disable Push Video. This function can also be enabled from your iPhone or Android mobile devices. LED Lock Select to fix the LED light mode to auto (Enable) or remain the current LED light mode (Disable) when Push Video is enabled. -
Page 23: General
3.7 General 3.7.1 General To change the language of UI interface, select from the drop-down list in “Language”. To allow the status LED indicators to show the status as indicated in “1.6 Status Indicator” at page 2, select “ON” “Enable” in “Status LED Mode”; to hide the status, select “OFF”; to only show the error status, select “Temporary Disable”. -
Page 24: Server Log
3.7.3 Server Log To quickly search the system logs you want by event type, click “Prev. Page” or “Next Page” to find the logs you want, or check the event type(s) and click “Reload” to start searching. To clear all system event logs, click “Clear All”. 3.7.4 Online You can check the current online user(s) with respective online information. -
Page 25: Account
3.7.5 Account You can create a new account with different user access privilege, or delete or modify an existing account setting. How to create a new account Step1: Click “New”, and fill in the following columns. Column Description User Name Set a user name that will be used for camera access. - Page 26 Step1: Select “ ” to browse to where you save the upgrade files, and select them one by one until all files are selected (up to four files). Step2: Select “Upgrade” to start system upgrading. Note: It takes a few minutes to finish the upgrade process. Do not disconnect the power during firmware upgrade, or the upgrade may be failed.
-
Page 27: Appendix 1 Product Specifications
Quick Wireless Network Connection YES (With one press) RTC (real-time clock) Motion Detection Digital Pan / Tilt / Zoom FTP / Email / Push Video Event Notification Micro SD Card Slot Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD ‧... -
Page 28: Appendix 2 Bit Rate Table For Reference
APPENDIX 2 BIT RATE TABLE FOR REFERENCE The data below is for reference only. The bit rates listed here may vary depending on the resolution, image quality & frame rate you choose, the complexity of your monitoring area, and how often the moving objects show in your monitoring area. Testing Environment ... - Page 29 Resolution Quality Frame Rate (Dynamic) kbps (Static) kbps SXGA Best 1/15 High Normal Basic Best High Normal Basic QVGA Best High Normal Basic...
-
Page 30: Appendix 3 Micro Sd Card Compatible List
APPENDIX 3 MICRO SD CARD COMPATIBLE LIST Manufacturer Capacity Class Manufacturer Capacity Class ADATA Transcend Class 6 Class 2 Apacer Class 4 Class 4 Class 6 SanDisk Class 6 Class 4 16GB Class 10 Class 4 Kingston 16GB Class 4 Class 4 32GB Class 4... -
Page 31: Appendix 4 Q&A
In this case, it’s recommended to switch to the other modes (g mode / n mode). “Push Video” is an active notification system, different from traditional FTP & Email notification methods. When “Push Video” is enabled and any human detection event occurs, What’s “Push Video”? -
Page 32: Appendix 5 Recording Time Table
APPENDIX 5 RECORDING TIME TABLE Below shows the estimated total recording time for each recording resolution. The recording time per resolution is the average value collected from the both alarm trigger conditions indicated in “Testing Environment”, and is for reference only. The time may vary depending on the resolution, image quality &...
