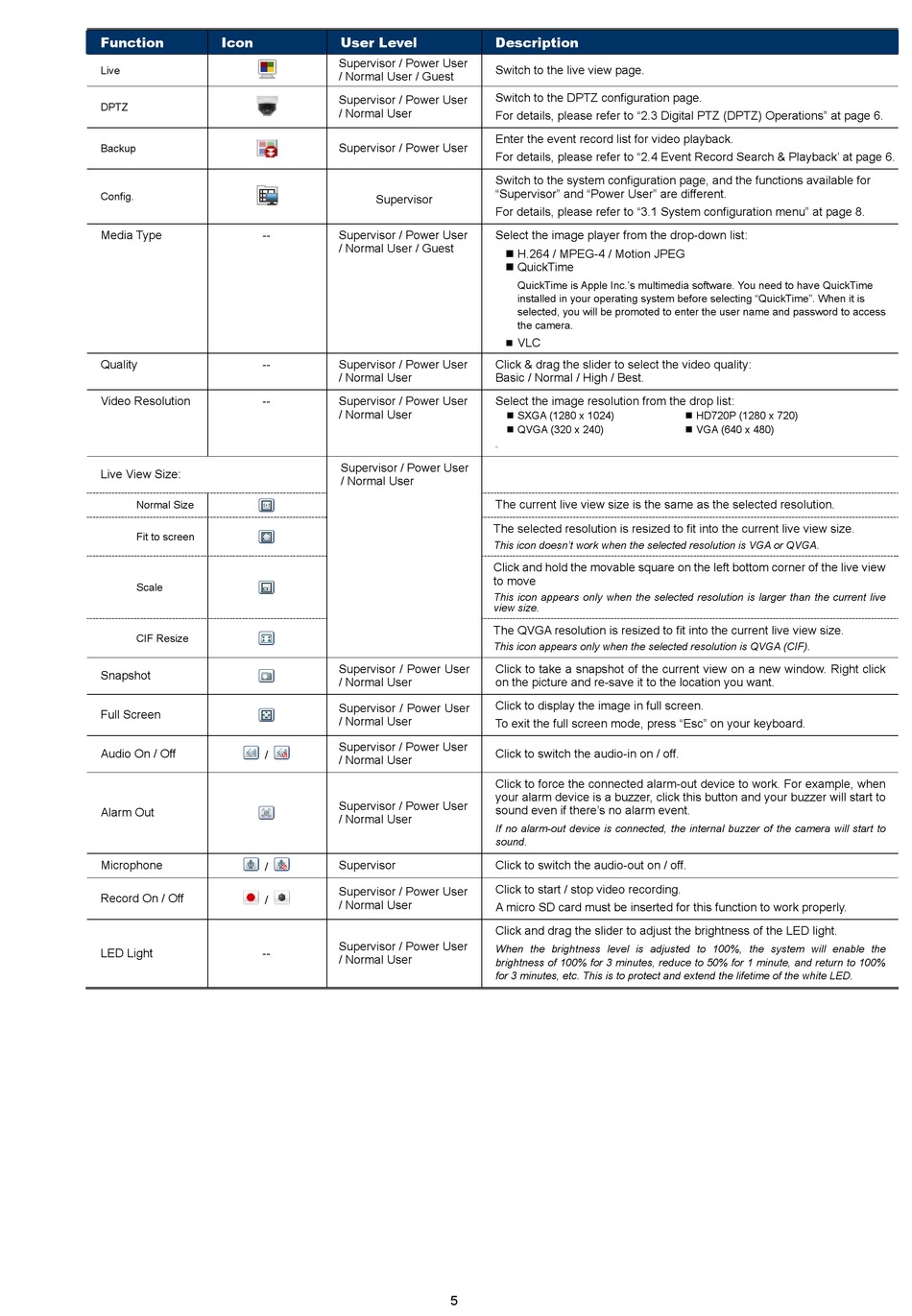

Avtech MEGAPIXEL WIRELESS NETWORK CAMERA SERIES Operation Manual page 9

Function Icon
Live
DPTZ
Backup
Config.
Media Type --
Quality --
Video Resolution --
Live View Size:
Normal Size
Fit to screen
Scale
CIF Resize
Snapshot
Full Screen
Audio On / Off
/
Alarm Out
Microphone
/
Record On / Off
/
LED Light --
User Level Description
Supervisor / Power User
Switch to the live view page.
/ Normal User / Guest
Switch to the DPTZ configuration page.
Supervisor / Power User
/ Normal User
For details, please refer to "2.3 Digital PTZ (DPTZ) Operations" at page 6.
Enter the event record list for video playback.
Supervisor / Power User
For details, please refer to "2.4 Event Record Search & Playback' at page 6.
Switch to the system configuration page, and the functions available for
"Supervisor" and "Power User" are different.
Supervisor
For details, please refer to "3.1 System configuration menu" at page 8.
Supervisor / Power User Select the image player from the drop-down list:
/ Normal User / Guest
 H.264 / MPEG-4 / Motion JPEG
 QuickTime

Supervisor / Power User Click & drag the slider to select the video quality:
/ Normal User Basic / Normal / High / Best.
Supervisor / Power User Select the image resolution from the drop list:
/ Normal User
 SXGA (1280 x 1024)
 QVGA (320 x 240)
*
Supervisor / Power User
/ Normal User
The current live view size is the same as the selected resolution.
The selected resolution is resized to fit into the current live view size.
This icon doesn't work when the selected resolution is VGA or QVGA.
Click and hold the movable square on the left bottom corner of the live view
to move
This icon appears only when the selected resolution is larger than the current live
view size.
The QVGA resolution is resized to fit into the current live view size.
This icon appears only when the selected resolution is QVGA (CIF).
Supervisor / Power User Click to take a snapshot of the current view on a new window. Right click
/ Normal User on the picture and re-save it to the location you want.
Click to display the image in full screen.
Supervisor / Power User
/ Normal User
To exit the full screen mode, press "Esc" on your keyboard.
Supervisor / Power User
Click to switch the audio-in on / off.
/ Normal User
Click to force the connected alarm-out device to work. For example, when
your alarm device is a buzzer, click this button and your buzzer will start to
Supervisor / Power User
sound even if there's no alarm event.
/ Normal User
If no alarm-out device is connected, the internal buzzer of the camera will start to
sound.
Supervisor Click to switch the audio-out on / off.
Click to start / stop video recording.
Supervisor / Power User
/ Normal User
A micro SD card must be inserted for this function to work properly.
Click and drag the slider to adjust the brightness of the LED light.
Supervisor / Power User
When the brightness level is adjusted to 100%, the system will enable the
/ Normal User
brightness of 100% for 3 minutes, reduce to 50% for 1 minute, and return to 100%
for 3 minutes, etc. This is to protect and extend the lifetime of the white LED.
5
QuickTime is Apple Inc.'s multimedia software. You need to have QuickTime
installed in your operating system before selecting "QuickTime". When it is
selected, you will be promoted to enter the user name and password to access
the camera.
VLC
 HD720P (1280 x 720)
 VGA (640 x 480)
