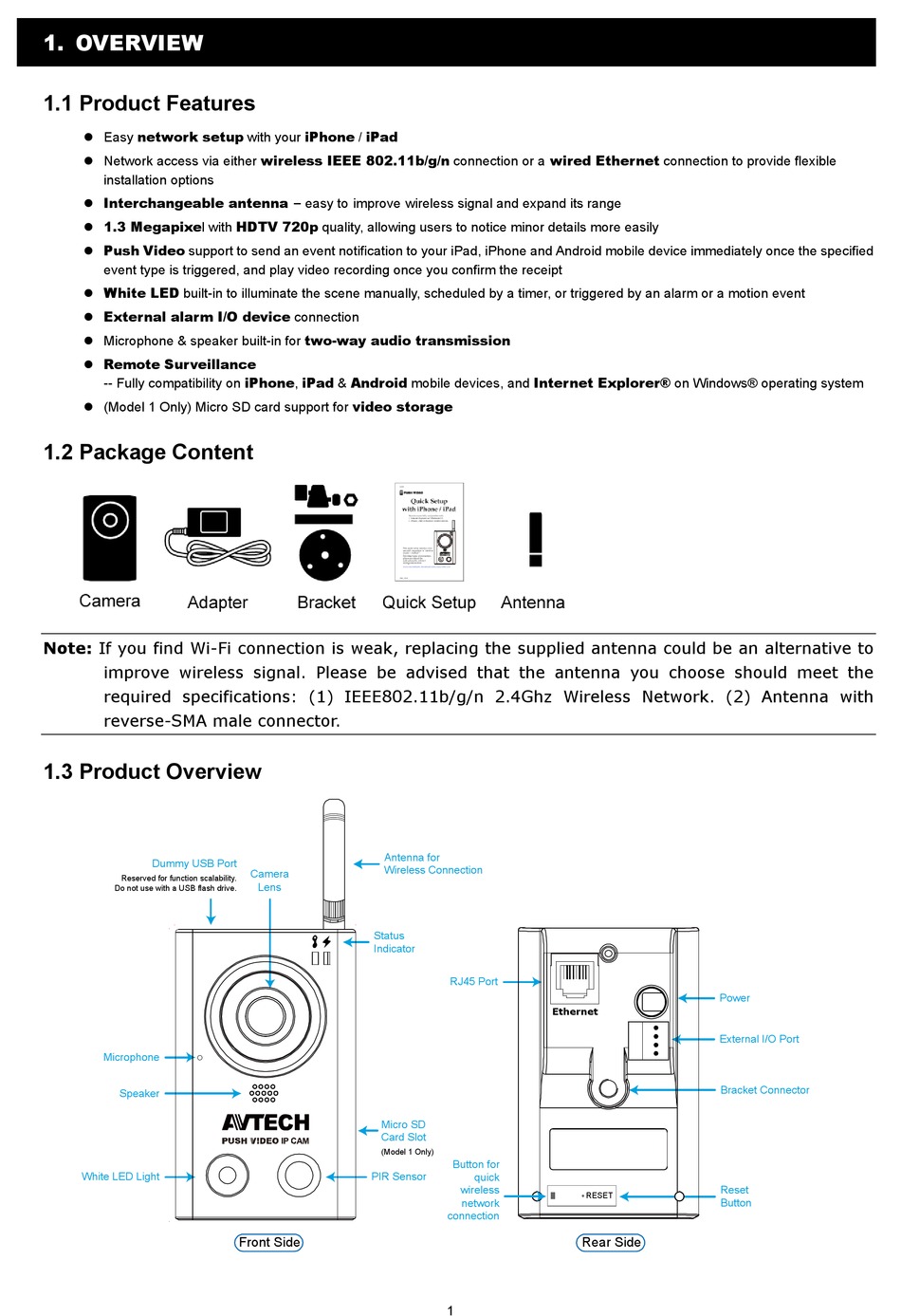

Overview; Product Features; Package Content; Product Overview - Avtech MEGAPIXEL WIRELESS NETWORK CAMERA SERIES Operation Manual

1. OVERVIEW

1.1 Product Features

 Easy network setup with your iPhone / iPad
 Network access via either wireless IEEE 802.11b/g/n connection or a wired Ethernet connection to provide flexible
installation options
 Interchangeable antenna – easy to improve wireless signal and expand its range
 1.3 Megapixel with HDTV 720p quality, allowing users to notice minor details more easily
 Push Video support to send an event notification to your iPad, iPhone and Android mobile device immediately once the specified
event type is triggered, and play video recording once you confirm the receipt
 White LED built-in to illuminate the scene manually, scheduled by a timer, or triggered by an alarm or a motion event
 External alarm I/O device connection
 Microphone & speaker built-in for two-way audio transmission
 Remote Surveillance
-- Fully compatibility on iPhone, iPad & Android mobile devices, and Internet Explorer® on Windows® operating system
 (Model 1 Only) Micro SD card support for video storage

1.2 Package Content

Note: If you find Wi-Fi connection is weak, replacing the supplied antenna could be an alternative to
improve wireless signal. Please be advised that the antenna you choose should meet the
required specifications: (1) IEEE802.11b/g/n 2.4Ghz Wireless Network. (2) Antenna with
reverse-SMA male connector.

1.3 Product Overview

Dummy USB Port
Reserved for function scalability.
Do not use with a USB flash drive.
Microphone
Speaker
White LED Light
Antenna for
Wireless Connection
Camera
Lens
Status
Indicator
Micro SD
Card Slot
(Model 1 Only)
PIR Sensor
Front Side
RJ45 Port
Ethernet
Button for
quick
wireless
RESET
network
connection
Rear Side
1
Power
External I/O Port
Bracket Connector
Reset
Button
