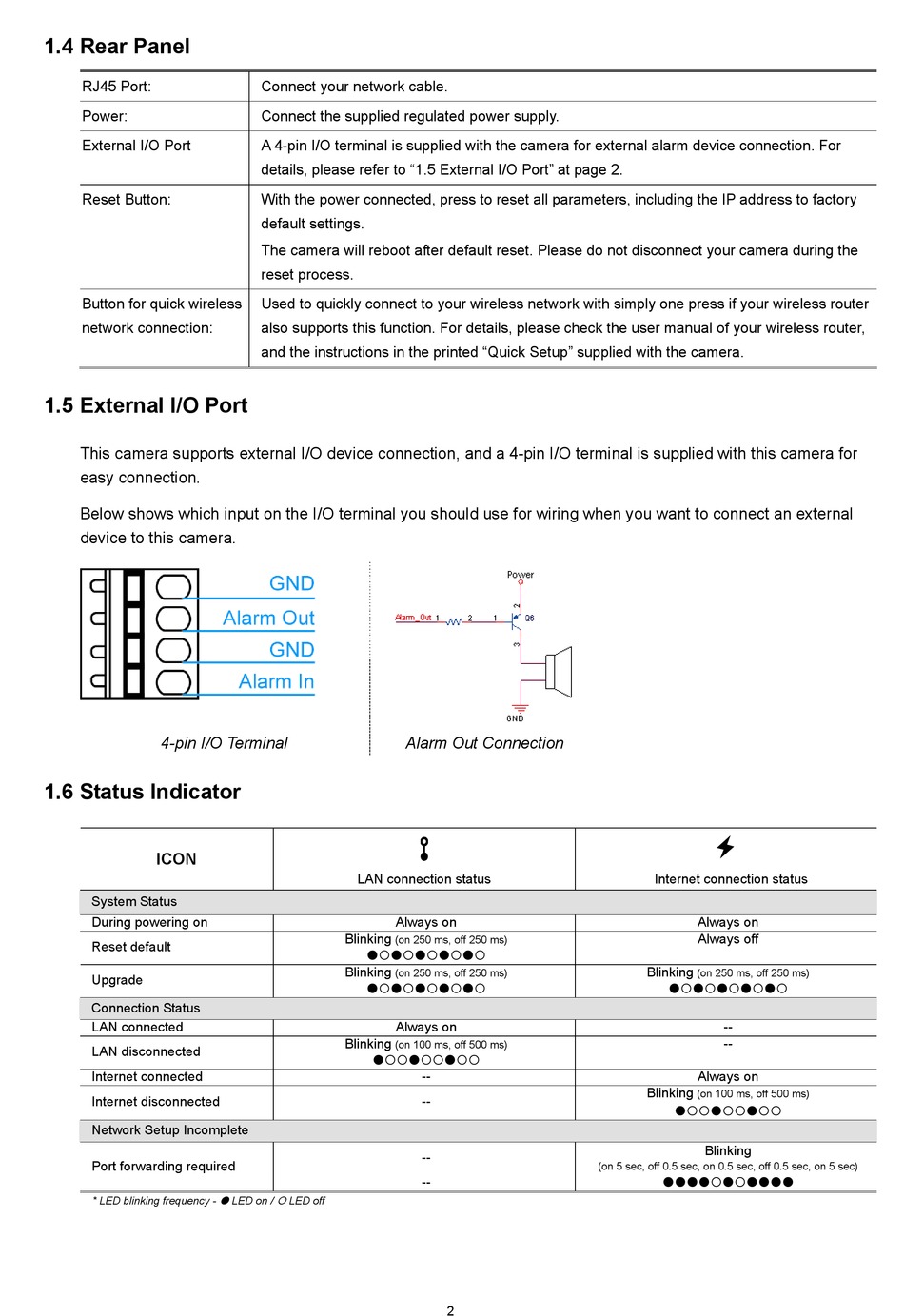

1.4 Rear Panel

RJ45 Port:
Power:

External I/O Port

Reset Button:
Button for quick wireless
network connection:
1.5 External I/O Port
This camera supports external I/O device connection, and a 4-pin I/O terminal is supplied with this camera for
easy connection.
Below shows which input on the I/O terminal you should use for wiring when you want to connect an external
device to this camera.
4-pin I/O Terminal

1.6 Status Indicator

ICON
System Status
During powering on
Reset default
Upgrade
Connection Status
LAN connected
LAN disconnected
Internet connected
Internet disconnected
Network Setup Incomplete
Port forwarding required
* LED blinking frequency -
Connect your network cable.
Connect the supplied regulated power supply.
A 4-pin I/O terminal is supplied with the camera for external alarm device connection. For
details, please refer to "1.5 External I/O Port" at page 2.
With the power connected, press to reset all parameters, including the IP address to factory
default settings.
The camera will reboot after default reset. Please do not disconnect your camera during the
reset process.
Used to quickly connect to your wireless network with simply one press if your wireless router
also supports this function. For details, please check the user manual of your wireless router,
and the instructions in the printed "Quick Setup" supplied with the camera.
LAN connection status
Blinking

Blinking

Blinking

 LED on /  LED off
Alarm Out Connection
Always on
(on 250 ms, off 250 ms)
(on 250 ms, off 250 ms)
Always on
(on 100 ms, off 500 ms)
--
--
--
--
2
Internet connection status
Always on
Always off
Blinking
(on 250 ms, off 250 ms)

--
--
Always on
Blinking
(on 100 ms, off 500 ms)

Blinking
(on 5 sec, off 0.5 sec, on 0.5 sec, off 0.5 sec, on 5 sec)

