Hardware Installation of the RLXIC-EH
User Manual

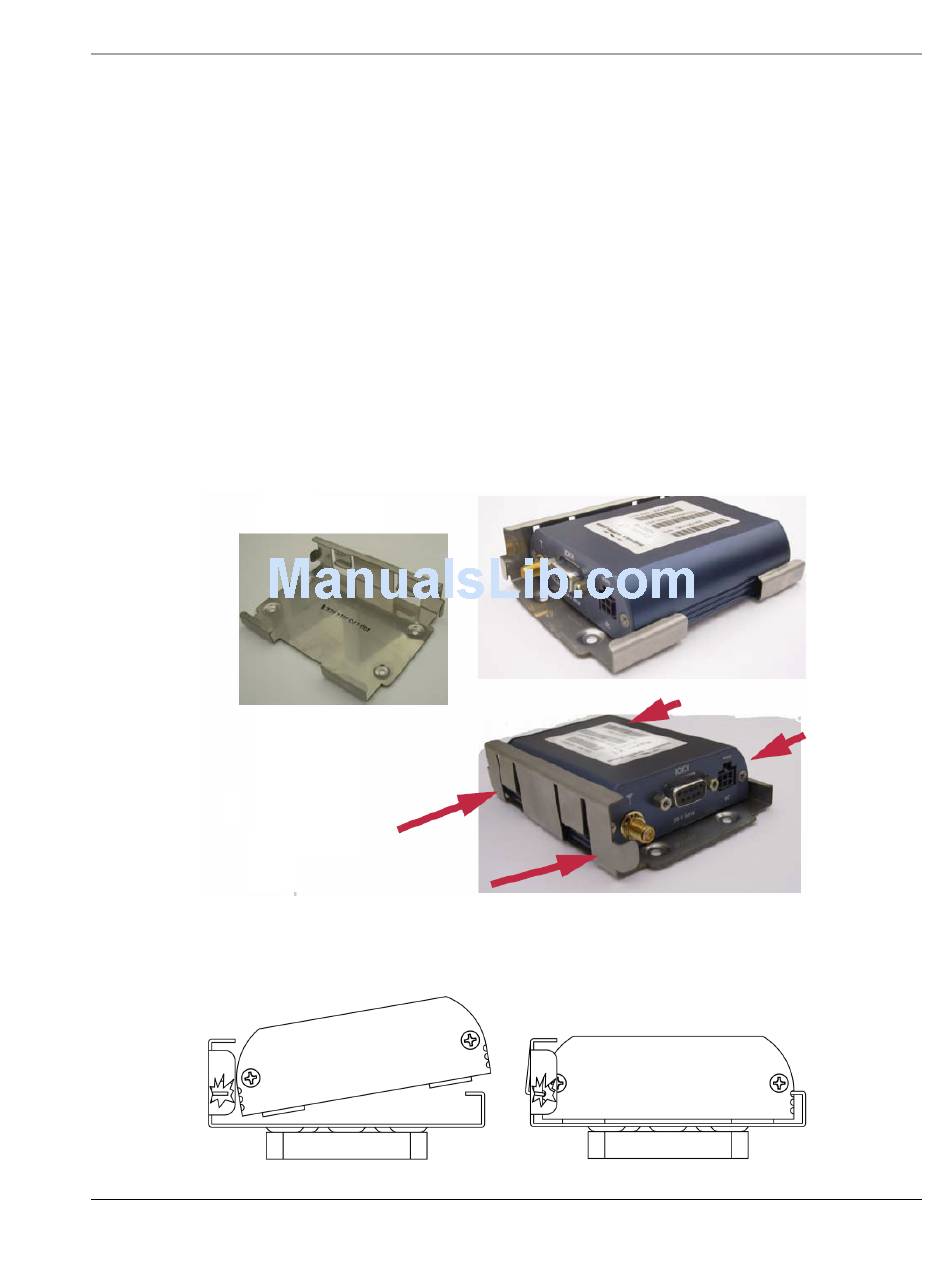

To remove, press on the two edges of the modem and the brackets, as pointed
by arrows in the diagram provided below. By doing this, the modem will snap out
of the mounting bracket.
To mount the bracket on the DIN-rail, follow these steps
1 Position the mounting bracket on a 35 x 7.5mm DIN rail at a slight angle with
the hook on the left side of the bracket hooked into the right side of the unit
on the left.
2 Rotate the bracket onto the DIN rail with the top of the rail hooked under the
lip on the rear of the bracket.
3 Press the bracket down onto the DIN rail until flush. The locking tab snaps
into position and locks the bracket to the DIN rail.
4 If the bracket does not lock in place, use a screwdriver or similar device to
move the locking tab down, press the bracket flush with the DIN rail and
release the locking tab to lock the bracket in place.
4.4.1 Optional Mounting Bracket
4.4.2 Mounting Bracket Installation
