Rear Panel

The 3-pronged power plug, 2 fans, DC power input, 2 Gigabit Copper/SFP combo port,

and one RS-232 console port are located at the rear Panel of the CWGE2FE24MODMS

switch as shown in Figure 2-1. The Switch will work with AC power in the range of

100-240V AC, 50-60Hz.

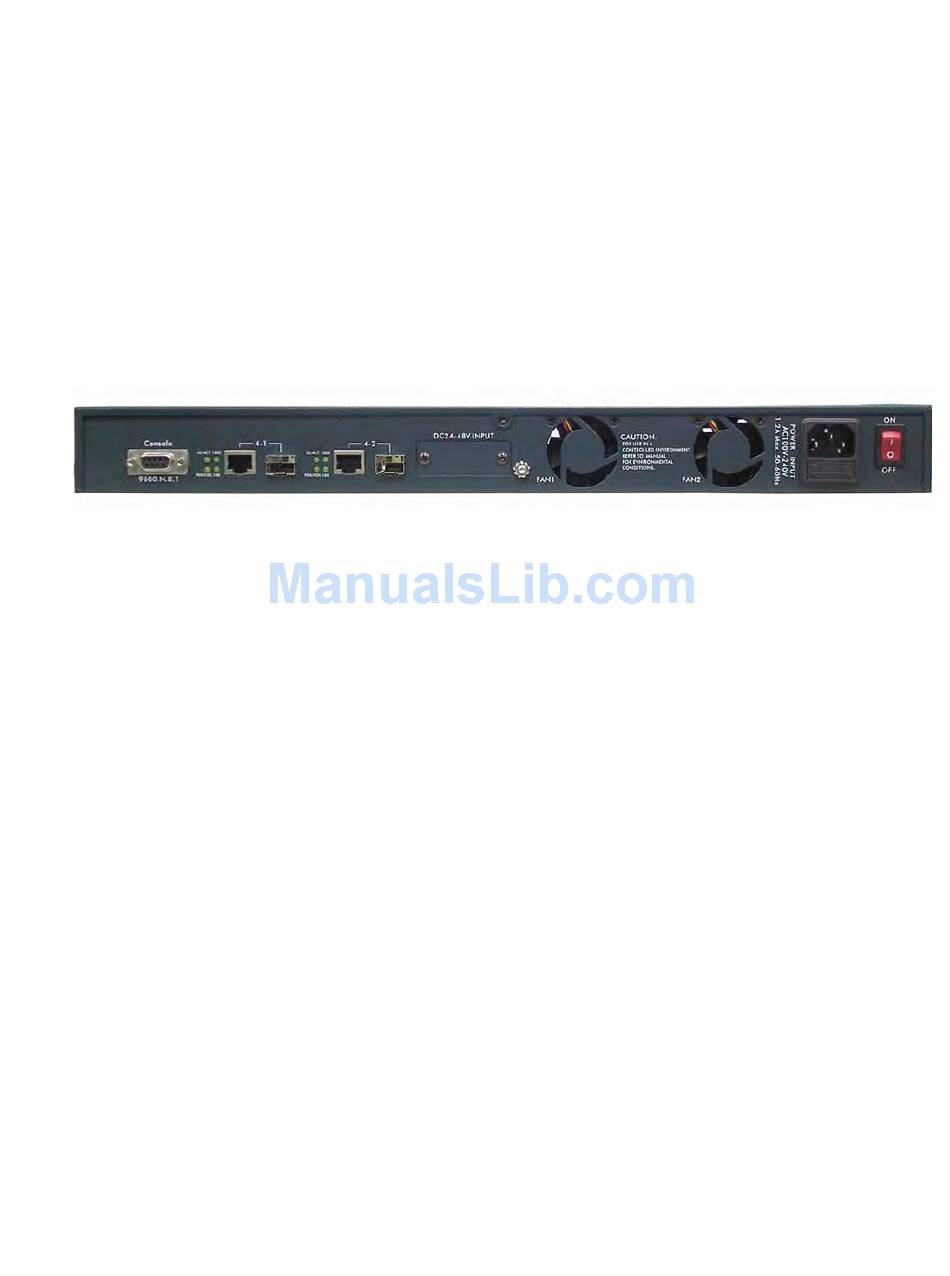

The Rear Panel

of the CWGE2FE24MODMS switch
