Mac Filtering - Comnet CWGE2FE24MODMS Installation And Operation Manual

You can add static MAC Address in switch MAC table.
1. MAC Address: Enter the MAC Address of the port that should permanently forward
traffic, regardless of the device network activity.
2. VID: Type in VID of the MAC Address.
3. Port No.: pull down the selection menu to select the port number.
4. Select
5. If you want to delete the MAC Address from filtering table, select the MAC Address
and select

MAC Filtering

By filtering MAC Addresses, the switch can easily filter pre-configure the MAC Address
and reduce the un-safety. You can add and delete filtering MAC Address.
.
.

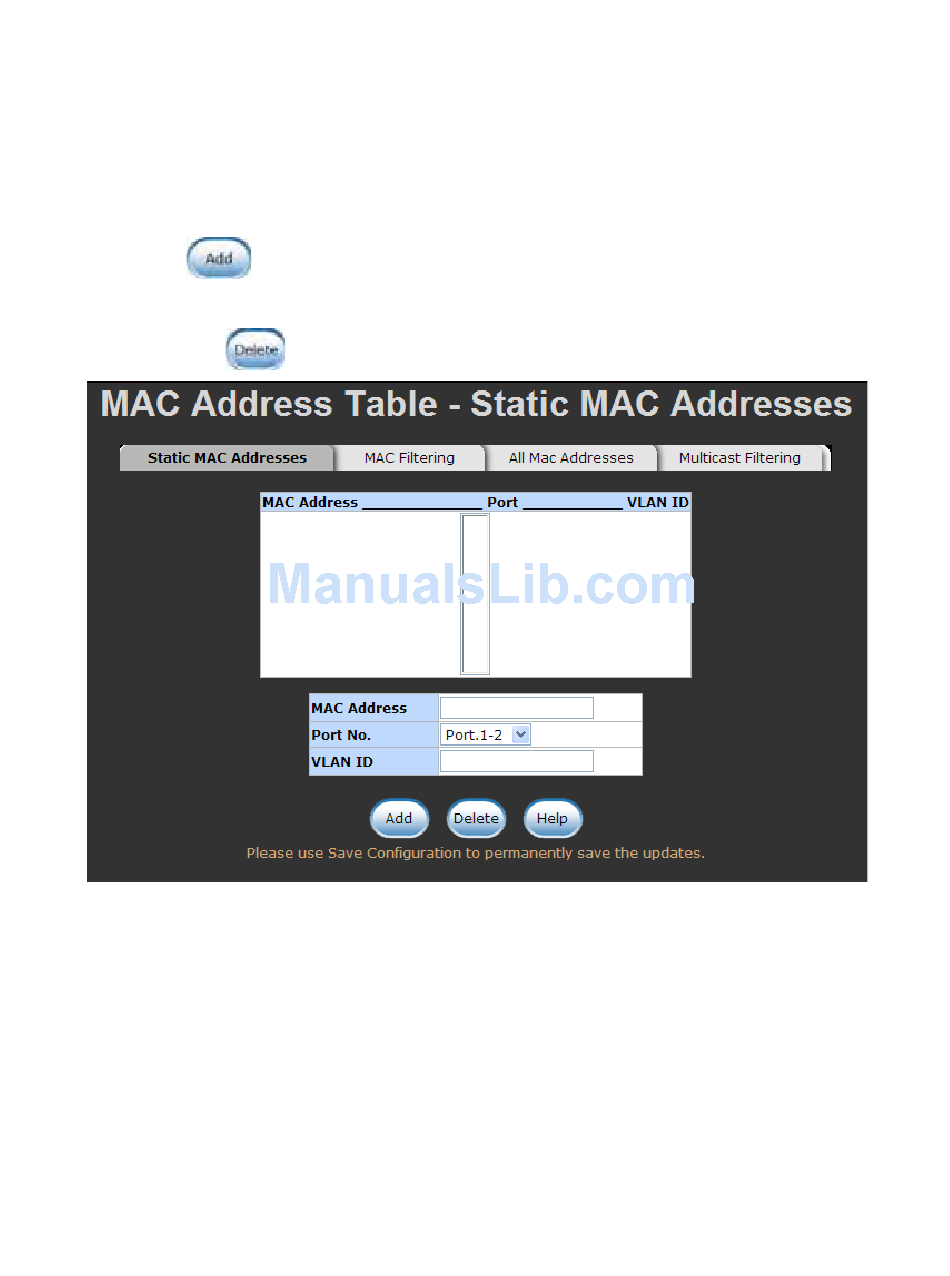

Static MAC Addresses interface
69
