two or more bridges (i.e. it is served by a shared medium LAN segment). This function
allows the P2P status of the link to be manIP Address ulated administratively. True is
P2P enabling. False is P2P disabling.
4. Admin Edge: The port directly connected to end stations cannot create bridging loop
in the network. To configure the port as an edge port, set the port to "True" status.
5. Admin Non Stp: The port includes the STP mathematic calculation. True is not
including STP mathematic calculation. False is including the STP mathematic
calculation.
6. Select .

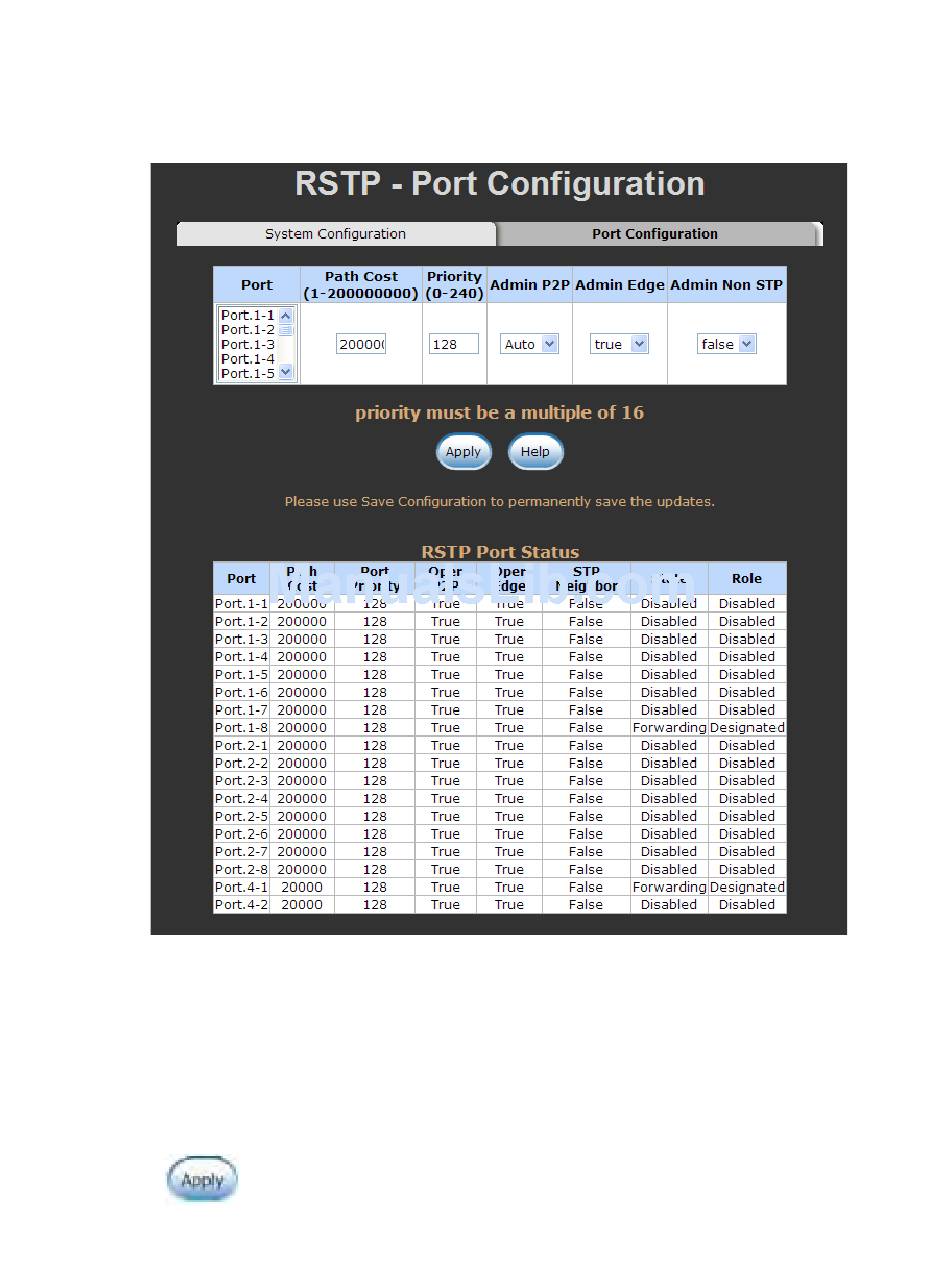

RSTP Port Configuration interface
55
