Rear Panel

The Console port and 3-pronged power plug are located at the rear panel of
the CWFE8TX8MS as shown in Figure 2-8. The CWFE8TX8MS will work with
current in the range 100-240V AC, 50-60Hz.

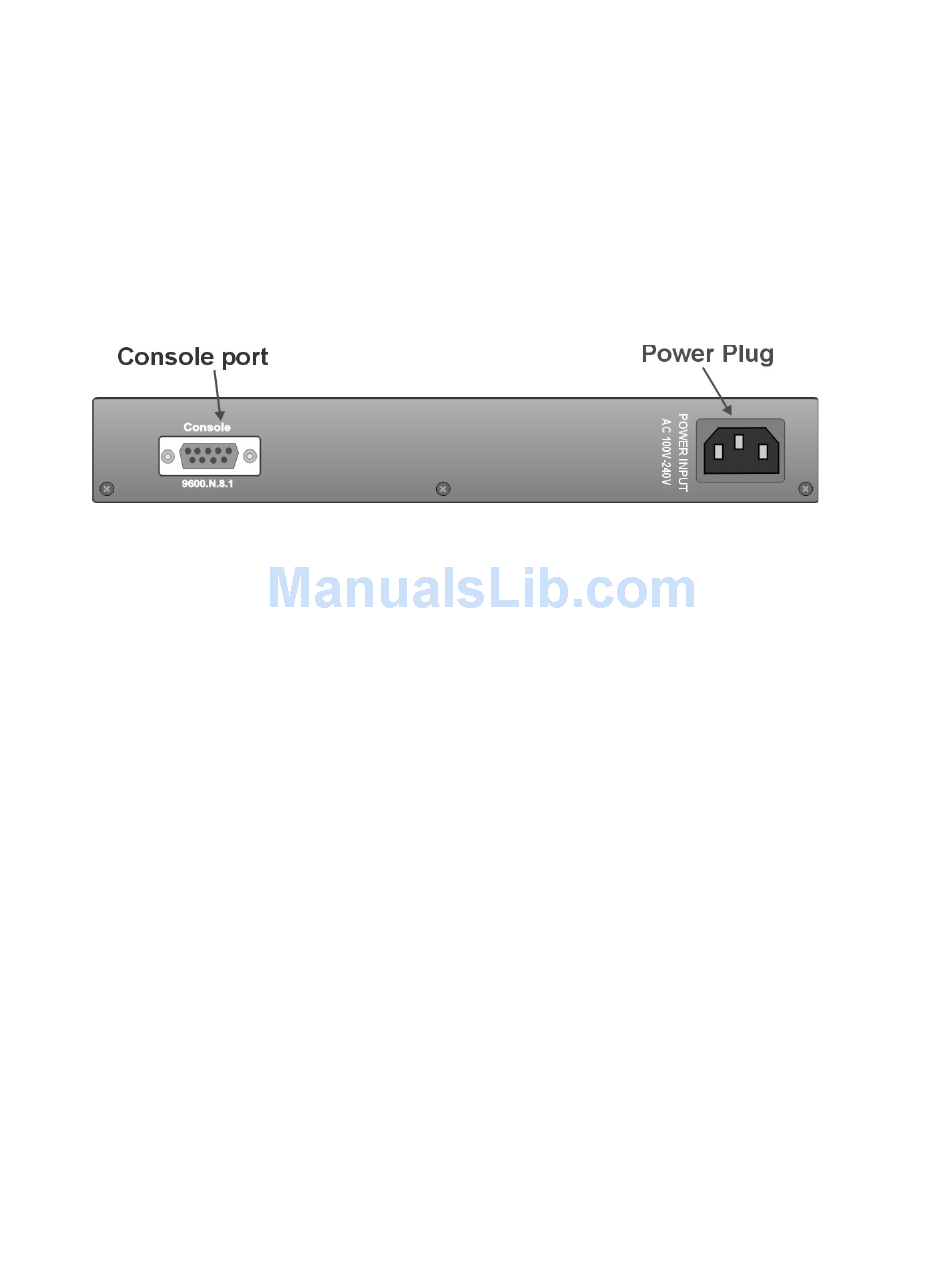

Figure 2-7 The Rear Panel of the 8TP Management Switch
Console Port: Console management can be done through the Console Port.
It requires a direct connection between the switch and an end station (PC) via
a RS-232 cable.
