1. To add a static MAC address
2. From the main menu, select administrator, then click Filter Database.
3. Click Static MAC Addresses. In the MAC address box, enter the MAC address
to and from which the port should permanently forward traffic, regardless of the
device's network activity.
4. In the Port Number box, select a port number.
5. If tag-based (IEEE 802.1Q) VLANs are set up on the switch, static addresses are
associated with individual VLANs. Type the VID (tag-based VLANs) to associate
with the MAC address.
6. Click add

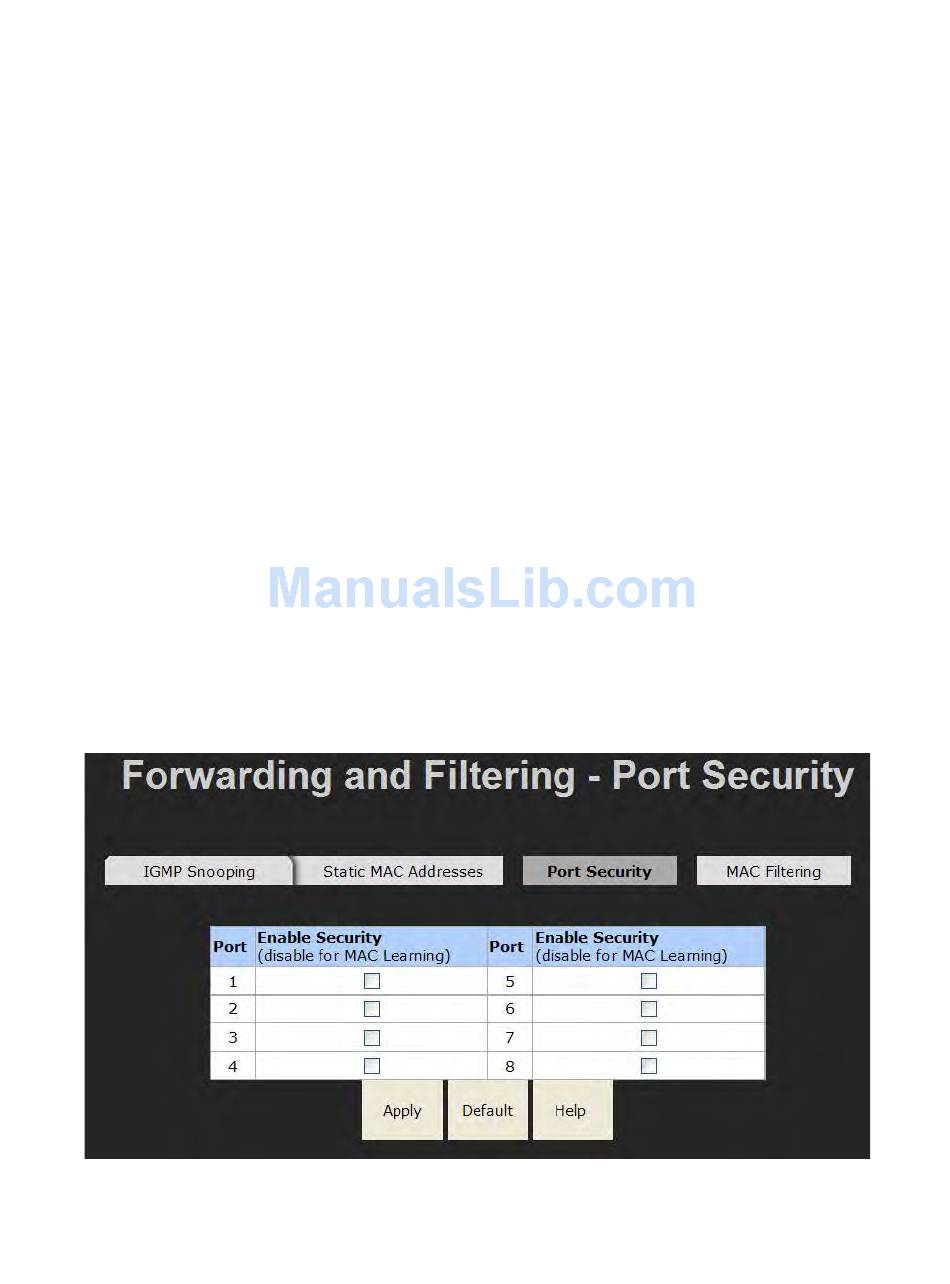

5.4.6.3 Port Security

A port in security mode will be "locked" without permission of address learning.
Only the incoming packets with SMAC already existing in the address table can be
forwarded normally. User can disable the port from learning any new MAC
addresses, then use the static MAC addresses screen to define a list of MAC
addresses that can use the secure port. Enter the settings, then select Submit to
apply the changes on this page.
