LED Indicators

There are three LED-Indicators (100M, LNK/ACT, FDX/COL) for each UTP port.
The following table provides descriptions of the LED statuses and meaning.
They provide a real-time indication of systematic operation status.
LED Status
Power On
On
100M
Off
On
LNK /
Blinks
ACT
Off
On
FDX /
Blinks
COL
Off
Table 2-1. The description of LED Indicator

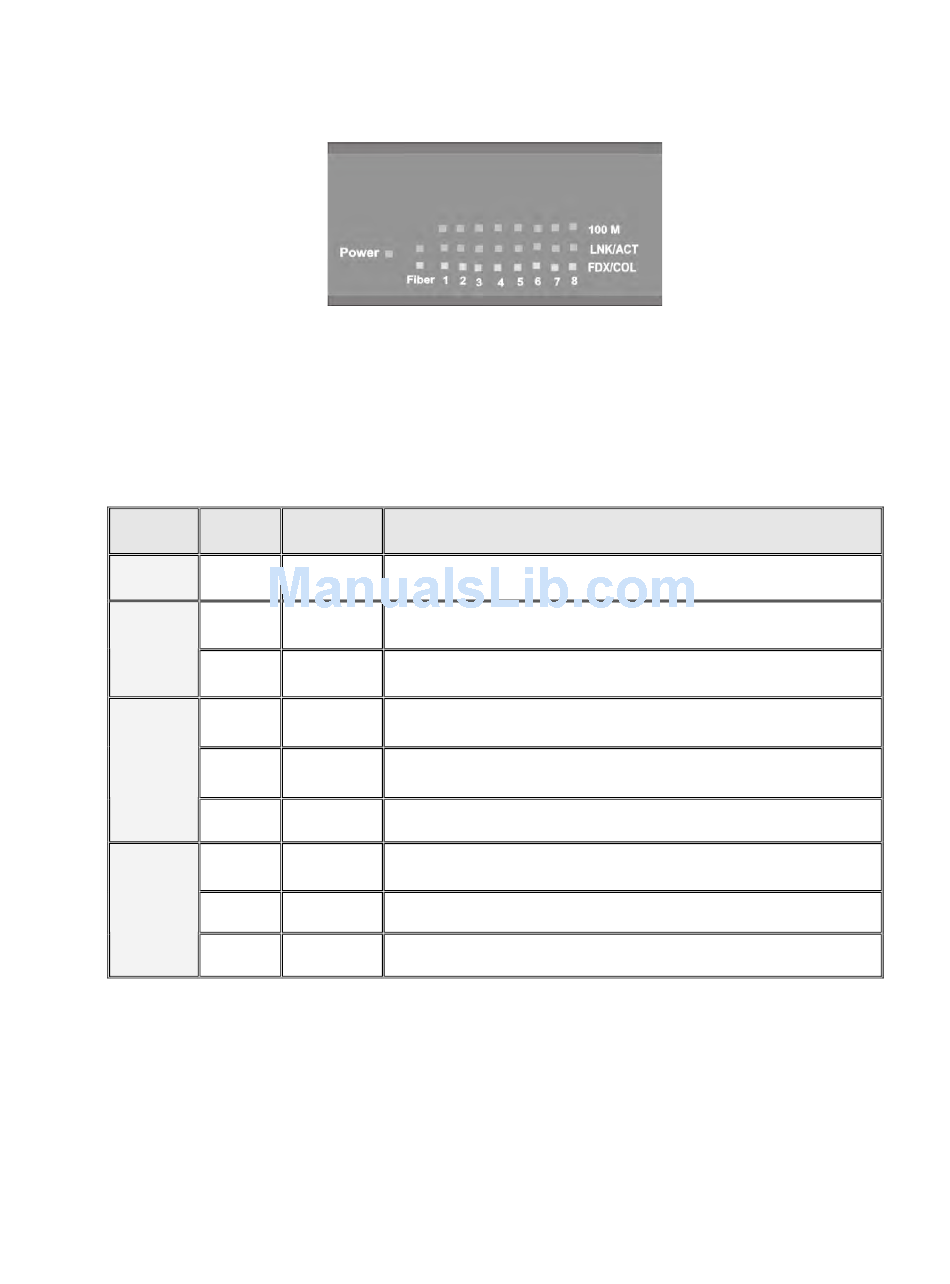

Figure 2-6. LED Indicators
Color Description
Green Power On
Green The port is operating at the speed of 100Mbps.
In 10Mbps mode or no device attached
Green The port is successfully connecting with the device.
Green The port is receiving or transmitting data.
No device attached.
Orange The port is operating in Full-duplex mode.
Orange Collision of Packets occurs in the port.
Half-duplex mode or no device attached.
