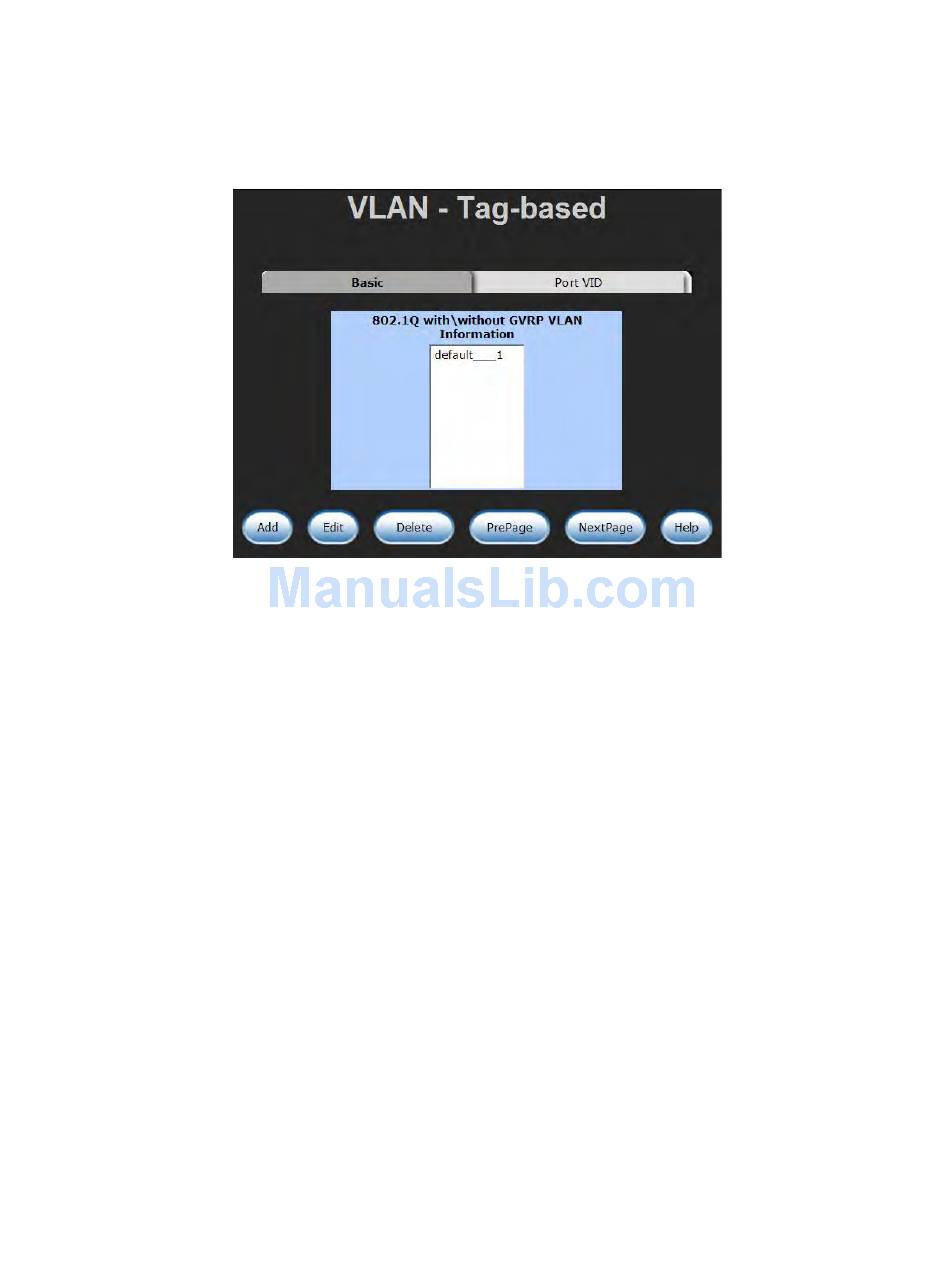

5.4.7.1 Basic
Create a VLAN and add tagged member ports to it.
1. From the main menu, click administrator -- VLAN configuration.
2. Click Add
3. Type a name for the new VLAN.
4. Type a VID (between 2-4094). The default is 1.
5. From the available ports box, select the ports to add to the switch and select
Add.
6. Select Apply
5.4.7.2 Port VID
Configure port VID settings
From the main Tag-based (IEEE 802.1Q) VLAN page, click Port VID Settings.
Port VID (PVID)
Sets the Port VLAN ID that will be assigned to untagged traffic on a given port. For
example, if port 9's default PVID is 100, all untagged packets on port 9 will belong
to VLAN 100. The default setting for all ports is VID 1.
