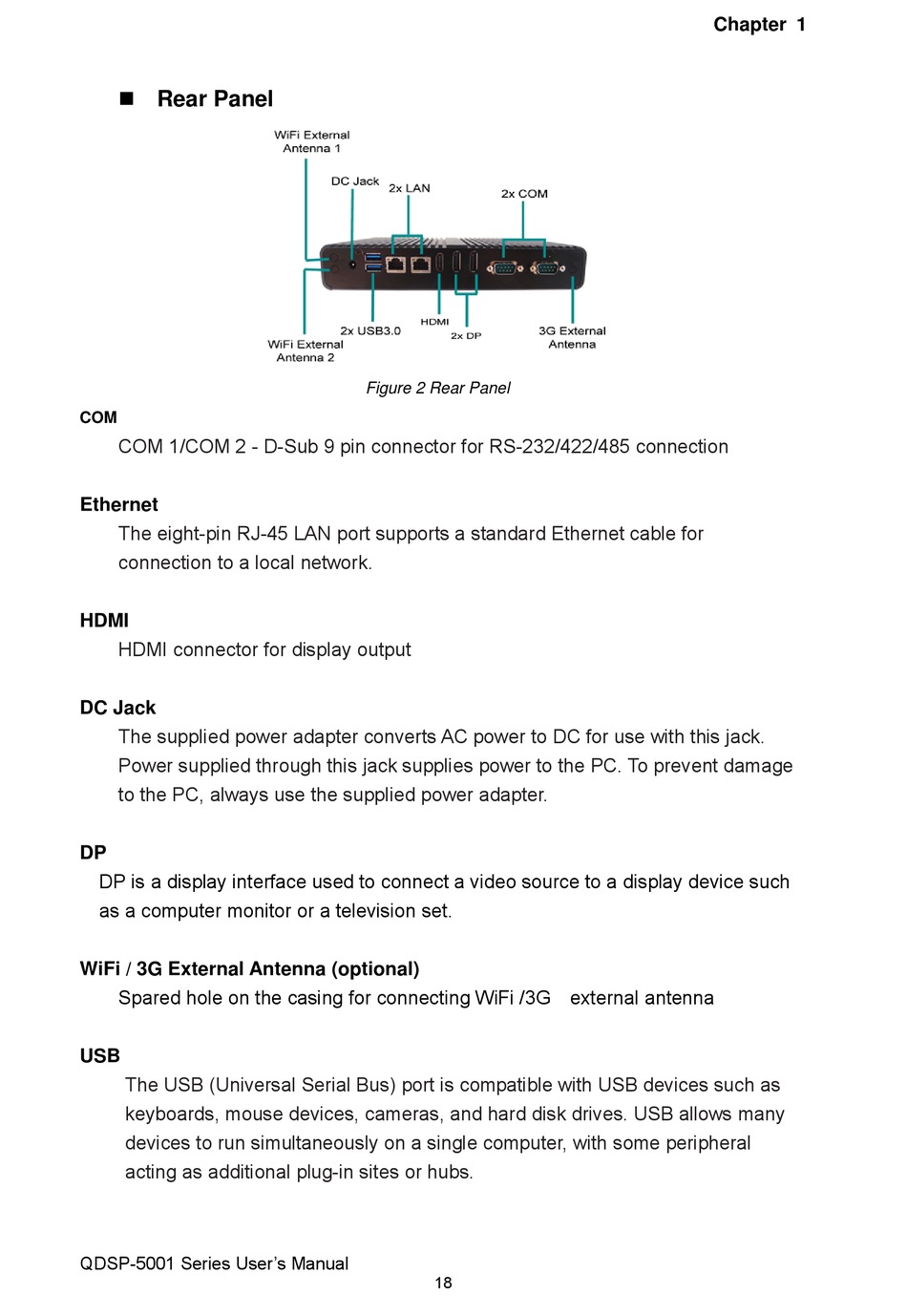

Figure 2 Rear Panel - Quanmax QDSP-5001 Series User Manual

 Rear Panel
COM
COM 1/COM 2 - D-Sub 9 pin connector for RS-232/422/485 connection
Ethernet
The eight-pin RJ-45 LAN port supports a standard Ethernet cable for
connection to a local network.
HDMI
HDMI connector for display output
DC Jack
The supplied power adapter converts AC power to DC for use with this jack.
Power supplied through this jack supplies power to the PC. To prevent damage
to the PC, always use the supplied power adapter.
DP
DP is a display interface used to connect a video source to a display device such
as a computer monitor or a television set.
WiFi / 3G External Antenna (optional)
Spared hole on the casing for connecting WiFi /3G external antenna
USB
The USB (Universal Serial Bus) port is compatible with USB devices such as
keyboards, mouse devices, cameras, and hard disk drives. USB allows many
devices to run simultaneously on a single computer, with some peripheral
acting as additional plug-in sites or hubs.
