Figure 5 Connecting Usb Mouse & Keyboard; Figure 6 Network Cable With Rj45 Connector - Quanmax QDSP-5001 Series User Manual

Connecting USB mouse & keyboard
Your QDSP-5001 does not come with a keyboard and mouse, but you can use any
USB keyboard or mouse with your computer.
2xUSB 3.0
Using a third-party USB mouse or keyboard may require software drivers.
Check the manufacturer's website for the latest software drivers.

Connecting to a network device
Connect one end of a network cable to the LAN port on the system rear panel
and the other end to a hub or switch.
QDSP-5001 Series User's Manual
2x USB 2.0
2xUSB 3.0

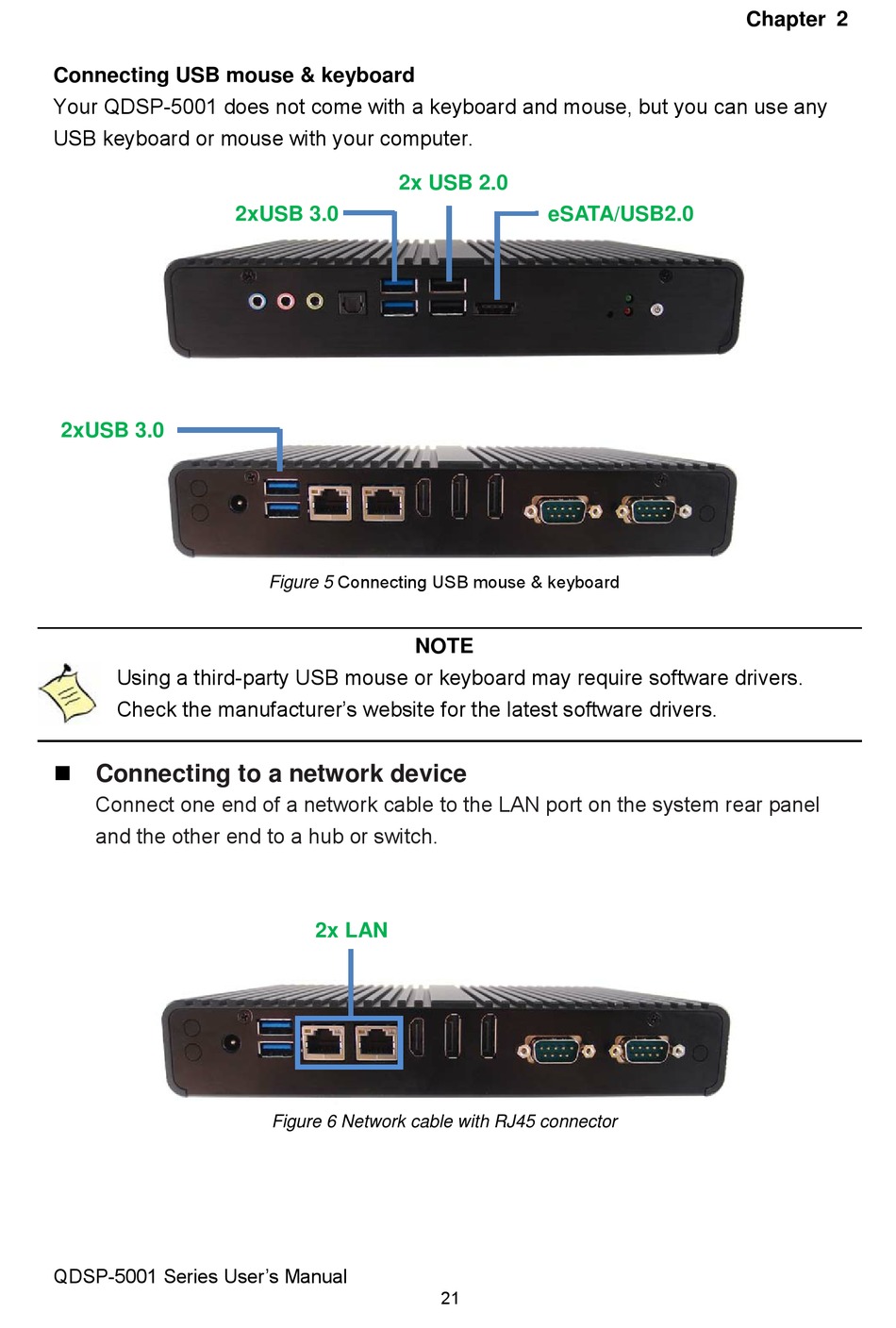

Figure 5 Connecting USB mouse & keyboard
2x LAN

Figure 6 Network cable with RJ45 connector

eSATA/USB2.0
NOTE
21
Chapter 2
