 Rear Panel
Ethernet
The eight-pin RJ-45 LAN port supports a standard Ethernet cable for
connection to a local network.
DC Jack
The supplied power adapter converts AC power to DC for use with this jack.
Power supplied through this jack supplies power to the PC. To prevent damage
to the PC, always use the supplied power adapter.
Kensington Lock Slot
The slot is used for attaching a lock-and-cable apparatus. Locks are generally
secured in place with a key or combination lock attached to a rubberized metal
cable.
HDMI
HDMI connector for display output
DVI-D
DVI-D is an acronym which means Digital Video Interface Digital. Essentially it
is a cable that connects two devices producing an output image on a screen.
Wi-Fi / Bluetooth
1x reserved holes for Wi-Fi / Bluetooth combo antenna connection.
QDSP-300 User's Manual

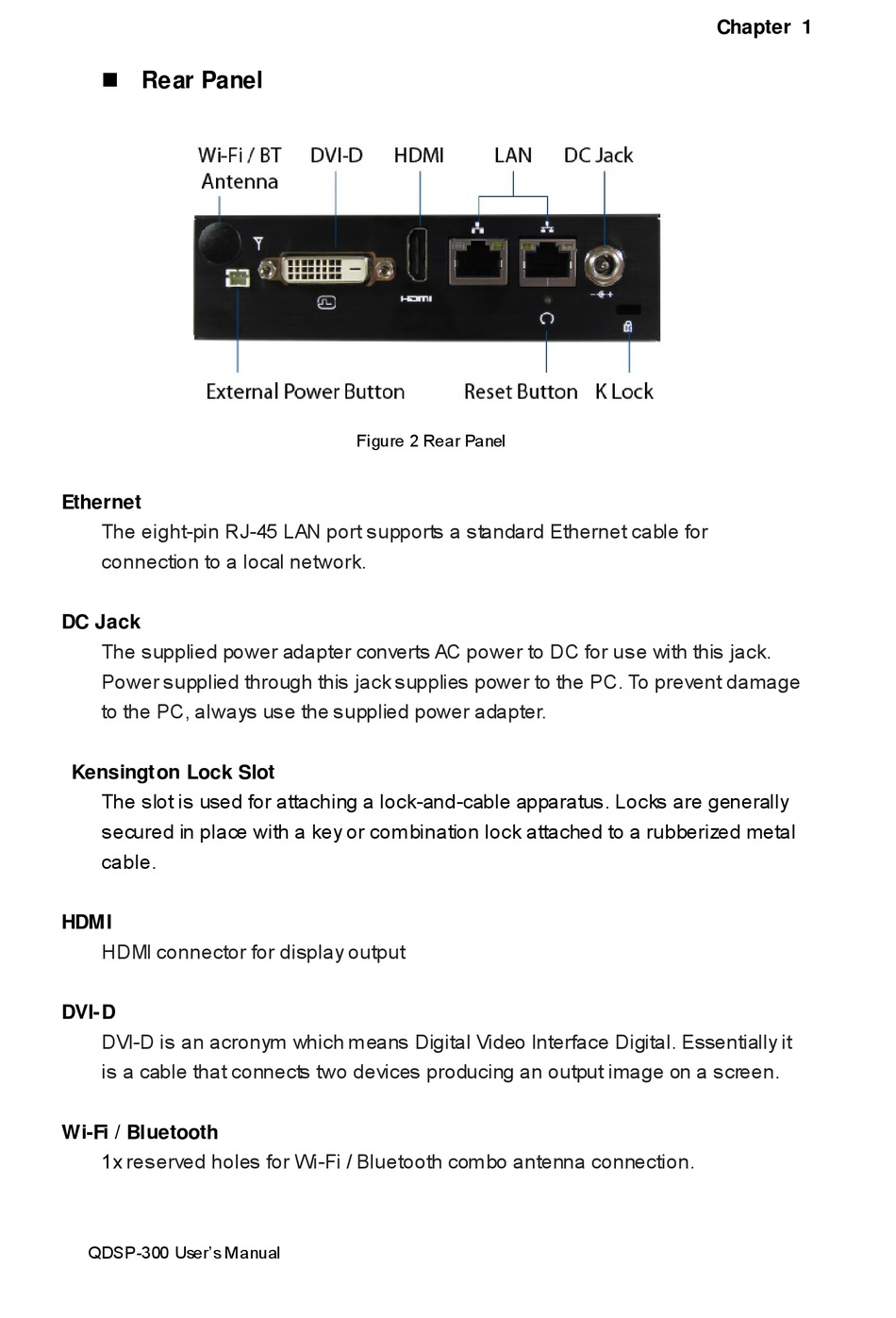

Figure 2 Rear Panel
