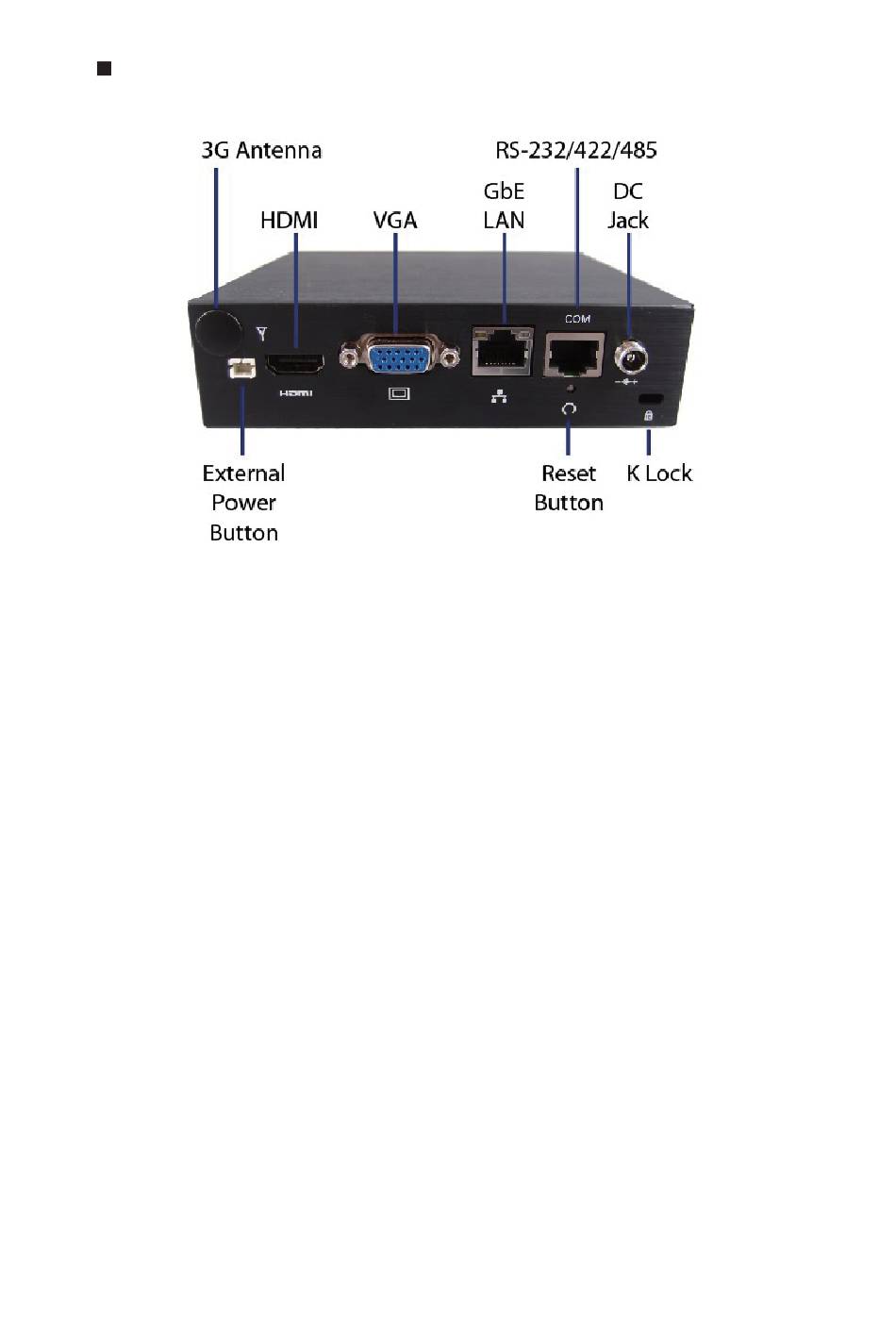

Figure 2 Rear Panel - Quanmax QDSP-0200 Series User Manual

Rear Panel
Ethernet
The eight-pin RJ-45 LAN port supports a standard Ethernet cable for
connection to a local network.
DC Jack
The supplied power adapter converts AC power to DC for use with this jack.
Power supplied through this jack supplies power to the PC. To prevent damage
to the PC, always use the supplied power adapter.
Kensington Lock Slot
The slot is used for attaching a lock-and-cable apparatus. Locks are generally
secured in place with a key or combination lock attached to a rubberized metal
cable.
HDMI
HDMI connector for display output
VGA
D-Sub 15 pin VGA connector for display output
QDSP-0200 Series User's Manual

Figure 2 Rear Panel
