Product Specifications; Table 1 Qdsp-5001 Series Specification - Quanmax QDSP-5001 Series User Manual

 Product Specifications
Dimensions
Chipset
CPU support
Memory
BIOS
Storage
Front IO
Rear IO
Expansion Slot
TPM / iAMT
OS Support
Hardware Monitor
Watchdog Timer
Power
Temperature /
Humidity
Mounting
Certifications
QDSP-5001 Series User's Manual
220 x 153.3 x 38 mm (W x D x H)
®
Intel HM76 Express Chipset
®
QDSP-5001-Intel 3rd generation Core i5 Processor 3337U
®
QDSP-5002-Intel 3rd generation Core i3 Processor 3227U
®
QDSP-5004-Intel Celeron
®
QDSP-5005- Intel Celeron
2x Single Channel DDR3 1333/1600MHz SODIMM support (16 GB max)
AMI Plug & Play SPI BIOS
1x 2.5" SSD
1x eSATA and USB 2.0 combo connector and 1x mSATA
Realtek ALC662 HD Codec w/ 2W Audio Amplifier, Mic-In, Line-In, Line-Out
■
1x S/PDIF Output
■
1x eSATA and USB 2.0 combo supported
■
2x USB 2.0 2x USB 3.0
■
1x Power Button with Power LED1x Storage HDD status LED ( RED )
■
1x Wifi /3G status LED ( Green )
■
1x Clear CMOS
■
1x DC JACK
■
1x HDMI , 2x DP
■
2x RJ-45 GbE ports (Realtek RTL8111E/ Intel 82579 )PXE / WOL supported
■
2x USB 3.0, 2x COM Ports support RS-232/422/485
■
2x WiFi External Antennas ( optional )
■
1x 3G External Antenna ( optional )
■
2x Mini-PCIe slots (SIM Card socket supported)
TPM, iAMT supported
Windows 7/ Windows 8 / Linux
Operating voltage, CPU temperature
1-255 step, can be set with software on Super I/O
DC 19V Input
Operating: 0°C to 40°C, 0%-90%, non-condensing
Storage: -20°C to 80°C, 0%-90%, non-condensing
Optional VESA-mount and Wall-Mount
CE, FCC Class A

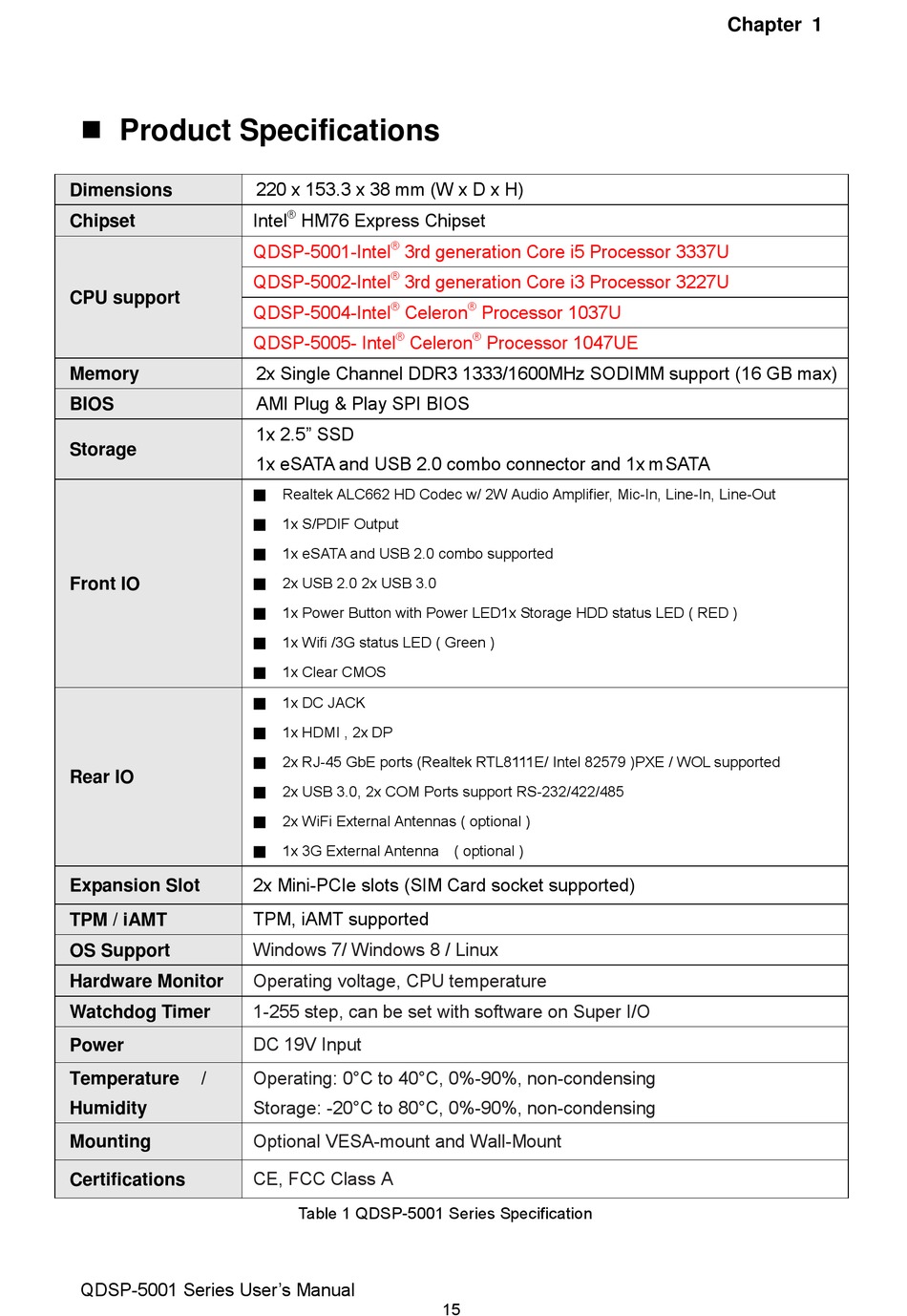

Table 1 QDSP-5001 Series Specification

®
Processor 1037U
®
Processor 1047UE
