NTI RACK MOUNT CONSOLE TERMINAL WITH CONSOLE SWITCH

MATERIALS

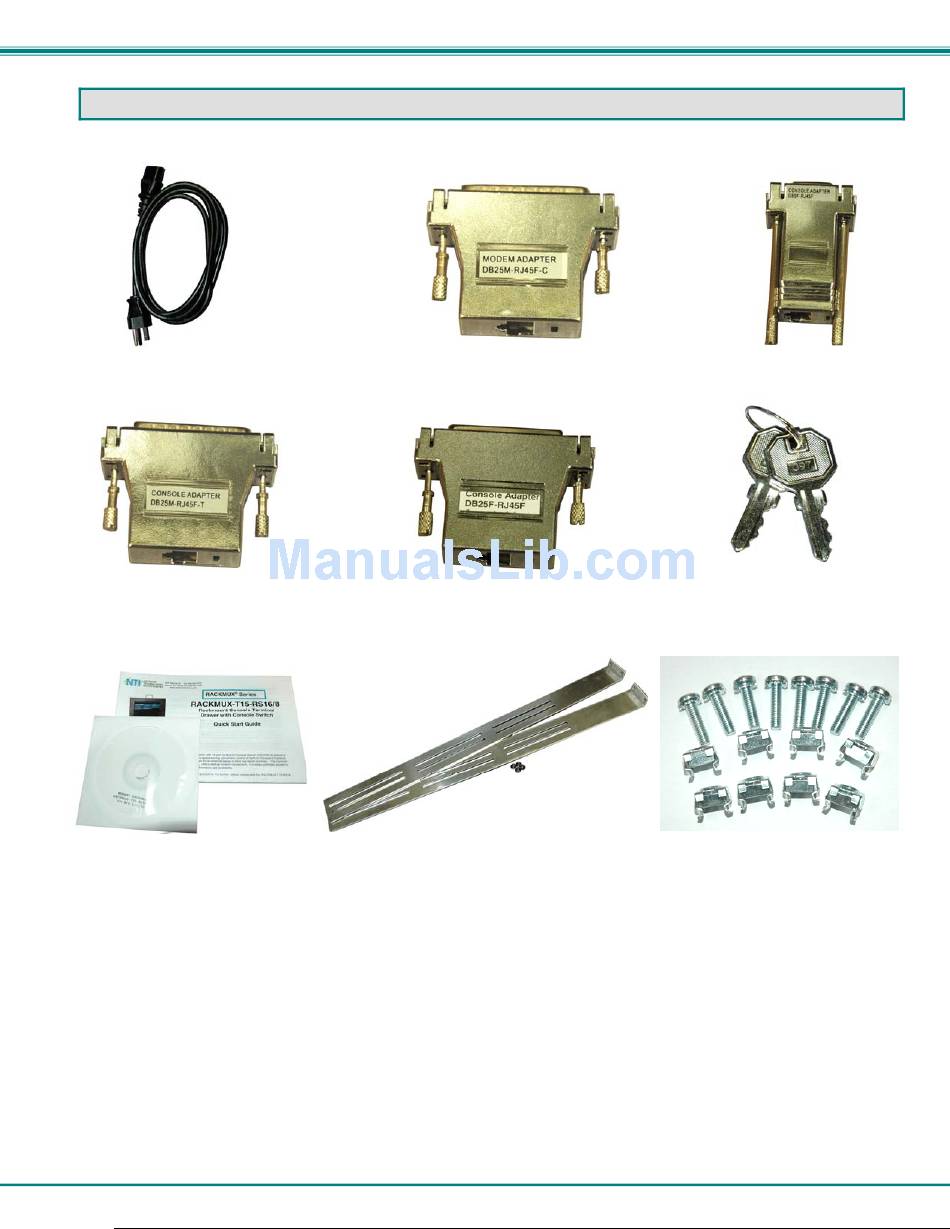

Materials Supplied with the NTI RACKMUX-T15-CS16 Rackmount Console Terminal Drawer with Console Switch:
IEC Powercord (country specific)
+6
RJ45F-T – DB25M
Console Adapter
CD and Quick Start Guide
Materials Not Supplied, but REQUIRED:
Serial cable with at least one RJ45 male end for connection to the Console Switch from each device to be connected. See
Interconnection Cable Wiring Method on page 29 for cable pinout.
Note: In order to comply with FCC standards, the SERIMUX requires the use of a shielded Category 5 cable connected to
the Ethernet Interface
DB25M-RJ45F-C
Modem Adapter
DB25F- RJ45F
Console Adapter
2 rear mounting brackets w/ 4 nuts
3
DB9F-RJ45F
Serial Adapter
2 Keys for Lock
8- #10-32x¾" screws and cage nuts
