The terminal program in the CPU connected to Port 1 must be configured for Xmodem protocol.

1. Receive the binary file from the SERIMUX (for example, in HyperTerminal for Windows, use the Transfer -> Receive File

command).

2. When saving the file, choose a directory to place the file in and a name that will identify it with the extension " .bin" (i.e.

SERIMUX1_8.bin).

With the file saved, it can be restored to the SERIMUX at any time if desired.

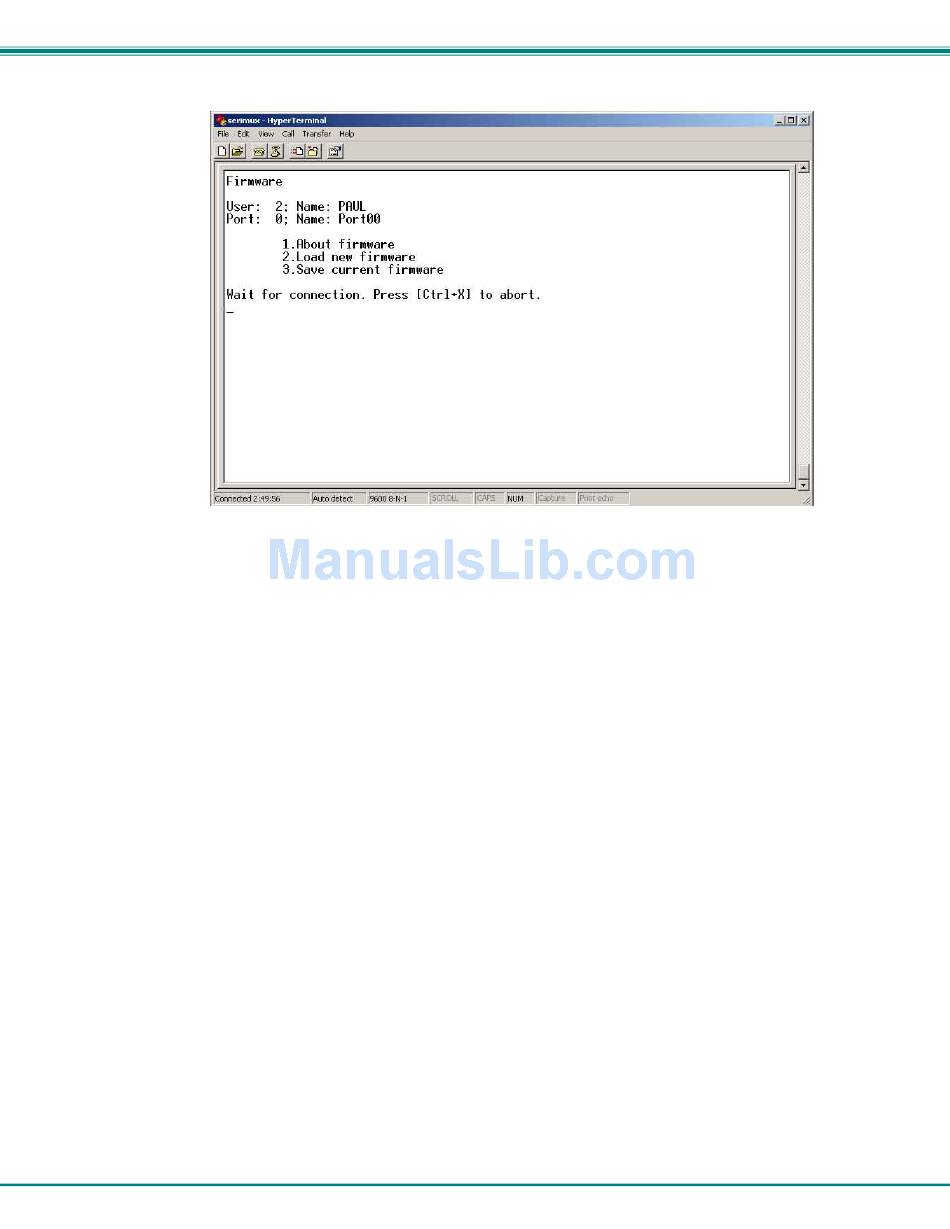

Figure 19- The SERIMUX is waiting to save its firmware
