NTI RACK MOUNT CONSOLE TERMINAL WITH CONSOLE SWITCH
FYI: RE: DscTime ( Disconnect Time)
The value shown in the Port list is derived from various sources depending on the type of connection active at the time.
- If a user is logged into a port as just a user, the time shown will be the remaining time based on the user's
timeout setting.
- If a user is logged in with administrative privileges and performing administrative tasks, the time will be based
on the administrator's timeout setting, not based on the user's timeout setting.
- If two ports are connected to each other, and one port has a lower timeout setting than the other, the lower
setting will be shown in the DscTime column and control the connection.
- Press [N] to display port information for ports greater than 16, and then [P] to see the previous page.
Press [R] to refresh the information displayed
-
Press [Esc] or [Spacebar] to return to the Administrator main menu
-

3.1.3 Port Settings

From the Administrator main menu, press [2]-[x]-[Enter]] where x is the number of the port to display the port settings for.

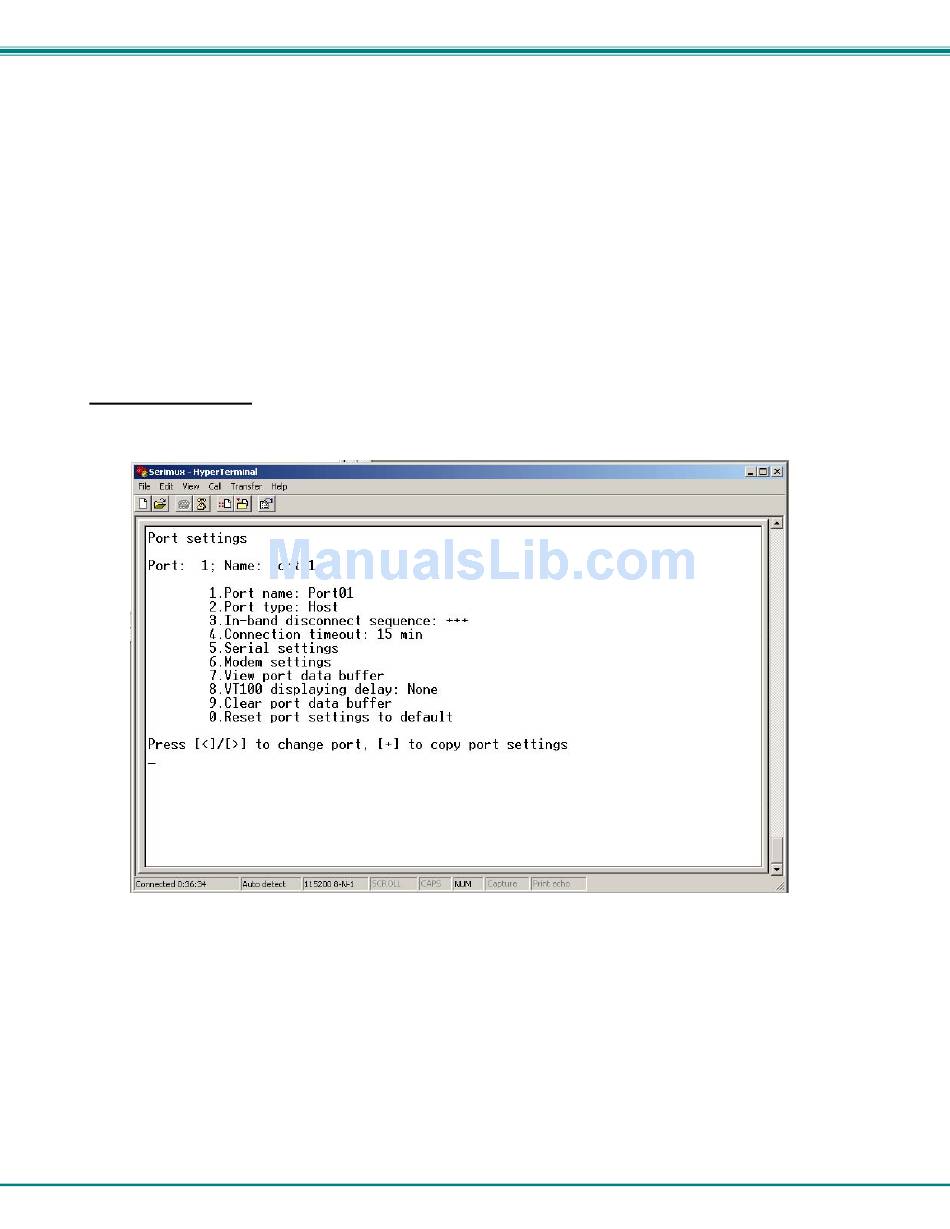

Figure 9- The Port settings menu

14
