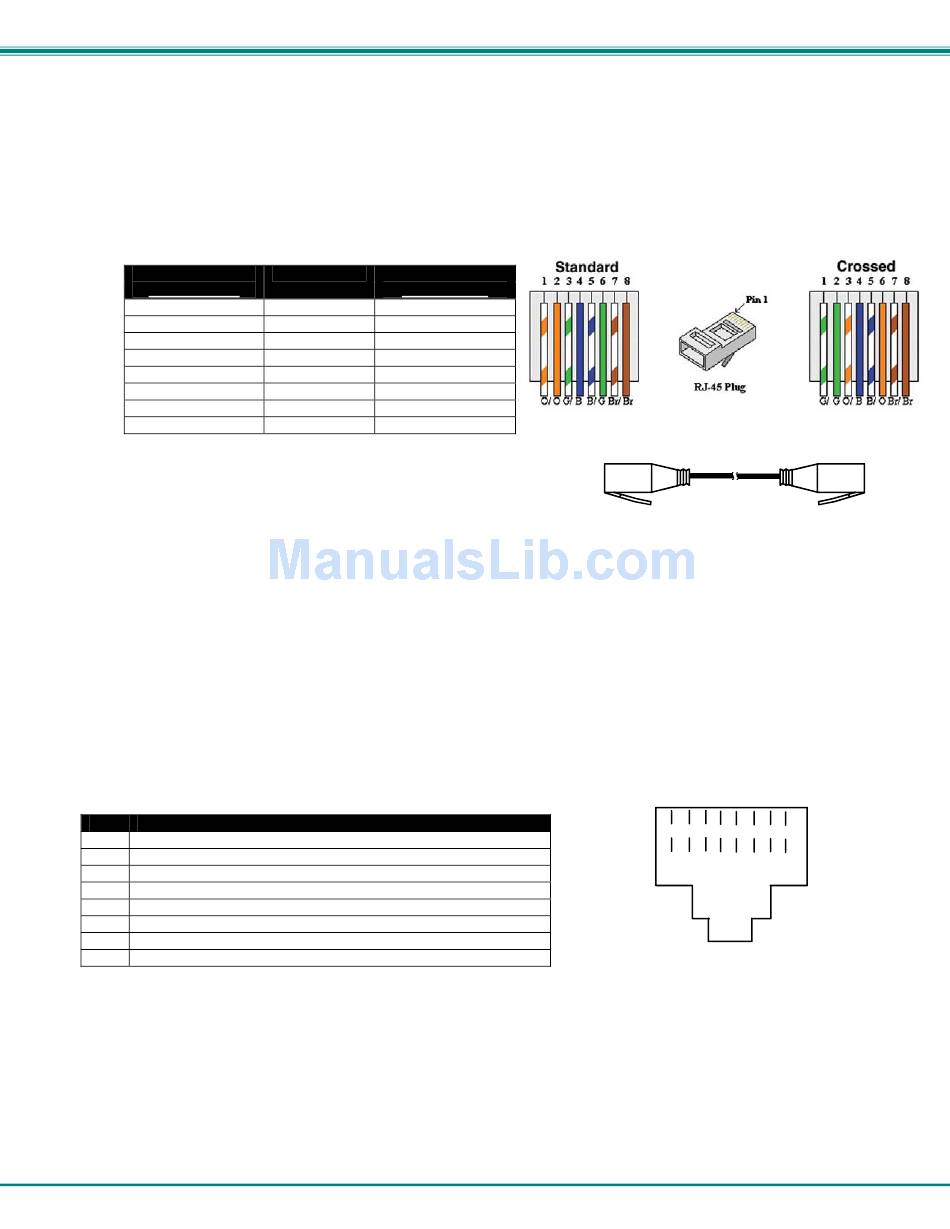

5.2 CPU-to-RACKMUX Ethernet Crossover Cable

In order to make a direct connection between a CPU and the ETHERNET connector of the RACKMUX, a crossover cable must be
used. The cable is made with CAT5 cable terminated with RJ45 connectors and wired according to the chart below.
Pin assignment at
Standard End
1
2
3
4
5
6
7
8

5.3 Serial Port Cabling

The SERIMUX simplifies cabling. The RJ45 8-pin configuration matches all SUN and Cisco RJ45 console port configurations,
enabling CAT 5 cabling without pinout concerns. Three DB-25 and one DB-9 adapters come in the package. A DB-25 male, a DB-
25 female, and a DB-9 adapter support console management applications. A DB-25 male adapter provides a modem
connection. See the cable adapter information that follows later in this chapter.
Note: The cable length restrictions common to RS-232 cables apply to the SERIMUX serial cable as well.

5.4 Serial Port Pinouts

The SERIMUX uses an RJ45 connector for serial ports. Pin assignments are as follows:
SERIMUX Ports
Pin Description
1 CTS
2 DSR
3 RxD
4 GND
5 DCD: Note Inbound signal can also be used as a second ground.
6 TxD
7 DTR
8 RTS
Wire Color Pin assignment at
Crossed End
White/Orange 3
Orange 6
White/Green 1
Blue 4
White/Blue 5
Green 2
White/Brown 7
Brown 8
Standard
End
Mating face of an RJ45 Female
72
Crossed
End
Crossover Cable
T R T R T R T R
2
1 3 4 6 7
5 8
+ - +
- + - + -
