NTI RACK MOUNT CONSOLE TERMINAL WITH CONSOLE SWITCH
Display modem settings for different port number
Press [>] (greater than symbol) to display the next port (next higher port index) modem settings, or press [<] (less than symbol) to
display the previous port modem settings.
Press [Esc] or [Space] to return to the "Port settings " menu.

3.1.3.3 Port data buffer

From the "Port settings" menu, press [7] to view the port data buffer. In this display the administrator can see the last 508
characters received and transmitted to/from any port. This way the administrator can verify that data was transferred properly
between ports.

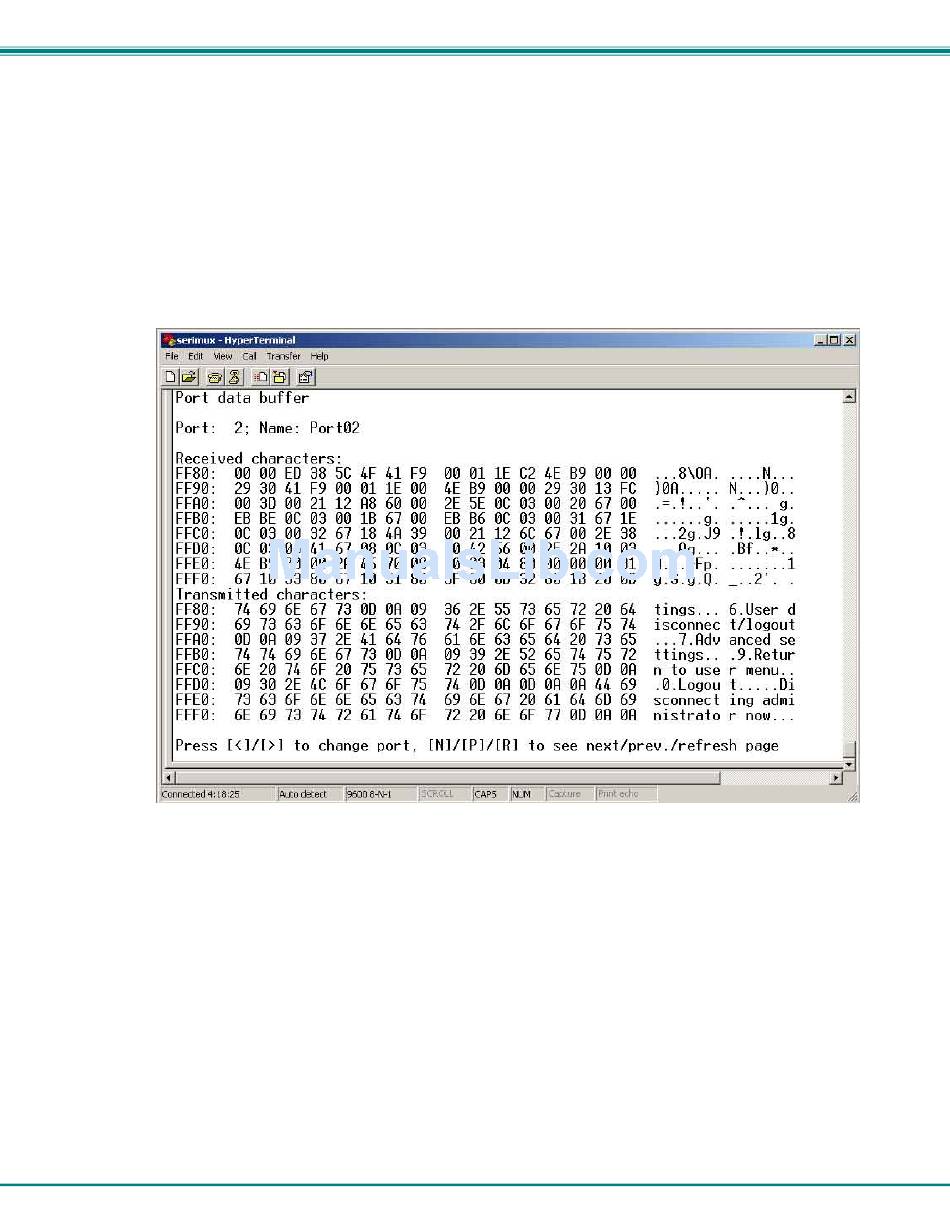

Figure 13- Port data buffer

Press [ P ] to see the previous (older) 128-character page information; press [ N ] to see the next (newer) 128-character page
information.
Up to 508 received characters and 508 transmitted characters (4 pages) can be inspected, for each port.
Press [>] (greater than symbol) or [<] (less than symbol) to change the current port.
Press [Esc] or [Space] to return to the "Port settings " menu.
FYI: Only the "ROOT" administrator is able to access the port data buffer.

3.1.3.4 Clear Port data buffer

From the "Port settings" menu, press [9] to clear the port data buffer. This selection will clear the entire buffer for data received
by or transmitted from the respective port.
19
