NTI RACKMUX-D17HR-N-SUSBHD4 RACKMOUNT DRAWER WITH QUAD SCREEN MULTIVIEWER

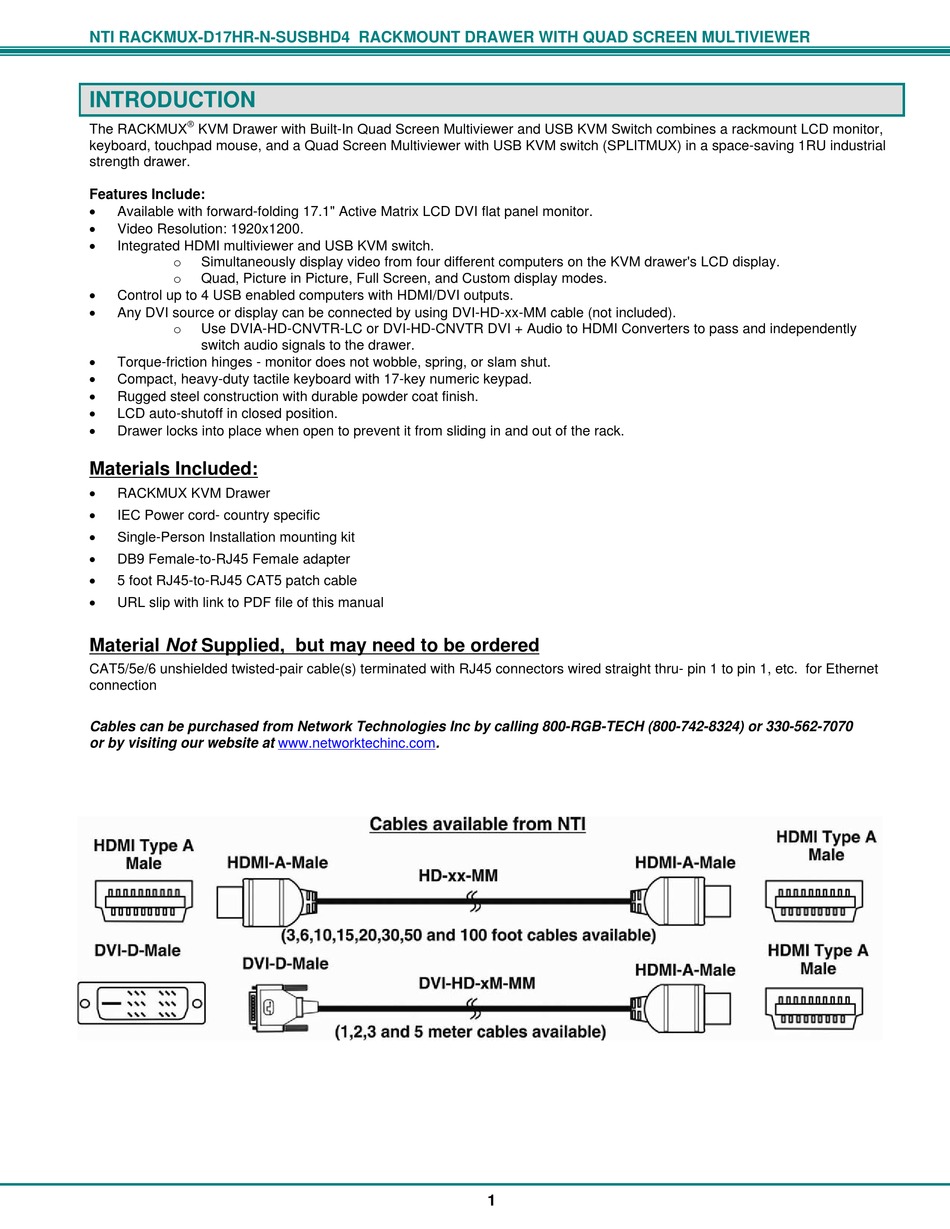

INTRODUCTION

®
The RACKMUX KVM Drawer with Built-In Quad Screen Multiviewer and USB KVM Switch combines a rackmount LCD monitor,
keyboard, touchpad mouse, and a Quad Screen Multiviewer with USB KVM switch (SPLITMUX) in a space-saving 1RU industrial
strength drawer.
Features Include:

Available with forward-folding 17.1" Active Matrix LCD DVI flat panel monitor.

Video Resolution: 1920x1200.

Integrated HDMI multiviewer and USB KVM switch.
Simultaneously display video from four different computers on the KVM drawer's LCD display.
o
Quad, Picture in Picture, Full Screen, and Custom display modes.
o

Control up to 4 USB enabled computers with HDMI/DVI outputs.

Any DVI source or display can be connected by using DVI-HD-xx-MM cable (not included).
Use DVIA-HD-CNVTR-LC or DVI-HD-CNVTR DVI + Audio to HDMI Converters to pass and independently
o
switch audio signals to the drawer.

Torque-friction hinges - monitor does not wobble, spring, or slam shut.

Compact, heavy-duty tactile keyboard with 17-key numeric keypad.

Rugged steel construction with durable powder coat finish.

LCD auto-shutoff in closed position.

Drawer locks into place when open to prevent it from sliding in and out of the rack.

Materials Included:


RACKMUX KVM Drawer

IEC Power cord- country specific

Single-Person Installation mounting kit

DB9 Female-to-RJ45 Female adapter

5 foot RJ45-to-RJ45 CAT5 patch cable

URL slip with link to PDF file of this manual

Material Not Supplied, but may need to be ordered

CAT5/5e/6 unshielded twisted-pair cable(s) terminated with RJ45 connectors wired straight thru- pin 1 to pin 1, etc. for Ethernet
connection
Cables can be purchased from Network Technologies Inc by calling 800-RGB-TECH (800-742-8324) or 330-562-7070
or by visiting our website at www.networktechinc.com.
1
