NTI RACK MOUNT CONSOLE TERMINAL WITH CONSOLE SWITCH
7.
Using the terminal program, send the binary firmware file using "1K Xmodem" protocol.
8.
After successful transmission the SERIMUX will automatically restart after few seconds. If not, either power down the
RACKMUX and power it back ON (or just press the "Sytem Reset" button (pg.30)) and press [Enter[.
If the firmware update failed or was interrupted for any reason, power cycle the RACKMUX (or press the "Sytem Reset" button
(pg.30)) and repeat the procedure beginning at step 4.

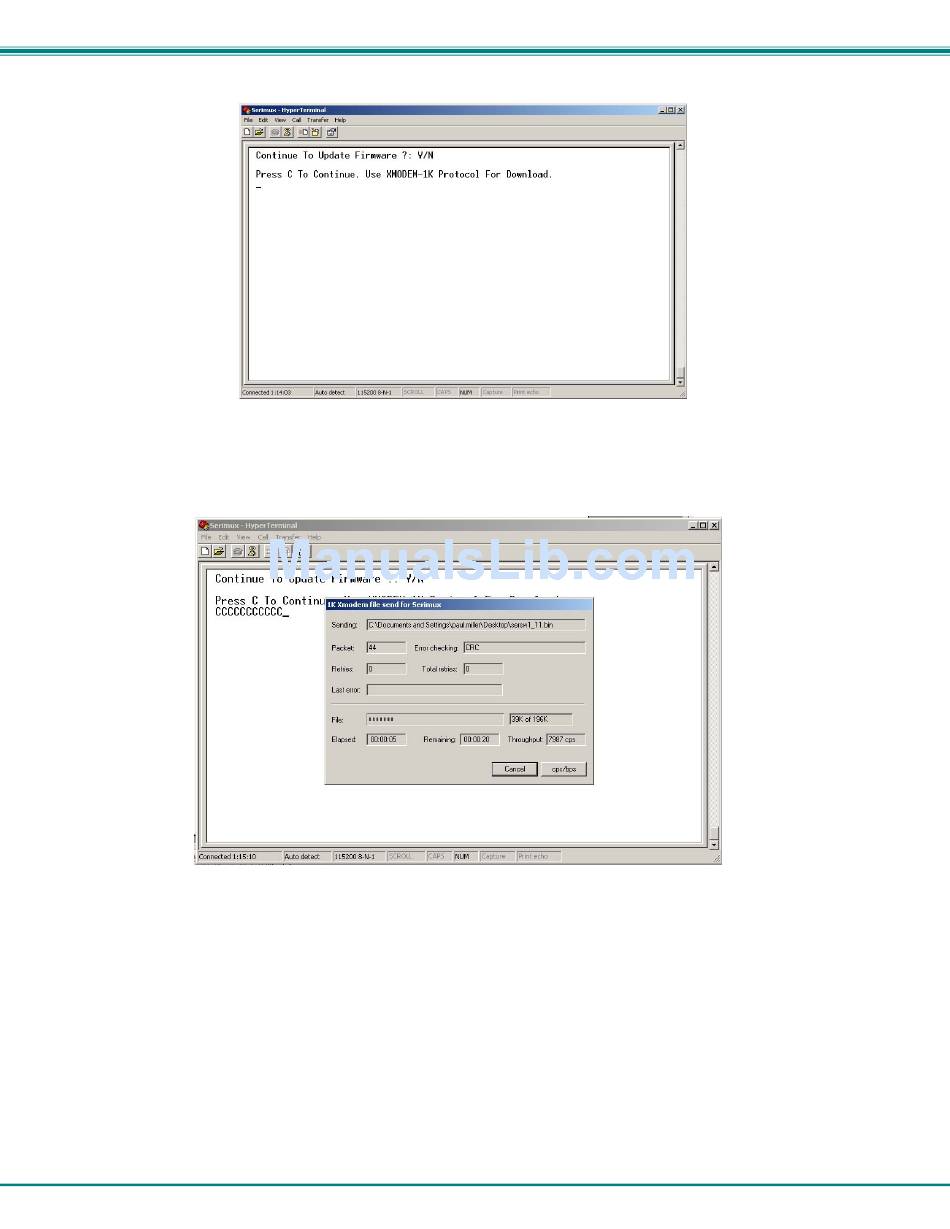

Figure 27- Last confirmation before firmware update
Figure 28- File transfer in progress
33
