NTI RACK MOUNT CONSOLE TERMINAL WITH CONSOLE SWITCH

5.5 Cable Adapters

The SERIMUX comes with four cable adapters. The following illustrations show cable adapter pin outs. Additional adapters can be
purchased from NTI.

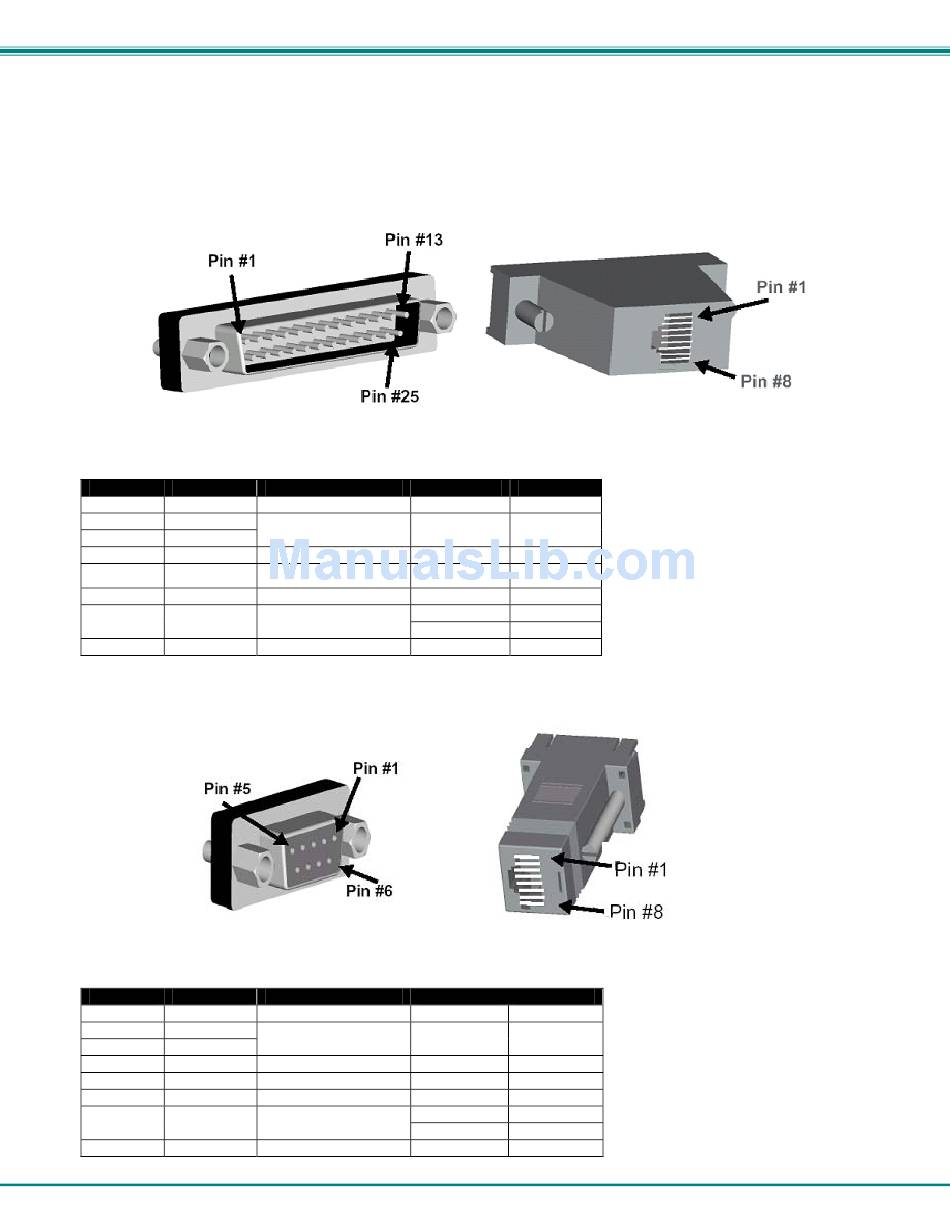

DB-25 Male Console Adapter (NTI P/N DB25M-RJ45F-T)
DB-25 Male to RJ45 Connector Pin Assignments
RJ45 Signal
1 CTS Connected to
2 DSR
Connected to
5 DCD
3 RxD Connected to
4 GND Connected to
6 TxD Connected to
7 DTR Connected to
8 RTS Connected to
DB-9 Female Console Adapter (NTI P/N DB9F-RJ45F)
DB-9 Female to RJ45 Pin Assignments
RJ45 Signal
1 CTS Connected to
2 DSR
Connected to
5 DCD
3 RxD Connected to
4 GND Connected to
6 TxD Connected to
7 DTR Connected to
8 RTS Connected to
DB-25M Signal
4 RTS
20 DTR
2 TxD
7 GND
3 RxD
6 DCD
8 DSR
5 CTS
DB-9F Signal
7 RTS
4 DTR
3 TxD
5 GND
2 RxD
1 DCD
6 DSR
8 CTS
