NTI RACKMUX Series Single-Person Installation Manual

RACKMUX-DRAWER
Single-Person Installation Manual
Your NTI RACKMUX Drawer was designed for easy installation by one person with a minimum of tools and effort. Follow the
simple steps below to quickly install your RACKMUX Drawer.
If you would like to see a video of this installation, go to any of our RACKMUX Drawer web pages and click on the "Single-Person
Installation Video" link in the "Additional Information" block near the top of the page, or go directly to
http://www.youtube.com/user/networktechinc

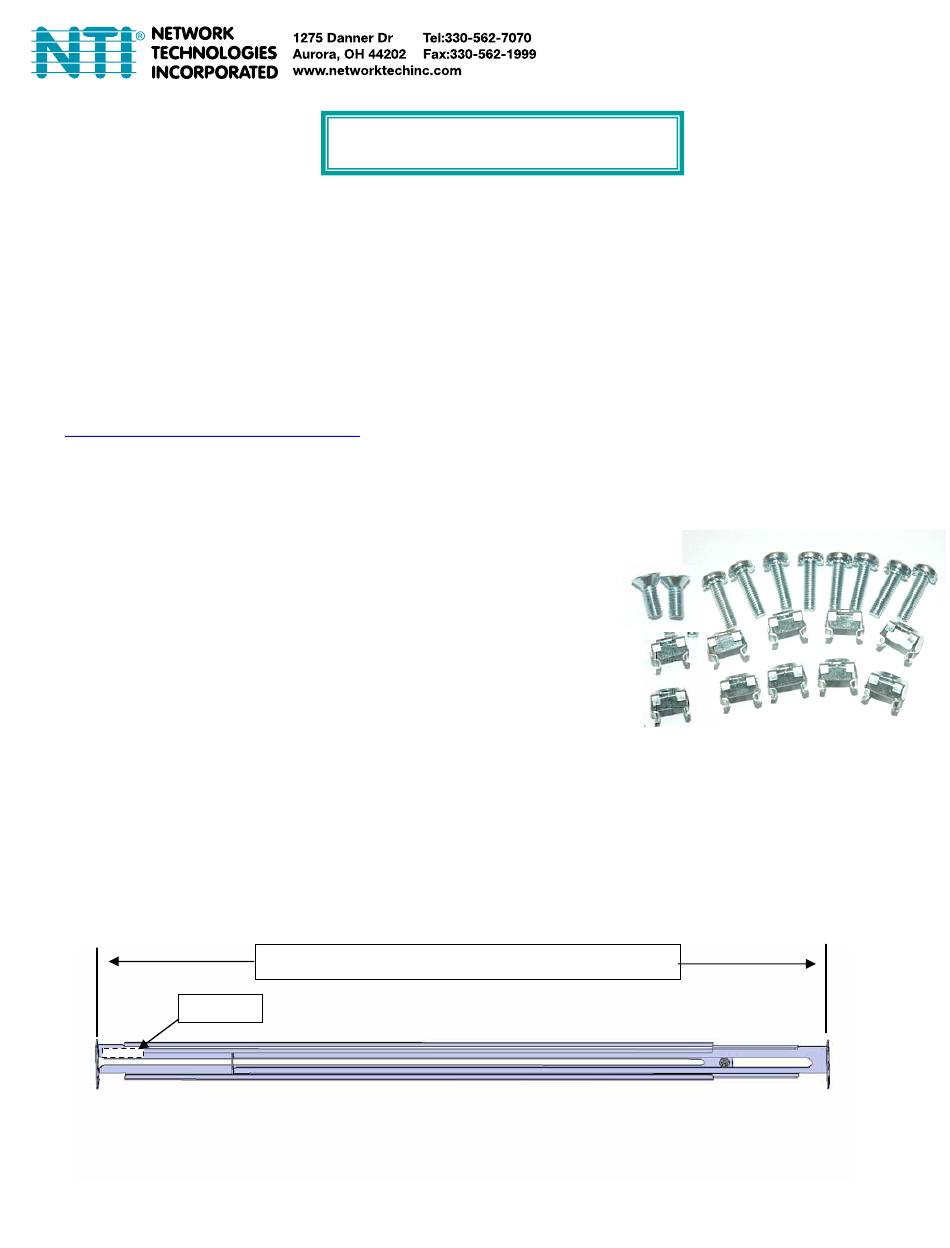

1. Locate and unpack the hardware bag.

model (see the manual that accompanied your RACKMUX drawer), including the following hardware unique to the Single-Person
hardware installation:
•
10- #10-32 cage nut
•
2- #10-32 x ½" flat-head machine screw
•
8- #10-32 x ¾" pan-head machine screw
To install the rails you will need only a tape measure and Phillips screwdriver.
2. Unpack the left and right rail assemblies. Each are labeled "Right Front" and "Left Front" to indicate their intended position and
orientation. Extend each rail assembly to the dimension required for your rack. Rail assemblies are adjustable to fit within a rack
between 24" and 40" in depth.
Labeled
XXXXX
RACKMUX
.
Your hardware bag will include all items necessary to install the specific RACKMUX
Rail assemblies are adjustable in length from 24" to 40".
®
Series
1
