Appendix C
C. Rail Kit Installation
If the chassis for your server does not have pre-installed rail slides, SGI provides a rail kit. Use the
following steps to install the rail kit.
1. Attach the slide rails to the racks as shown in Figure C-1.
1
2
3

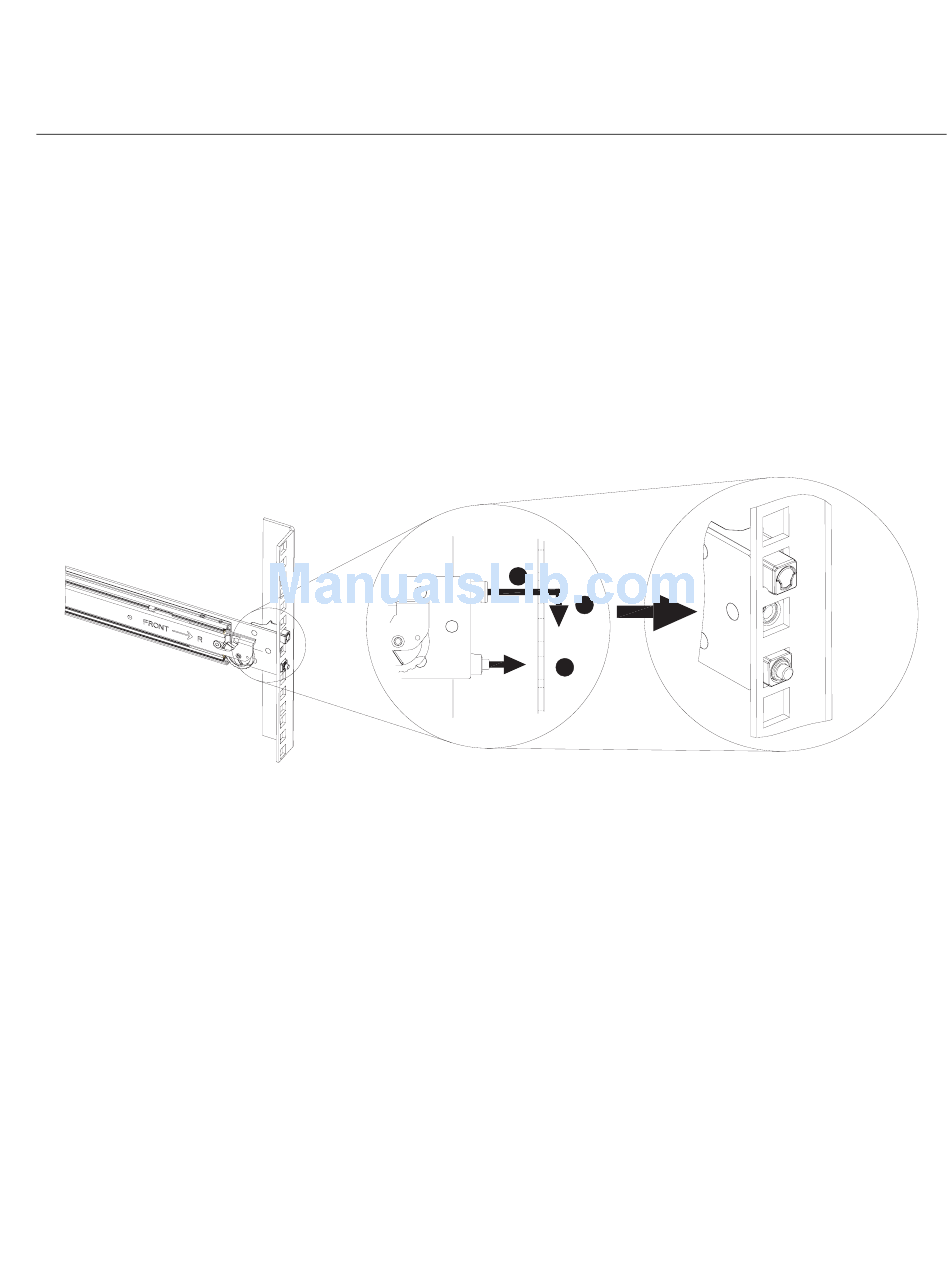

Figure C-1 Attaching Rail Slides to Rack
007-5900-001 51
