Removing and Installing the Front Fan Bezel

Removing the Front Fan Bezel

007-5900-001
As shown in Figure 4-1, 7 of the 11 system fans are located at the front of the chassis and are
covered by a bezel.
Follow these steps to remove the front fan bezel:
1. Loosen the two screws on left and right ends.
See A in Figure 4-1.
2. Remove the front fan bezel from the chassis.
See B in Figure 4-1.

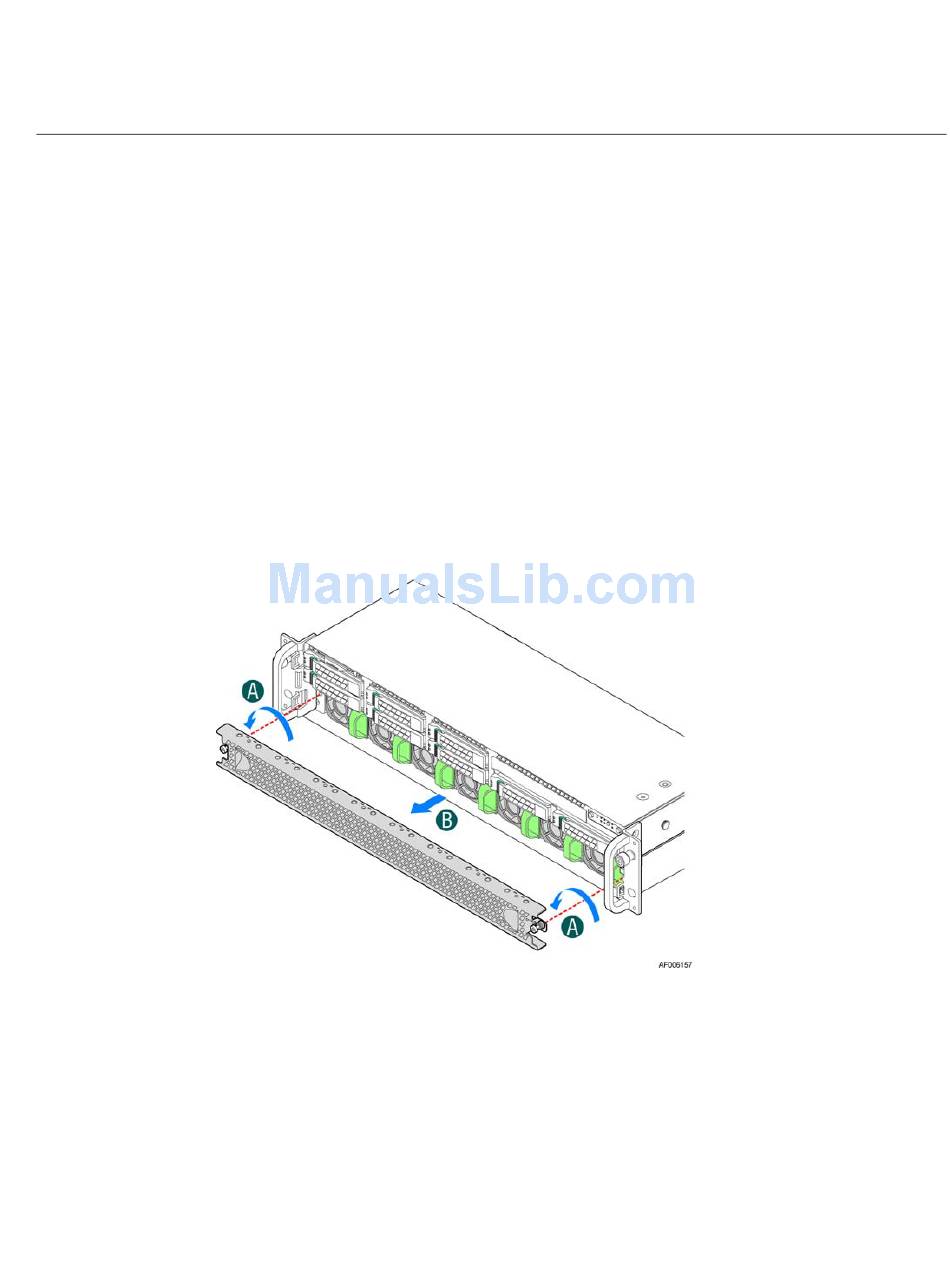

Figure 4-1
Removing the Front Fan Bezel
