007-5900-001
3. Remove the four screws securing the plastic drive blank from the HDD carrier.
See C in Figure 4-10.
4. Remove the plastic drive blank from the HDD carrier.
See D in Figure 4-10.

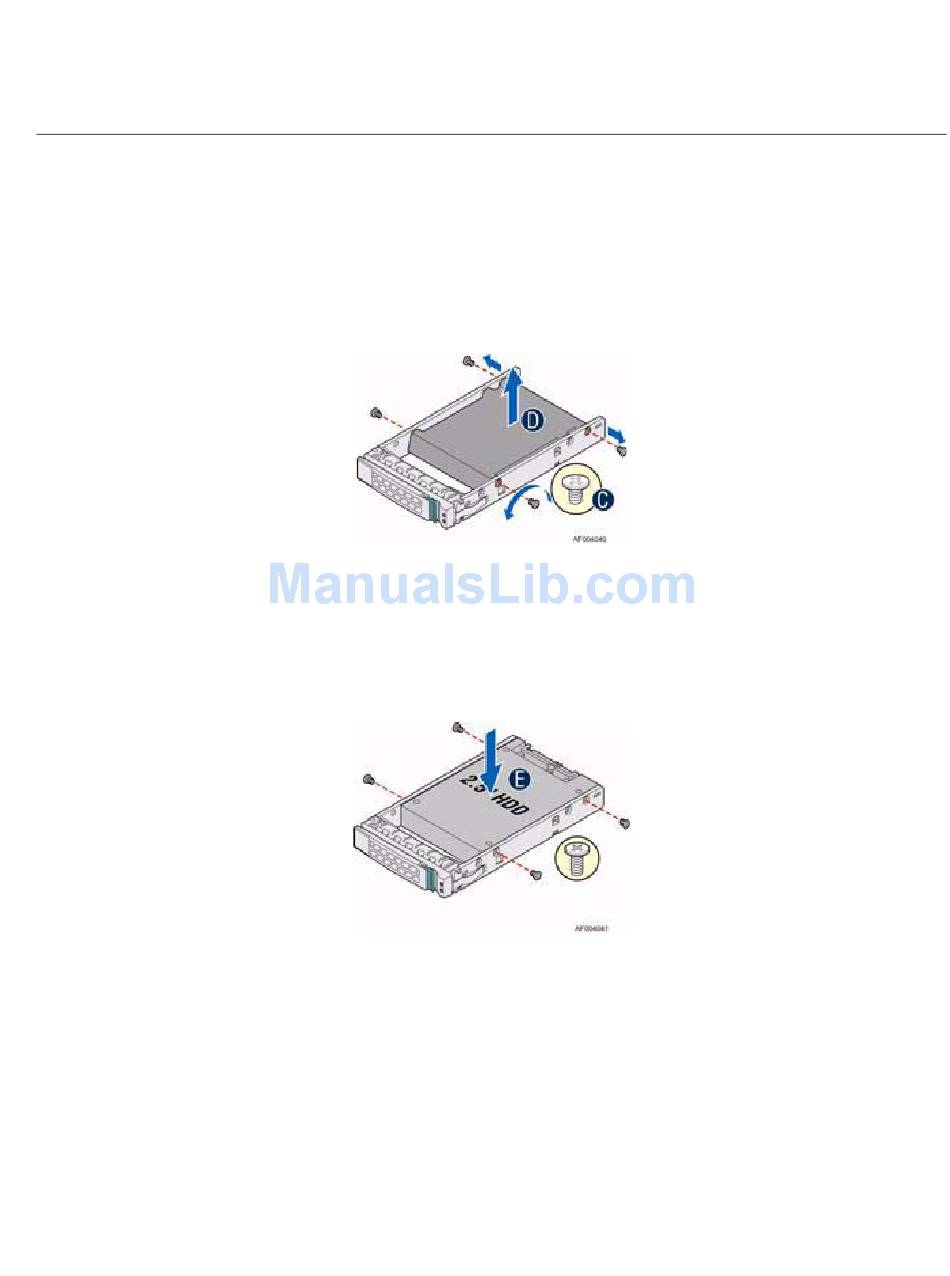

Figure 4-10 Removing Drive Blank
5. Install the hard disk drive using the four screws and ensure the connector end of the drive
matches the backplane connector.
See E in Figure 4-11.
Figure 4-11
Inserting Drive into Carrier
Installing Hot-Swap Hard Drives
33
