1: System Overview
Server Components
Hard Disk Drive (HDD) Bays and Front Panel
4
This section describes the server components pertinent to monitoring and maintaining your server.
There are also quick reference labels inside of the chassis cover to assist you in identifying
components.

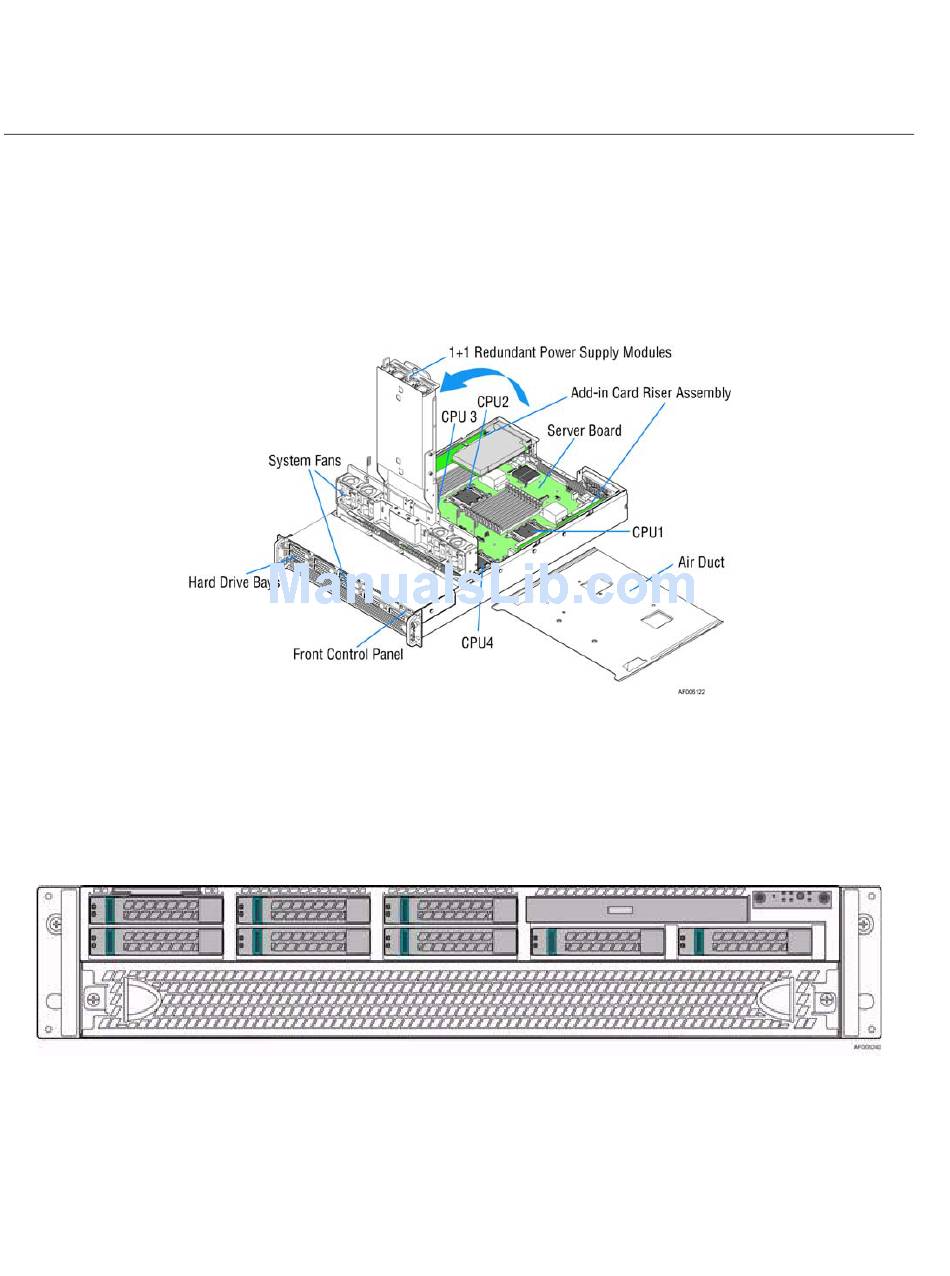

Figure 1-2
provides an overhead view of the server with the top cover removed.
Figure 1-2
Overhead View of Server with the Top Cover Removed
The UV 20 server supports the 8 x 2.5"configuration of hard disk drives.
8-bay configuration.
Figure 1-3
Hard Disk Drive Bays
Figure 1-3
shows the
007-5900-001
