4: Chassis Maintenance
34
6. With the lever open, insert the hard disk drive assembly into the chassis and push in the lever
to lock it into place.
See F in
Figure
4-12.

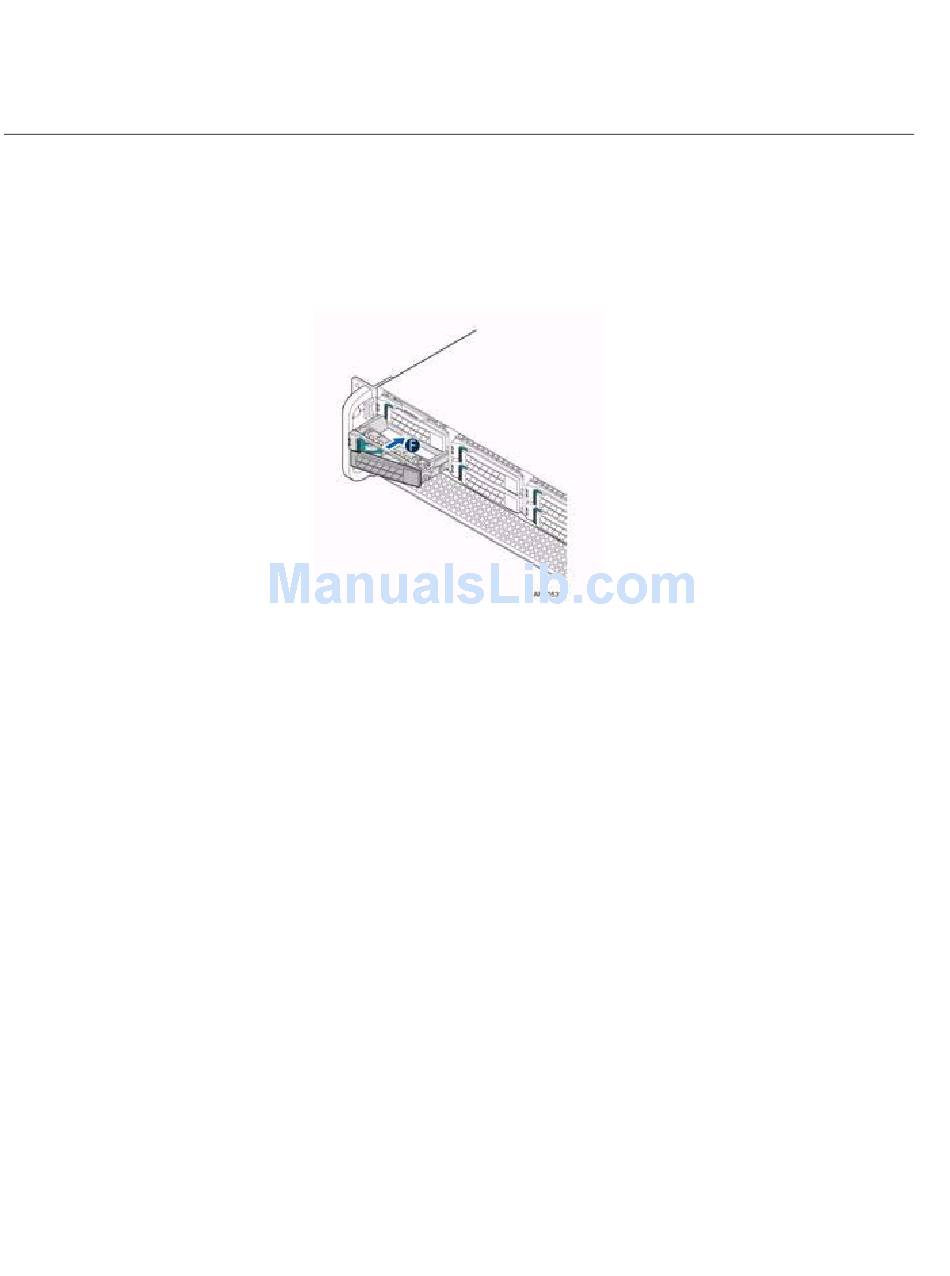

Figure 4-12
Inserting HDD Carrier into Chassis
