Figure 4-19 Installing The Inner Members To The Chassis; Figure 4-20 Installing The Chassis In The Rack - Silicon Graphics UV 20 System User's Manual

007-5900-001

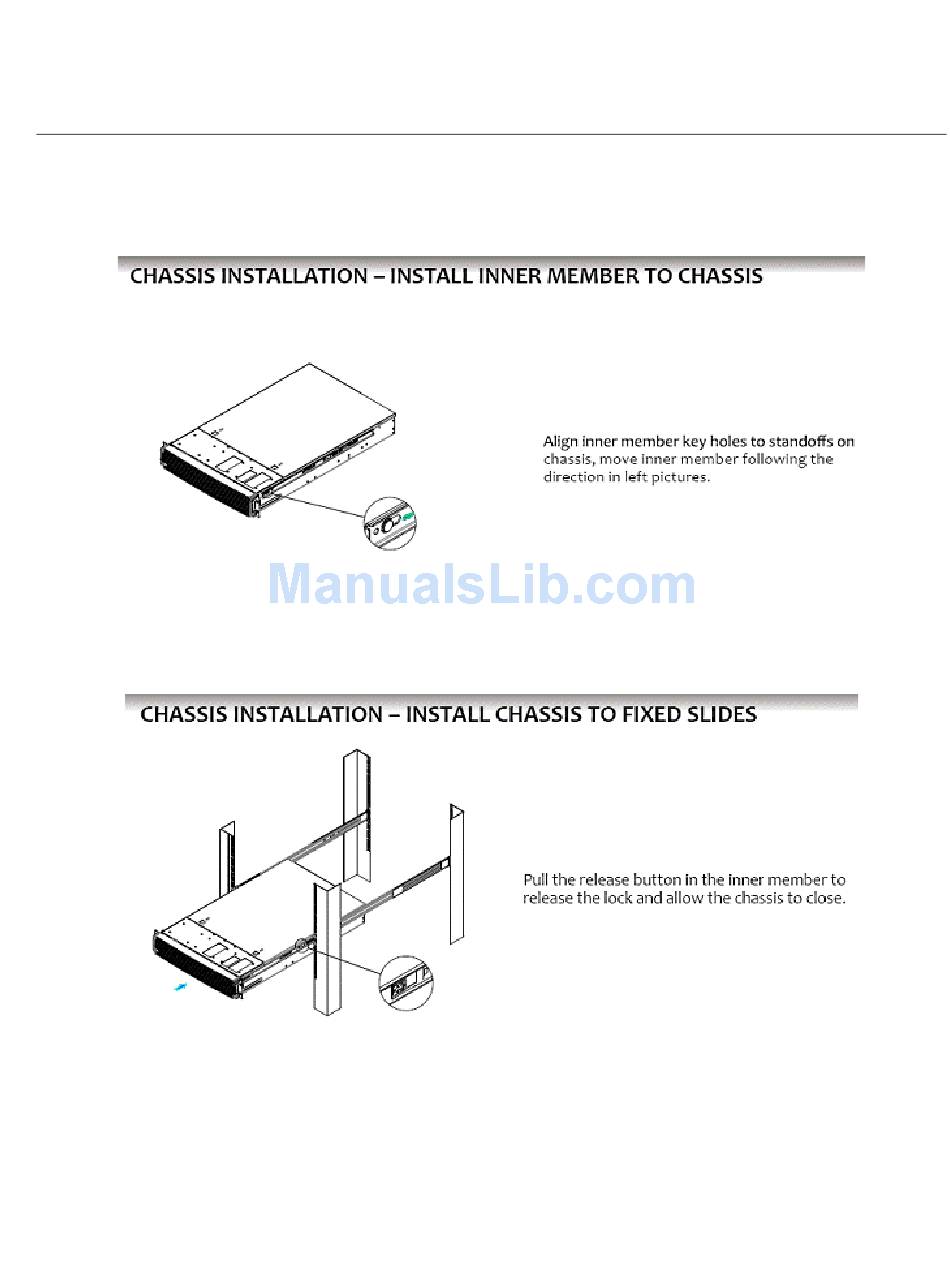

3. Install the inner members to the chassis as shown in
Figure 4-19
Installing the Inner Members to the Chassis
4. Install the chassis to the fixed slides as shown in
Figure 4-20
Installing the Chassis in the Rack
Mounting the Chassis to a Rack
Figure 4-19.
Figure 4-20.
41
