Replacing the Power Supply Modules

The system is equipped with two power supply modules for redundancy. They are hot-swappable.

Note: A server configured with multiple GPGPU cards may not be configured with redundant

power supplies. In this case, the power supplies are not hot-swappable.

To remove the power supply modules, use the following steps:

As shown in

Figure

4-7, push the green latch in the direction shown while pulling the

module out of the chassis by the handle.

2. Repeat step 1 to remove the second power supply module.

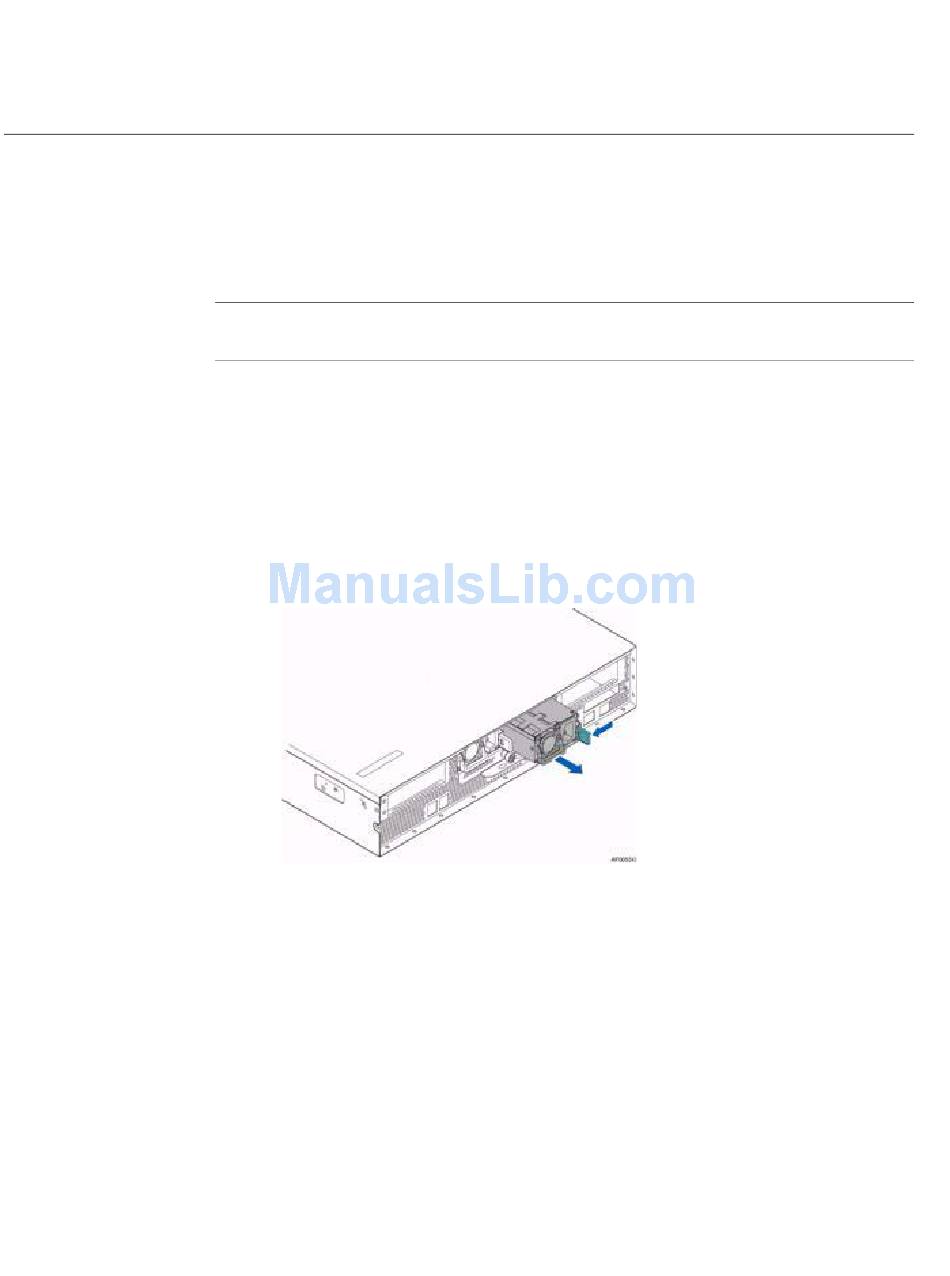

Figure 4-7

Removing a Power Supply Module

007-5900-001
