2.2.2.2 V2 Speaker with Alert Strobe
In Figure
programmed to blink and drive an Alert Strobe. This strobe may also be addressed from a separate
Unified Communication (UC) server.
Alert Strobe
Operations Guide
2-8, when the V2 Speaker is called from a remote phone, the relay on the speaker can be

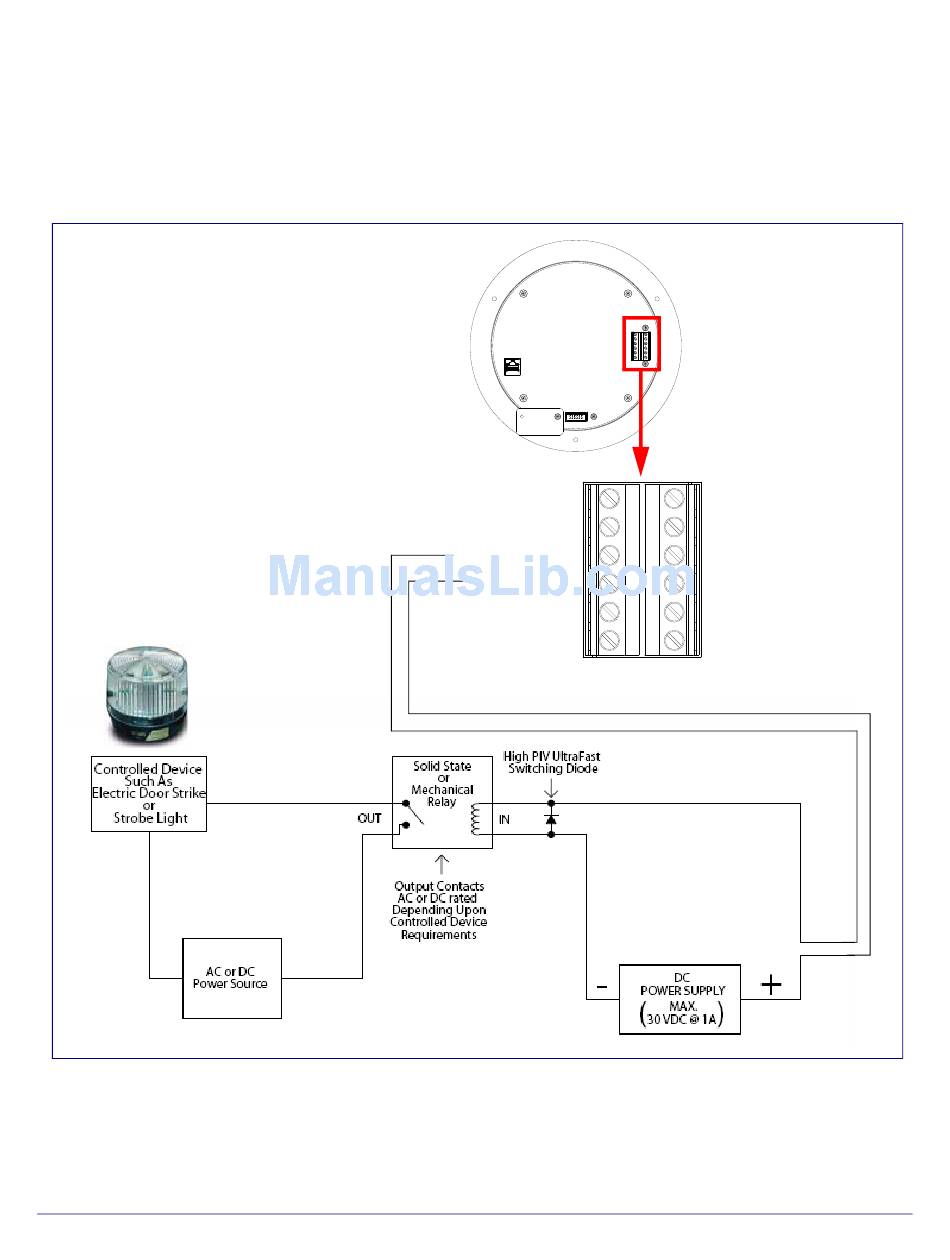

Figure 2-8. V2 Speaker with Alert Strobe
Speaker
BUTTON-SENSE
930274C
POWER IN +
(+12VDC 500mA)
POWER GND
RELAY COM
RELAY NO
+5 VDC
J10
Installing the VoIP V2 Speaker
Device Configuration
AUX SPEAKER (-)
AUX SPEAKER (+)
GND
LINE OUT GND
LINE OUT (+)
BUTTON LED (-)
J9
