CyberData 011102 series Operation Manual
  1. Manuals
  2. Brands
  3. CyberData Manuals
  4. Speakers
  5. 011102 series
  6. Operation manual

CyberData 011102 series Operation Manual

Voip singlewire-enabled ceiling speaker
Hide thumbs Also See for 011102 series:
Table of Contents

Advertisement

Quick Links

Download this manual

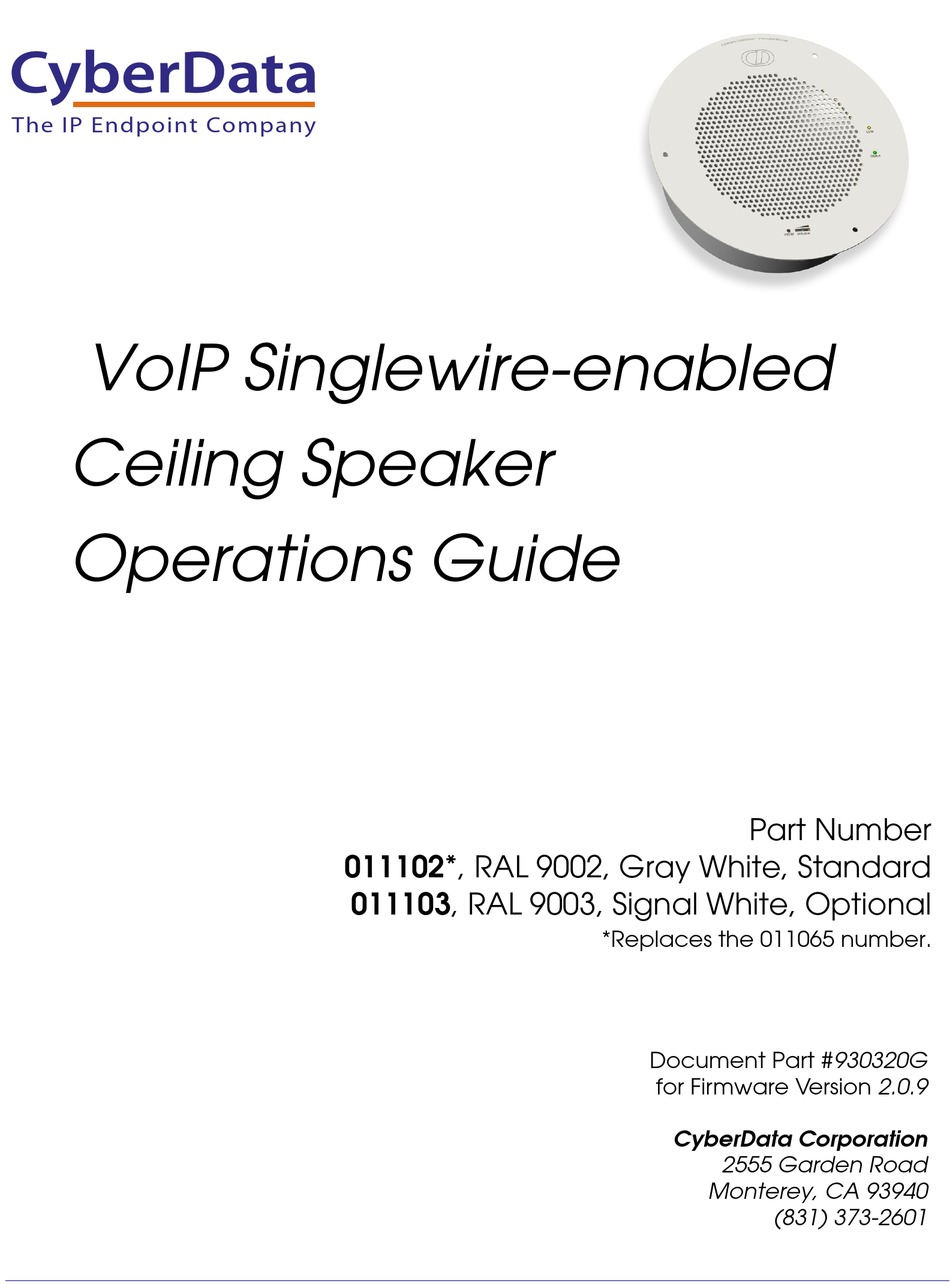

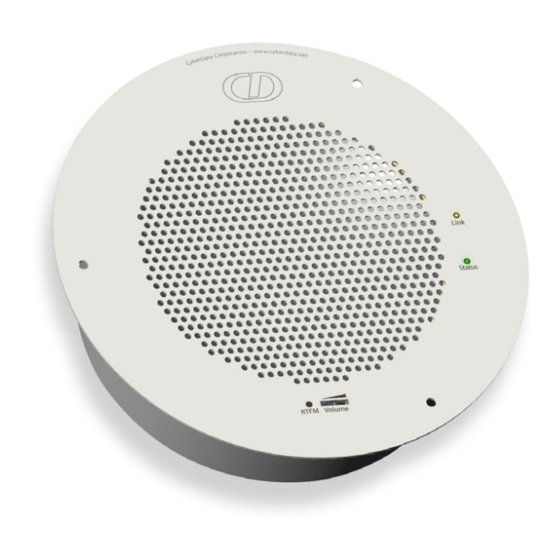

The IP Endpoint Company
VoIP Singlewire-enabled
Ceiling Speaker
Operations Guide
Part Number
011102*, RAL 9002, Gray White, Standard
011103, RAL 9003, Signal White, Optional
*Replaces the 011065 number.
Document Part #930320G
for Firmware Version 2.0.9
CyberData Corporation
2555 Garden Road
Monterey, CA 93940
(831) 373-2601
