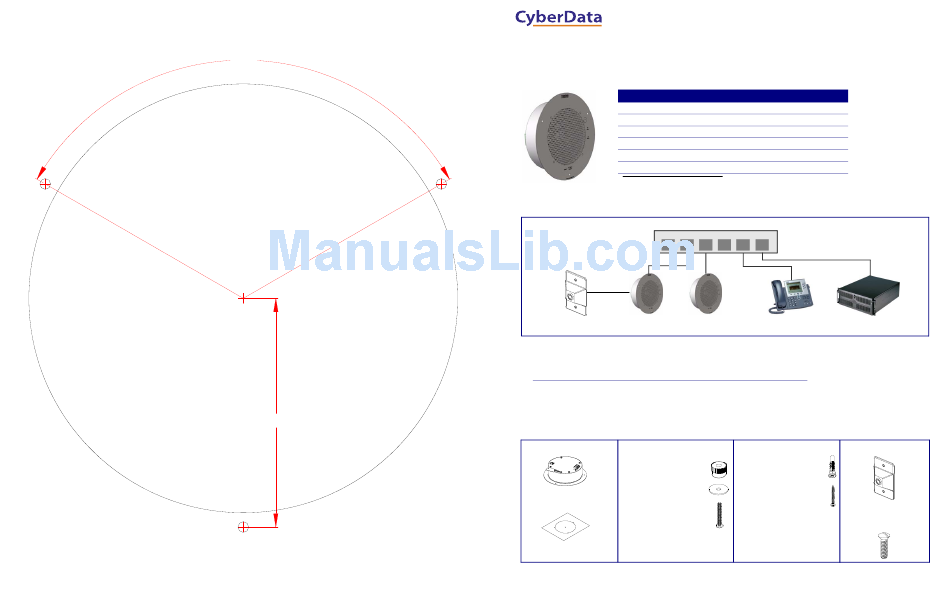

Mounting Template
Speaker Hole Diameter:
Screw Hole Diameter:
Dimensions are in inches [millimeter]
© 2012, CyberData Corporation, ALL RIGHTS RESERVED
120°
VoIP Speaker
7.50 [190.5]
0.1875 [4.75]
4.00 [101.6]
930467B
Quick Reference
Installation Quick Reference
The IP Endpoint Company
Push-to-Talk V2 Ceiling Speaker
011180, RAL 9002, Gray White, Standard
011181, RAL 9003, Signal White, Optional
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Typical System Installation
802.3af Compliant Ethernet Switch
1
2
Remote Call Button
IP Talkback
IP Speaker
Speaker
Getting Started
• Download the Push-to-Talk V2 Ceiling Speaker Operations Guide PDF file from the Documentation page at:
http://www.cyberdata.net/products/voip/digitalanalog/ceilingspkr2ptt/docs.html
• Create a plan for the locations of your speakers.
• Prior to installation, consult local building and electrical code requirements.
Parts
(1) Speaker Assembly
(1) Drop Ceiling Mounting Kit
(3) #8 Nylon Thumb Nuts
(3) #8 Fender Washers
(1) Template for Speaker
and Screw Holes*
(3) 8-32 x 1 1/4" Mounting
Screws
* See the last page
of this document
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
3
4
5
6
IP Phone
IP PBX Server
(1) Drywall Mounting Kit
(1) Call Button Assembly
(3) Plastic Ribbed Anchors
(3) #8 Sheet Metal Screws
(1) Wall Mounting Kit
(2) Mounting screws
