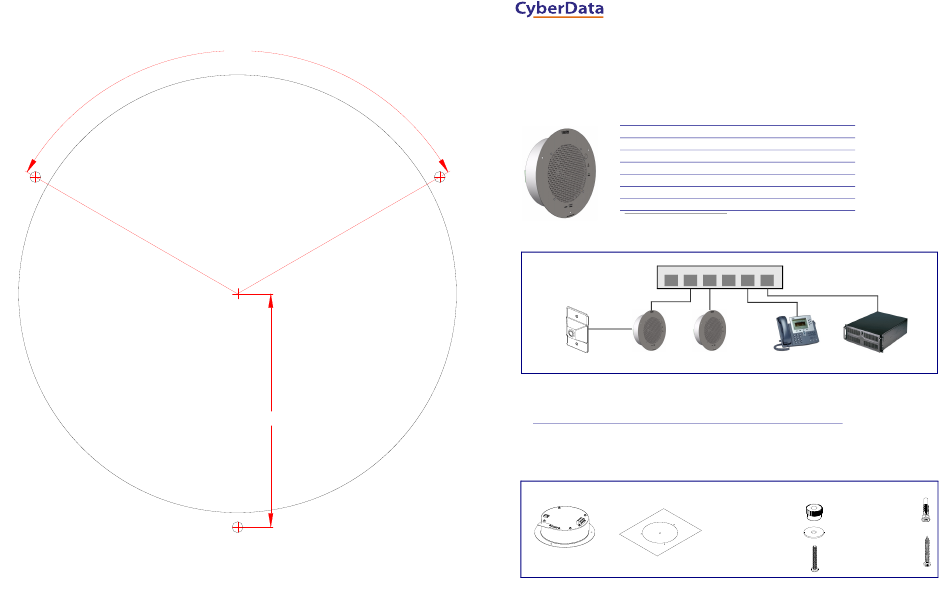

CyberData 011182 Installation Quick Reference

Mounting Template
Speaker Hole Diameter:
Screw Hole Diameter:
Dimensions are in inches [millimeter]
© 2015, CyberData Corporation, ALL RIGHTS RESERVED
120°
VoIP Speaker
7.50 [190.5]
0.1875 [4.75]
4.00 [101.6]
930462C
The IP Endpoint Company
The Singlewire-enabled Push-to-Talk V2 Ceiling Speaker is compatible with InformaCast Version 8.1 and higher.
Typical System Installation
Remote Call Button
Getting Started
• Download the Singlewire-enabled Push-to-Talk V2 Ceiling Speaker Operations Guide PDF file from the Documentation
page at:
http://www.cyberdata.net/products/voip/digitalanalog/singlewirespeakerptt/docs.html
• Create a plan for the locations of your speakers.
• Prior to installation, consult local building and electrical code requirements.
Parts
(1) Speaker Assembly
Quick Reference Quick Reference
Installation Quick Reference
Singlewire-enabled Push-to-Talk
V2 Ceiling Speaker
011182, RAL 9002, Gray White, Standard
011183, RAL 9003, Signal White, Optional
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
802.3af Compliant Ethernet Switch
1 2 3 4 5
IP Talkback IP Speaker
Speaker
(1) Template for Speaker (1) Drop Ceiling Mounting Kit
and Screw Holes*
(3) #8 Nylon Thumb Nuts
(3) #8 Fender Washers
(3) 8-32 x 1 1/4" Mounting
Screws
* See the last page of this document
930462C
6
IP Phone InformaCast Server
(1) Drywall Mounting Kit
(3) Plastic Ribbed Anchors
(3) #8 Sheet Metal Screws
