CDM-840 Remote Router

Ethernet Management

5.4.4.5

The Status pages (Figure 5-19 through Figure 5-23) provide the user with status, event logging,

and operational statistics windows. Click the Statistics or Monitor tab to continue.

5.4.4.5.1

Status | Statistics pages

While the Compression tab is selectable, this feature is not available in this initial

product release. The Compression page is therefore non-functional.

IMPORTANT

Click the Traffic, Router, or QoS tab to continue.

5.4.4.5.1.1

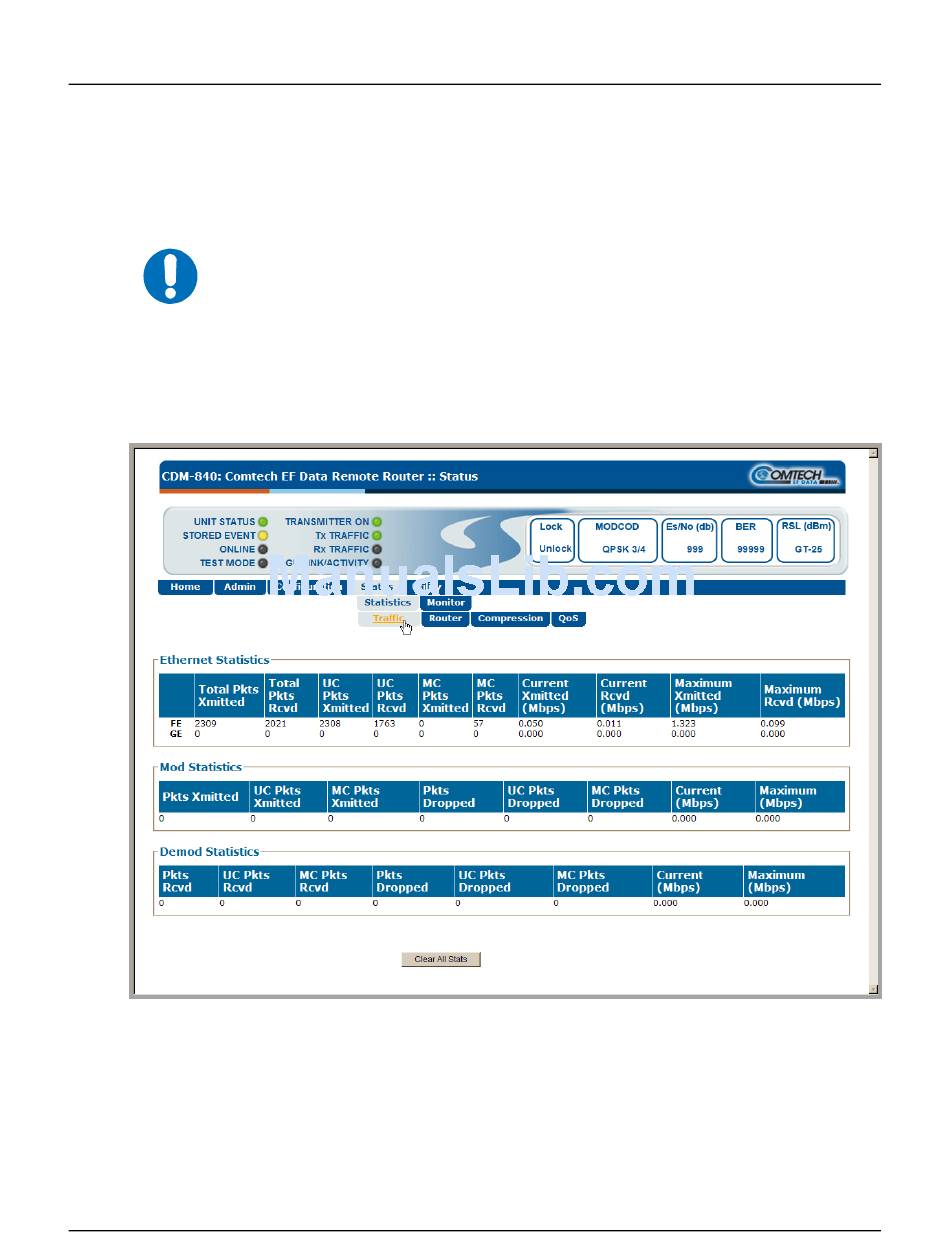

The 'Status | Statistics | Traffic' page (Figure 5-19) provides the user with read-only, abridged

status windows pertaining to the basic operational statistics for the Ethernet, Modulator, and

Demodulator traffic.

5–30

Revision 0

MN-CDM840
